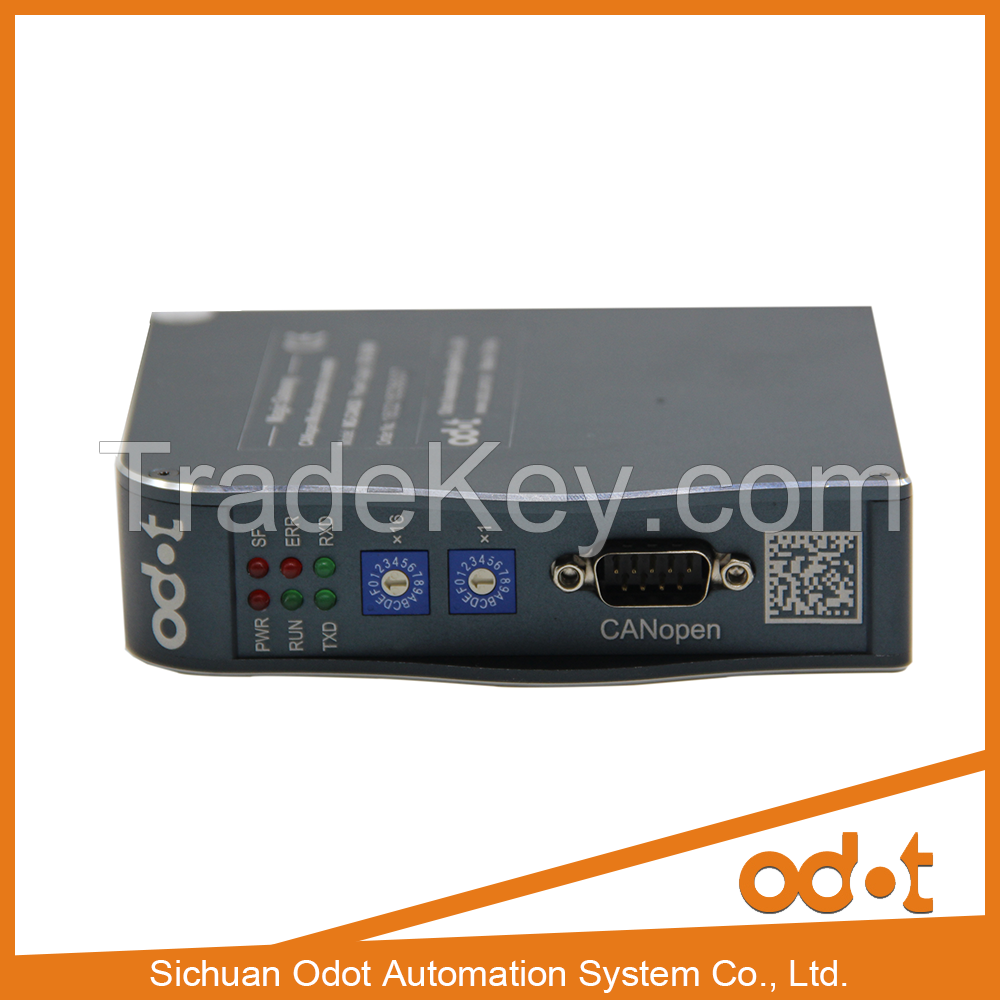

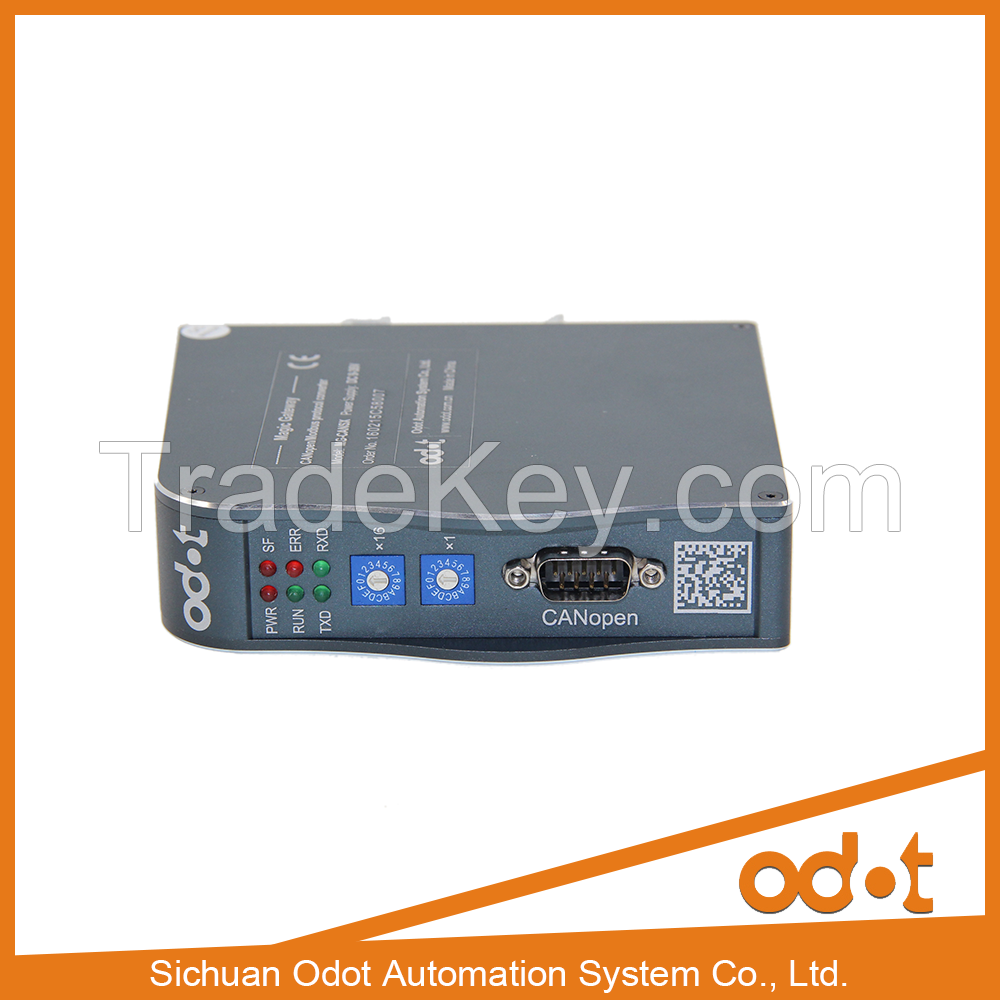

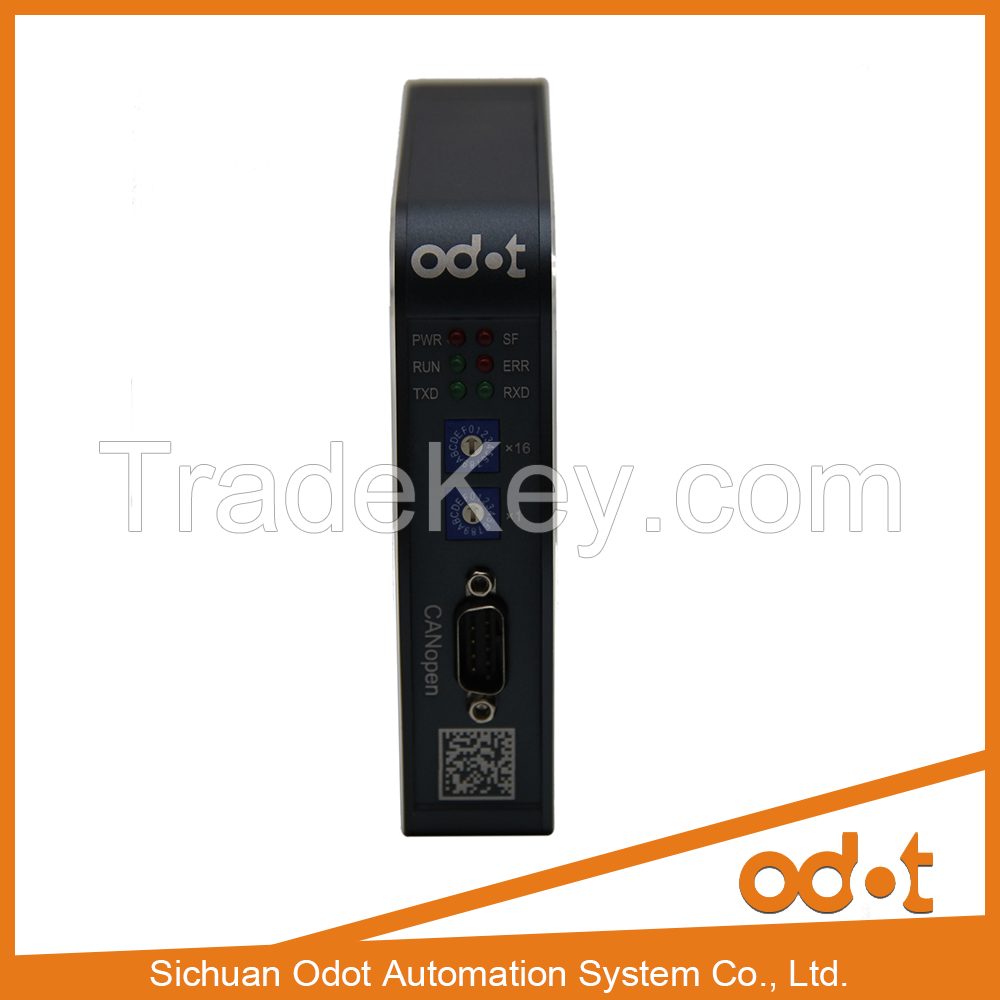

MG-CANSX standard Modbus RTU/ASCII to CANopen Protocol Converter

MG-CANSX is a solution that provides a communication betweenModbus RTU/ASCII andCANopen protocols. It serves as host on Modbus network and can connect to the standard Modbus RTU/ASCII slave devices as long as it has RS**5 interface, such as I/O module,electric power meter,frequency changer,soft starter, etc.

It works as slave on CANopen network, supports the PDO and SDO data transmission. It allows to mapping thedata in theModbus buffer area to the CANopen PDO, then makes the Modbus network and the CANopen network connected seamlessly.

  1) Protocol converter is host on Modbus network and as slave inCANopen network. It support data communication between multiple Modbus slave and CANopen host devices.

  2) Complies withDS**1 V4.*2 standard,supportsNMT,PDO,SDO,Heartbeat.

  3) Supports 8 bytes TPDO,8 bytes RPDO, max. 4 bytes for fast Download SDO and speed Upload SDO.

  4) Supports *0 TODO and *0 RPDO.

  5) SupportsCAN baud rate:*0K~1Mbps.

  6) Supports serial port baud rate:***0~*****0bps.

  7) ***6V wide range,Reverse connection protection.

  8) Adopts the mapping model,the data real-time transmission is available.

  9) RTU andASCII modes is optional, well-adapted.

 *0) Built-interminal resister and bias circuit on RS**5, with short circuit protection function,strong stability.

 *1) Data packets sendingtime can be adjusted freely, usingmoreflexible.

 *2) EMC complies toEN ****2:***0 & EN****4:***0.

4.Main Technical Parameters
