Miniature circuit breakers are mechanical
switching devices able to switch, conduct and switch-off the
current under normal conditions, and able to switch, conduct and
automatically switch-off the current under abnormal circuit
conditions, such as short circuit.
Miniature circuit breakers are suitable for
protection from overload and short circuit. Method of
connection: for AC MCBs optional, the and output terminals
can be changed.
● Standard: IEC60947
● Pole No.: 1P, 2P, 3P, 4P
● Rated voltage: 240/415V AC
● Rated current (A): 63, 80, 100
● Rated short-circuit capacity (Icn): 10kA
● Rated frequency:50/60Hz
● Rated impulse withstand voltage:6.2kV
● Electro-mechanical endurance:4000
● Contact position indication
● Connection terminal:
Screw terminal
Pillar terminal with clamp
● Connection capacity: rigid conductor up to 50mm2
● Installation:
On symmetrical DIN rail 35mm
Panel mounting

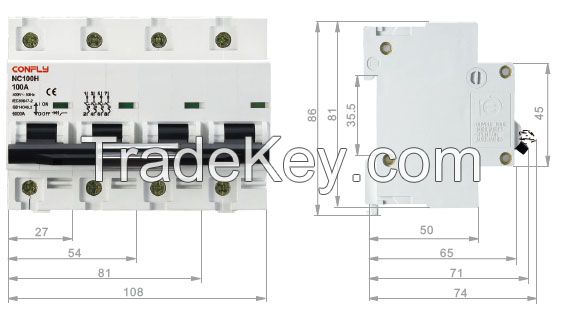

Overall & Installation
Dimensions
