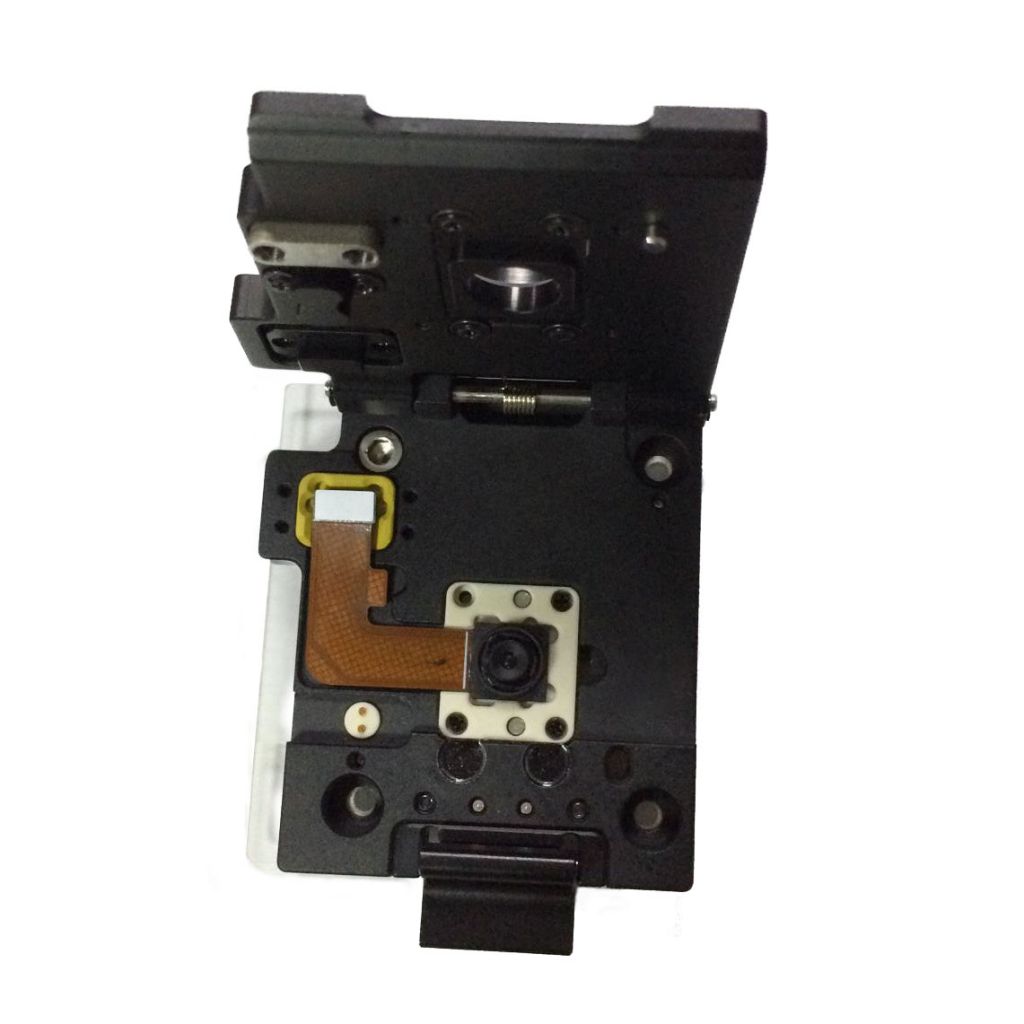

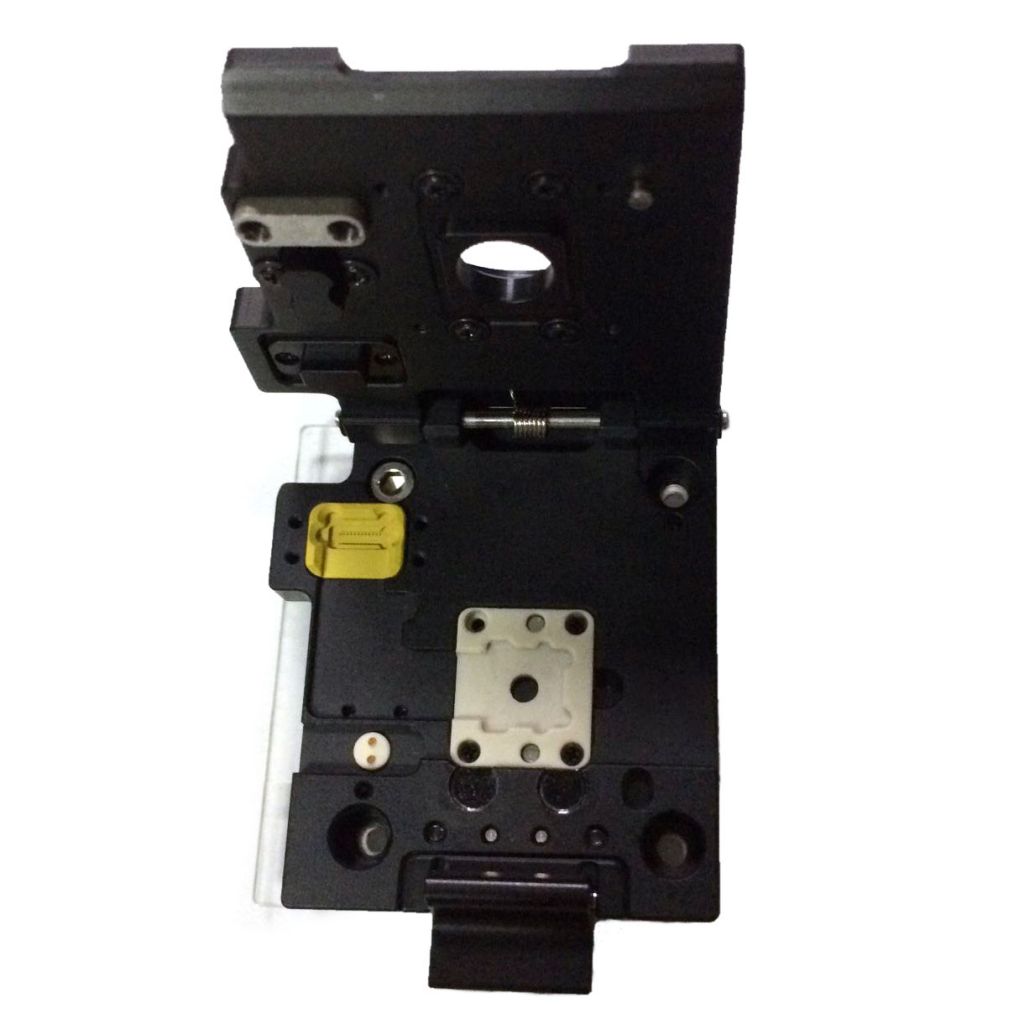

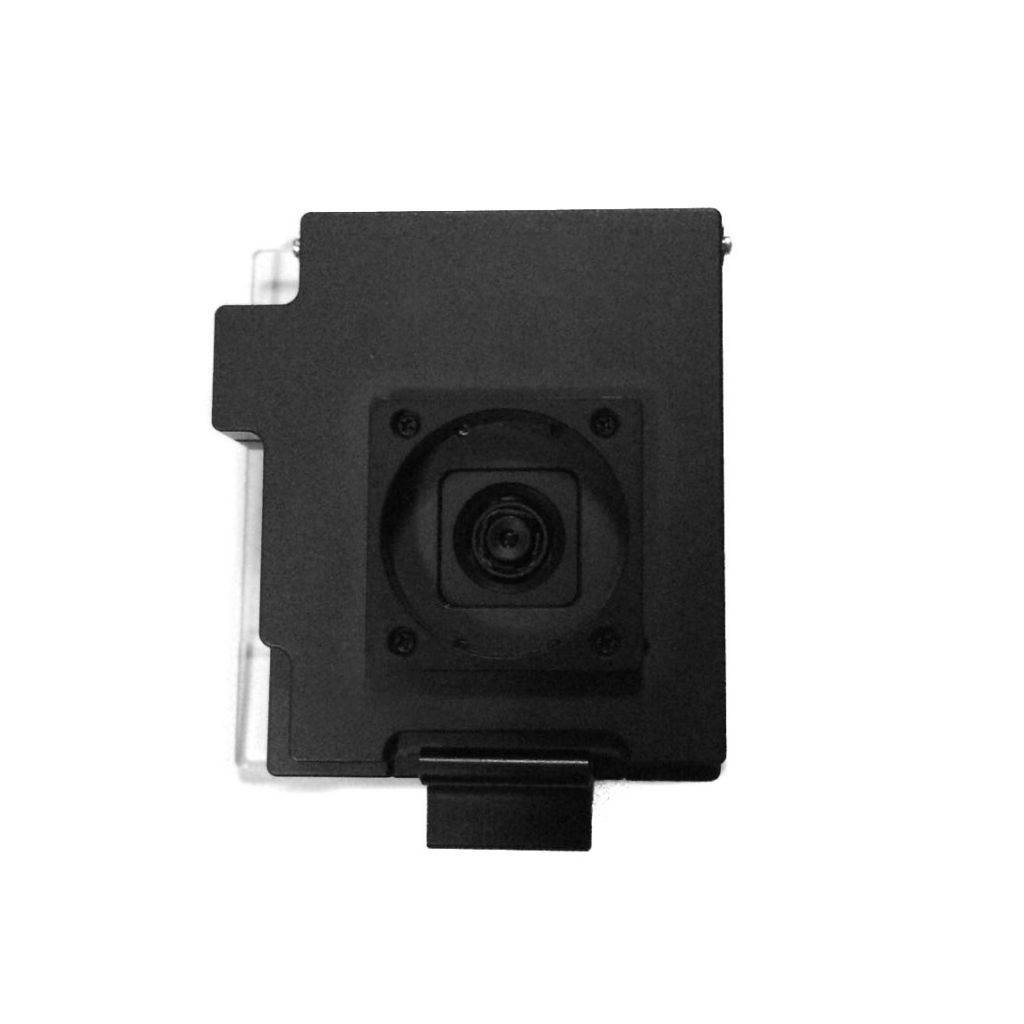

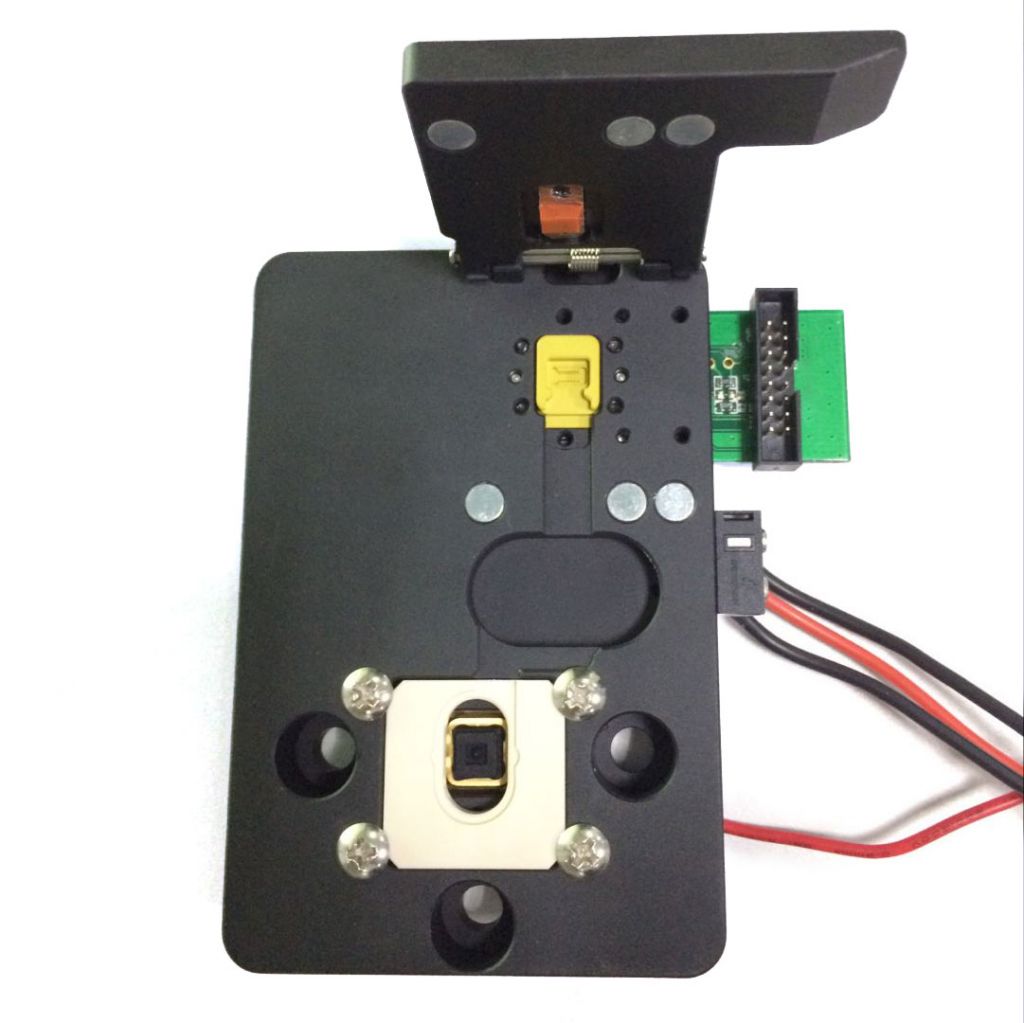

Module Test Fixture/Jig

Product Description

Module Fixture:

• Design according to customer's requirements
• Use on auto or semi-auto test eqiupments and handler.
• Pitch range from 0.*0mm and above.
• Pin amount: 2 and above.
• Key material: Peek,Torlon,PPS,PEI.etc
• Contact with top pogo pin

• Design according to customer's requirements.
• ​High quality and high accuracy.
• Offer timely after-sales service.
• Offer on-site assamble and service.
• Different structure design.
• Module type including: CMOS module, Fingerprint sensor, FPC connector, MCM type, Wifi module, Bluetooth module,etc

• Lid&house material:                             AL
• Insulation material:                            PPS,PEI,PeeK,Torlon
• Contact material:                               POGO pin(spring probe),silicone rubber
• Contact length:                                 Min2.5mm,Max7.2mm
• Contact rated current:                          Max 6.2A
• Contact temperature rating:                     **0 - ***0℃
• Contact preload:                                0.*5mm,0.2mm,0.*5mm(optional)
• Contact force:                                  Min 6gf, Max *5gf
• DC resistace:                                   Min 0.1ohm, Max**0mohm
• Life span:                                      Min *0k cycles, Max **0k cycles
• Contact application pitch:                      Min 0.*7mm
• Contact material:                               top/bottomplunger: Becu/Au plated
