PAC drier machine

Product Description

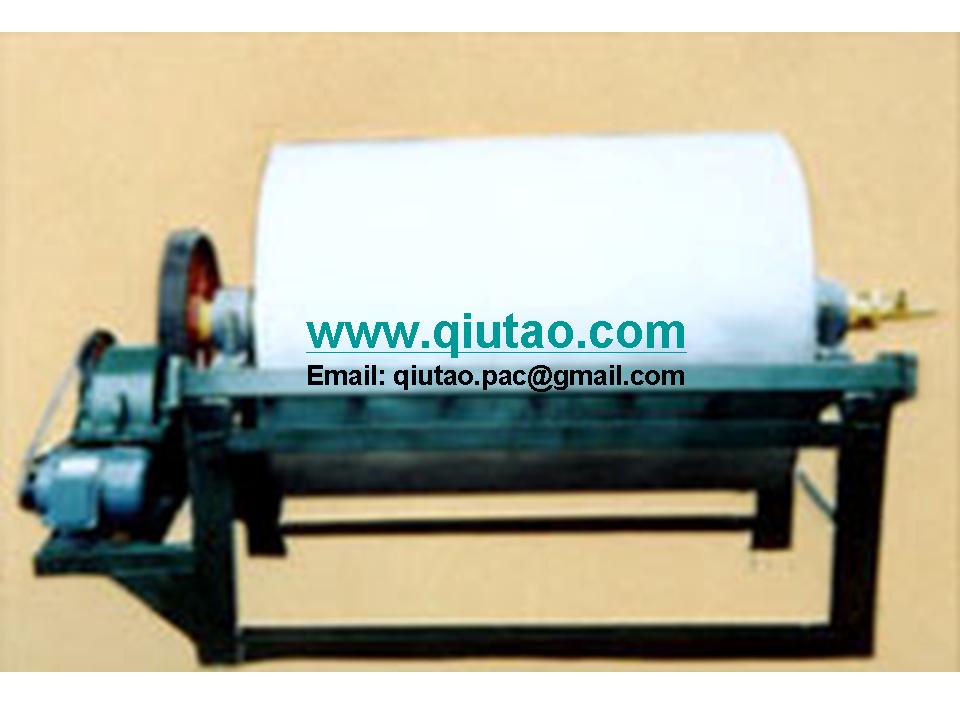

Name: Rolling Drum Drier Machine 1/ Working Methods: Rolling drum drier machine is heated inside and the drying process is accomplished by the continuous heat conducted from inside. There are one material container set under the drum. The rolling drum take from the bottom container some certain original material which is sticked on the outer surface in film form, which then be heated and dried by the heat conducted from inside. The moisture and water is vaporized off the original material and the drying process is accomplished. The dried material is peeled off from the outer side surface of the drum by the knife assembled on the drum. After, the dried material will be collected and packed. 2/ The advantages: ① High efficiency on heat utility. In reason that the working method is drying by conducted heat, almost all the heat is utilized expect that at the two ends of the drum and very few heat radiation exists. The percentage of heat utility can be *0% to *0%. ② The flexibility and maneuverability. This drying machine can be adjusted on concentration of the original material, the thickness of the original material film, the temperature of the heater, the velocity of the drum etc. All these features make the drier high efficient on output and more flexible on various original materials. ③ Short drying cycle. The drying cycle is only *0 seconds to *5 seconds, which is suitable for heat sensitive materials. ④ High drying efficiency. In the reason that the original film is only 0.3mm to *5mm thick generally and the heat conducting direction is fixed, the vaporizing intension of the original material can be maintained at *0 KgH2O/m2h to *0 KgH2O/m2h. The drying machine is suitable for drying liquid or sticky material in the industries of chemicals, dyes, pharmacy, metallurgy, food, etc 3/ Specification： Diameter (mm) Size（mm） Heated area available（m2） Drying capacity （kg.H2O/h） Motor power （kw） Outer size (L×W×H）mm **0 **0×***0 0.**6 *****5 0.5 ***0×***0×***0 **0 **0×***0 1.*7 *****0 1.1 ***0×***0×***0 **0 **0×***0 1.**8 *****0 1.1 ***0×***0×***0
