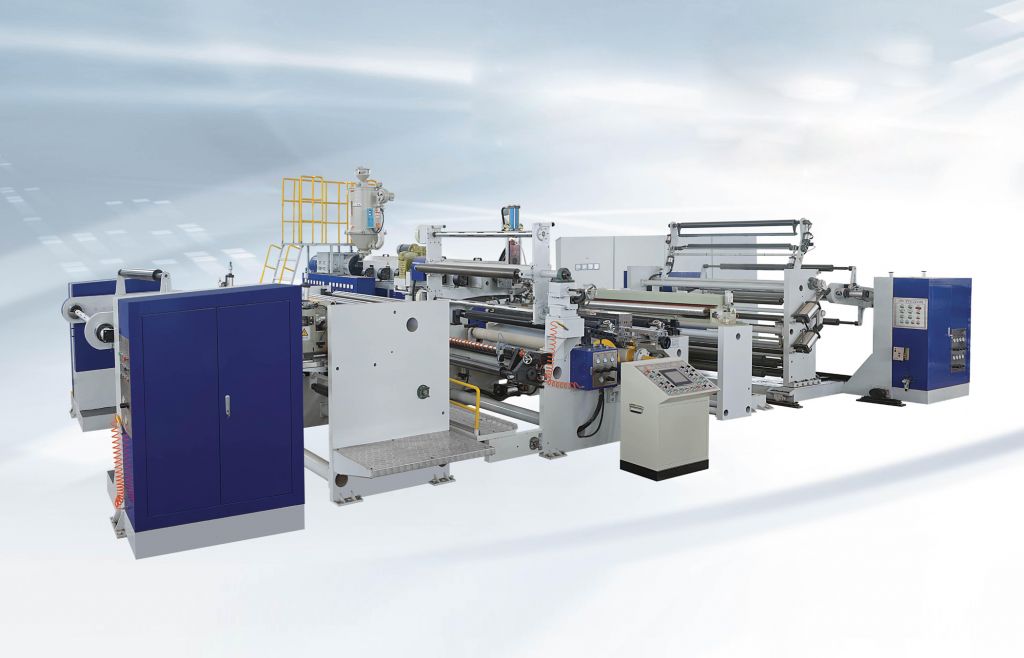

PE coating machine

Product Description

1.    main parameter of the PE laminating machine：

• Main substance: *0gsm***0gsm base paper
• The effective coating width: *******0mm
• The face length of the laminating cylinder: ***0mm
• The thickness of the film extruded: ***5um or ***5gsm，the uniformity of the coated film≤5%
• Working speed: ******0/min，the actual working speed have to depend on the raw material and the specific process.
• The specification and extruding quantity of the extruding screw: the equivalent diameter is **0mm.  The max extruding quantity is **0 kg/h.
• Unwinding mode: magnetic power brake, with constant tension control.
• Winding mode: cylinder surface friction winding, variable frequency converter motor control.
•  The max diameter of the unwinding and winding: ***0mm
• The electrical control system: Siemens PLC system, with LCD touch screen HMI.
• Driving motor: variable frequency converter control motor, individual driving motor and gear motor.
• Frequency converter: AC digital vector control frequency converter.
• Temperature control:  digital auto temperature controller，temperature range *****0℃, control precision: ±2℃。
• The size of paper roll core : 3＂or 6＂
• Power supply：3 phase **0V   *0HZ
• The heating system of the extruder: electrical heating
