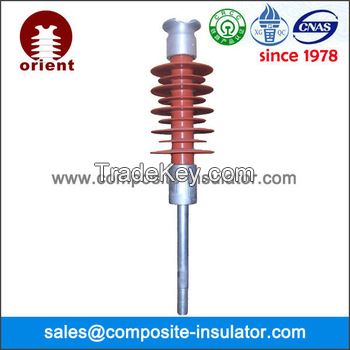

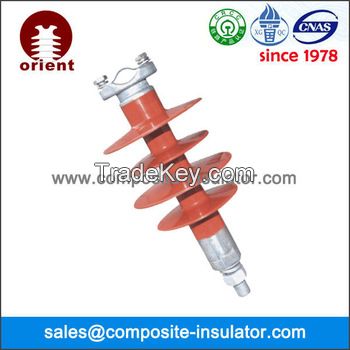

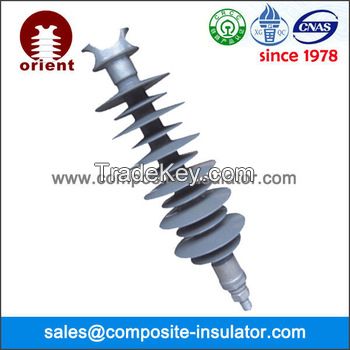

Pin type 33kv silicone rubber insulator

Product Description

Pin type 33kv silicone rubber insulator description:
1. Pin type 33kv silicone rubber insulator shall be suitable for 50 Hz effectively earthed 6KV~36KV Overhead distribution system in a moderately/heavily polluted atmosphere.
2. Pin type 33kv silicone rubber insulator shed divided into large sheds and small sheds.
3. The end seal adopted the high temperature sulfuration to ensure the reliable sealing performance of the metal fitting.
4. Fiber Rod:use the ECR high-temperature and acid-proof fiber rod.
5. The middle of the Pin type 33kv silicone rubber insulator are made from high quality silicone rubber composition.
6. Hop dip galvanized cast steel for metal fittings.
7. Suitability for polluted and salty atmospheres etc.

Pin type 33kv silicone rubber insulator technical parameter:

Insulator technical description	Unit	Value
Rated voltage	kV	33
Creepage distance	mm	1010
Arcing distance	mm	240
Specified Mechanical load(SML)	KN	6.4
Power frequency dry withstand voltage	kV	95
Power frequency wet withstand voltage	kV	76
Lightning impluse withstand voltage	kV	132

Pin type 33kv silicone rubber insulator details:
1. Routine and sample test reports for the Pin type 33kv silicone rubber insulator to be supplied will be submitted to Orient.
2. This series of Pin type 33kv silicone rubber insulator at an affordable price, superior quality and best service.
3. Orient Power provides provide the most efficient service.
4. Many customers are satisfied with our considerate service.
5. We have established good relationship with more than 20 countries around the world.
6. Certiificates:ISO9001,ISO9001:2008 ,CRCC Certification,SGS inspection

Packaging & Shipping

Orient Power will choose the most reasonable packing material and packing dimensions, all wooden packing is fumigated, and dimensions are designed to be economical to container shipment.

We will supply test report and packing pictures before shipment to customers.

Our Services

Orient Power services
Instanct response for each requirement about Pin type 33kv silicone rubber insulator
high quality and competitive price
reasonable advice to each project
regular order track information
excellent after sale service for the Pin type 33kv silicone rubber insulator
test report and photos of test before delivery
photos of packing and container loading before shipping
  We have customers from all over the world, USA, South America, Europe, England, France, Middle East, South East Asia, South Africa, African countries. We welcome customers to our factory for power insulator and fittings approval.

  We participate international exhibition for high voltage insulators.
We are supported by the government because of our contribution to power system
We are the member of China insulator standard committee
We are one of the company of insulator standard draft and setting.

Company Information

Workshops and production of insulators.
56000m2 factory site, 5 workshops


  We ensure every piece of insulator supplied by Orient Power China is all under routine test and sample test, our high voltage insulator products can pass all type test required on international IEC and ANSI insulator standard.


  Our insulator production and management comply with ISO 9001-2008
Our composite insulators get approval from high speed railway power grid
Our 500KV polymer insulator whole injection way is a patent product

We get type test report for 10kv-500kv high voltage insulators.
We get 5000 hour aging test report for composite insulators.

FAQ

Q: When enquire a composite insulator price, what parameter should be given to the supplier?
A: For composite insulators, if you can't provide the following information, it will be hard to quote exactly.
  1. rated voltage 2. section length 3. dry arcing distance 4. creepage distance 5. mechanical strength

Q: When enquire a porcelain insulator price, what parameter should be given to the supplier?
A: For porcelain insulators, if you can't provide the following information, it will be hard to quote exactly.
  1. rated voltage 2. creepage distance 3. mechanical strength 4. color of insulator

Q: How to select a supplier if you don't know the insulator market?
A: Select a experienced person in the power insulaor industry
  The cheapest can not be good at any market
  Choose the suitable and reasonable product and price

Q: How to select a supplier if you don't know the insulator product?
A: Select a experienced person in the power insulaor industry
  Find a supplier who can communicate well in English
  Find a supplier who can give you some suggestion on project
