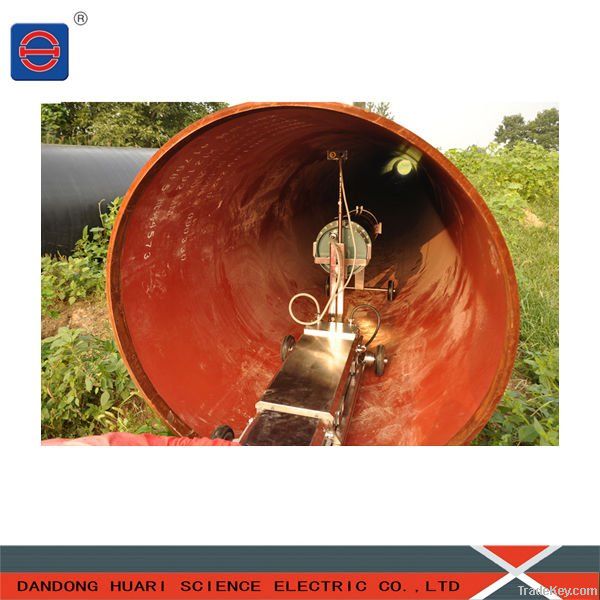

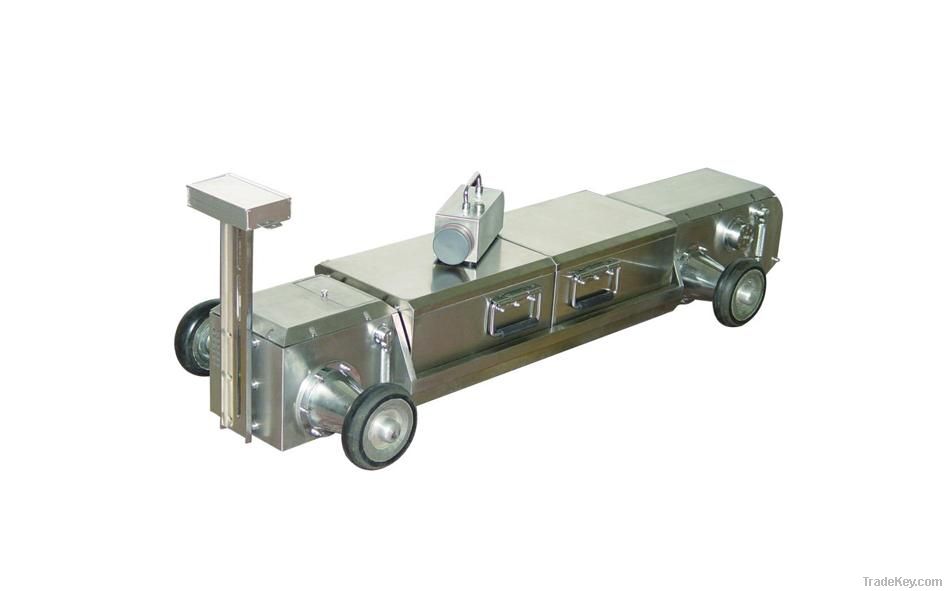

Pipeline Crawler HR-90

Product Description

Pipeline Crawler HR**0 is used for nondestructive test of butt welds in pipes. It features compact design, light weight, high stability and the ability of adjusting speed automatically according slope. It is able to memorize the parameter that set by user last time and the error code which can be used to work out the cause of the failure. This crawler is designed to come back from the pipeline even if the electric motor driver module or others module has no power supply.

Model No.                                                          HR**0
Applicable Pipe Diameter                              **8 - ***0mm
Overall Weight of Assembled Crawler
- Excluding X-Ray Tube                                  *2kg
Crawling Unit Length
- Excluding X-Ray Tube                                  ***0mm
Overall Assembled Length
- Including X-Ray Tube                                    ***0mm
Max. Climbing Gradient                                  *0°
Travel Speed                                                     *8m/min
Pipeline curvature
and dia. traversable                                         >= 7D
Crawling Distance                                           >= 4km Return
Drive Mode                                                        Double Drive
X-ray Unit                                                           **0kV/**0kV
Focal Spot Size                                                1.0mm × 3.5mm
Beam Angle                                                      *0° × **0°
Max. Penetration                                              *0mm (Steel A3)
Exposure Time                                                 0 ~ 7minutes
Voltage Range (kV)                                         **0 - **0kV
Positioning Mode                                             Magnetope System
Mean Positioning Accuracy                           +/*5mm
Operating Temperature                                  **0 - **0 degree celsius
Storage Temperature                                      **0 - **0 degree celsius
Humidity                                                             <= *0%
Power Supply                                                   Lead-acid Battery (*2Ah**0)
Battery Weight                                                   *7kg
Battery Dimension                                           **0mm × **0mm × **0mm
Charger                                                             CDQ - 6
