Pneumatic double diaphragm pump

Product Description

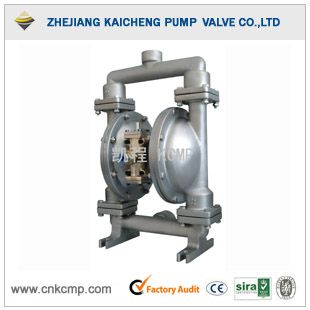

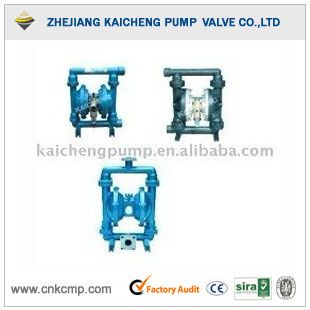

QBY Pneumatic Double Diaphragm Pump

Capacity: 0.8 ~ *0 m3/h
Max Head: *0m
Pressue: 0.1 Mpa~0.7Mpa
Temperature: 4 ~ **0 degree

1. Summarize
The Series QBY air operated diaphragm pump is a new kind of transportation machine and a newest pump in China. It is using compressed air as a power source, and can pumped all kinds of corrosive liquid entirety. It works as well as those imported from Germany WLLDENPVMPS or USA MARIOWPUMPS, It has been adopted by thousands of domestic company for petroleum, chemical, electronics, ceramics, and textile. It is installed in a variety of special occasions, for pumping all types of medium which can't be sucked by other pump. The pump body can be made of aluminum alloys, cast iron or stainless steel according to customers' demand.

2. Usage
The diaphragm pumps are widely used in water supply and drainage type of fluid, serous transmission, highly toxic, flammable, volatile liquid delivery, jam, oil and special plastic suction media delivery. The pump has self sucking function without the electricity motive. It is no leaking and jamming. The air pressure: 0.1 Mpa~0.7Mpa. The temperature: *4 ~**0 degree the sticky liquid (sticky degree below****0centipoise)

3. Characteristic
No need of lead water, has the merit of self-sucking pump, dive pump, shield pump, slurry pump.
It can be immersed in media work, no need for oil lubrication of the pump, even the idling of pumps, it has no impact. The outlet pressure and flux has reached no step adjustment through the valve opening adjustment. This pump can be used in transporting the easy floating liquid and hard floating liquid. Organic the standard suction distance: 7m Outlet Pressure *0m exit pressure ≥ 6kgf/c
