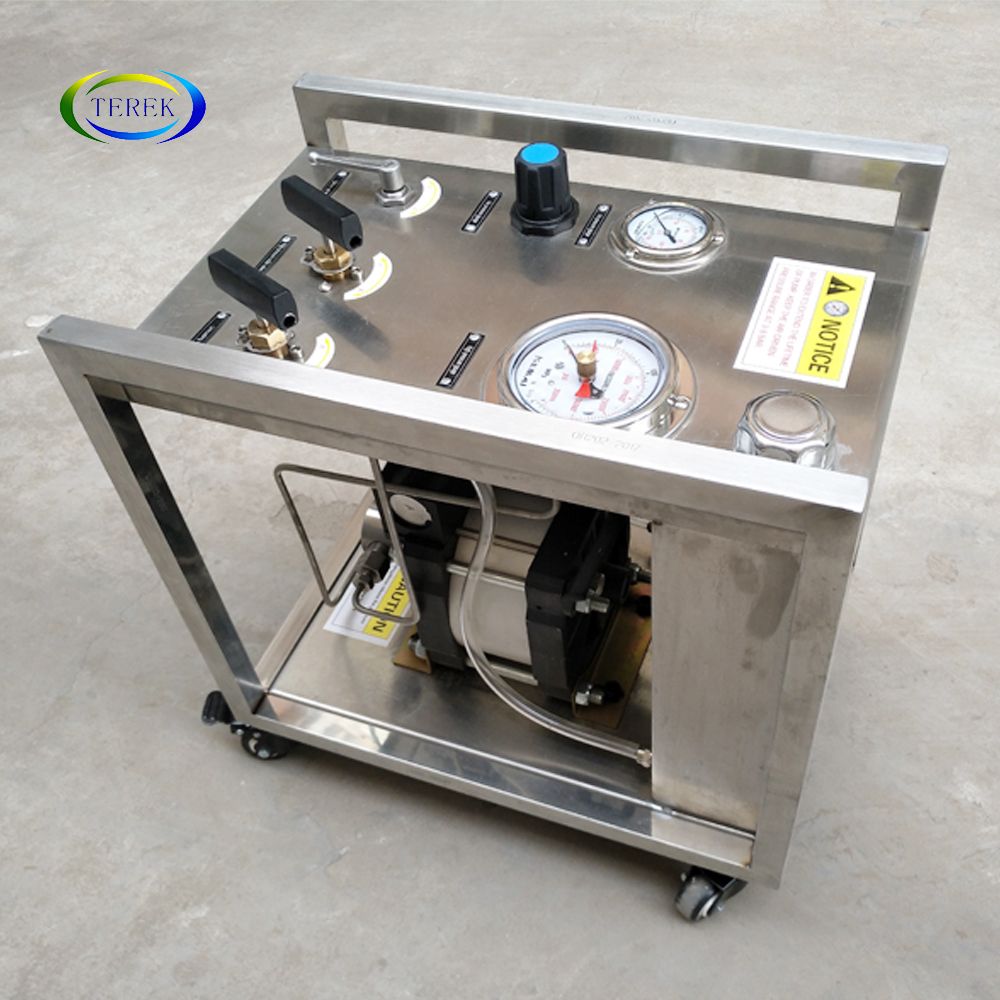

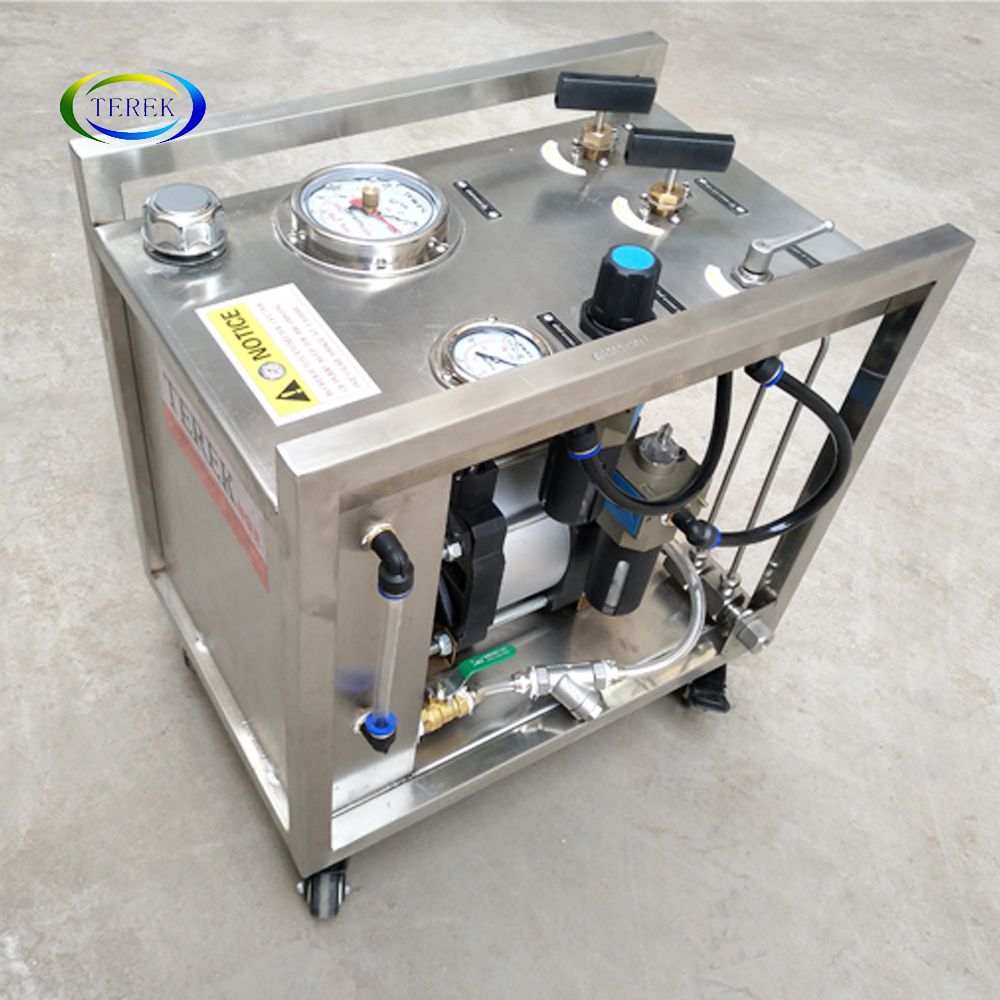

portable pneumatic hydraulic test booster station with round chart recorder

Product Description

LU-LKD***-RC Liquid booster pump system is a new type device designed and manufactured by our company, The structural design are compact, Combined the air driven liquid booster pumps,high pressure gauge,needle valves ,control switches and other precision accessories are assembled in the frame or closed cabinet.
TEREK always focuses on high-pressure fluid transportation and pressure testing equipment, providing perfect high-pressure fluid transportation solutions and services, and providing high-quality products and services is TEREK's eternal goal.

It is a kind of use compressed air as power source, Air - driven liquid booster pump as pressure source, by adjusting air - driven pressure to obtain the corresponding outlet pressure; The ratio of outlet pressure to air drive pressure is **0:1. When the driving pressure and the outlet pressure are balanced, The air-driven liquid pump will automatically stop pressurizing, and the outlet pressure will remain stable at the preset pressure. Therefore, it has the features of explosion-proof, adjustable output pressure, small volume, light weight, convenient operation, reliable performance and wide application range.

The liquid pump mainly consists of air drive chamber, pressurizing chamber, auto reversing valve, inlet check valve, outlet check valve, High quality sealing parts, air drive piston, pressurizing piston, silencer etc.
LU-LKD***-RC Liquid booster pump system mainly includes an air driven liquid booster pump, Round chart recorder ,*5L water tank ,pressure gauges, liquid filter ,air filter, air regulating valve,control valves,pipelines, cabinet , pressure release valve etc.
The main parts of the equipment are assembled in closed stainless steel cabinet or stainless steel frames. The pressure gauge,valve and pressure regulator will be mounted on the panel. The corresponding sign will also be marked on the panel.
