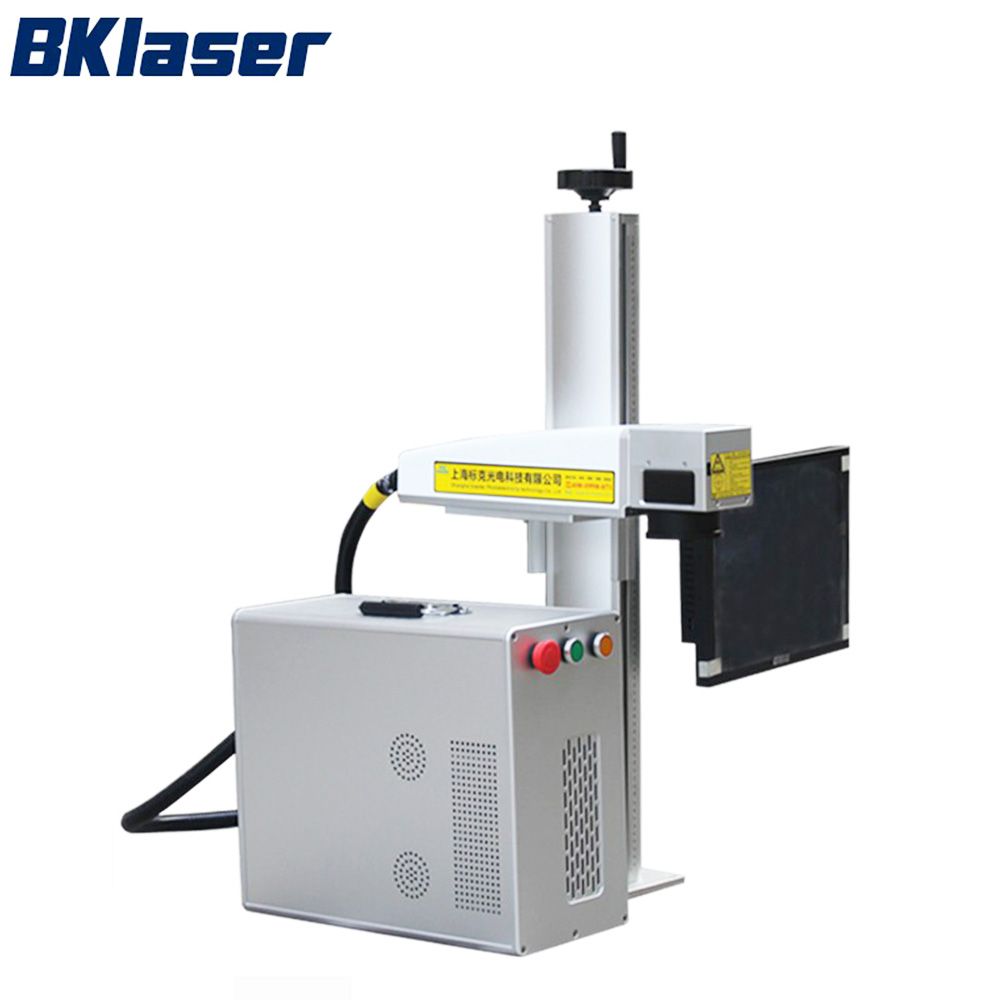

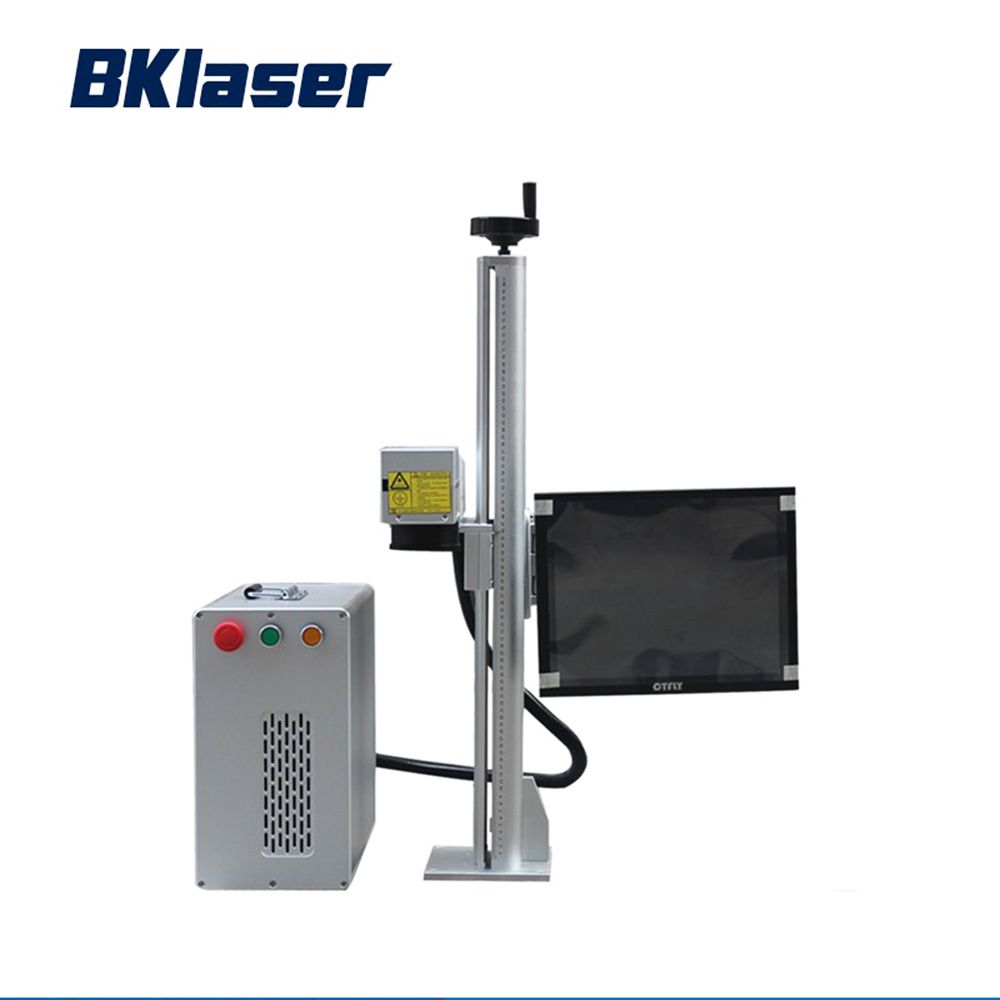

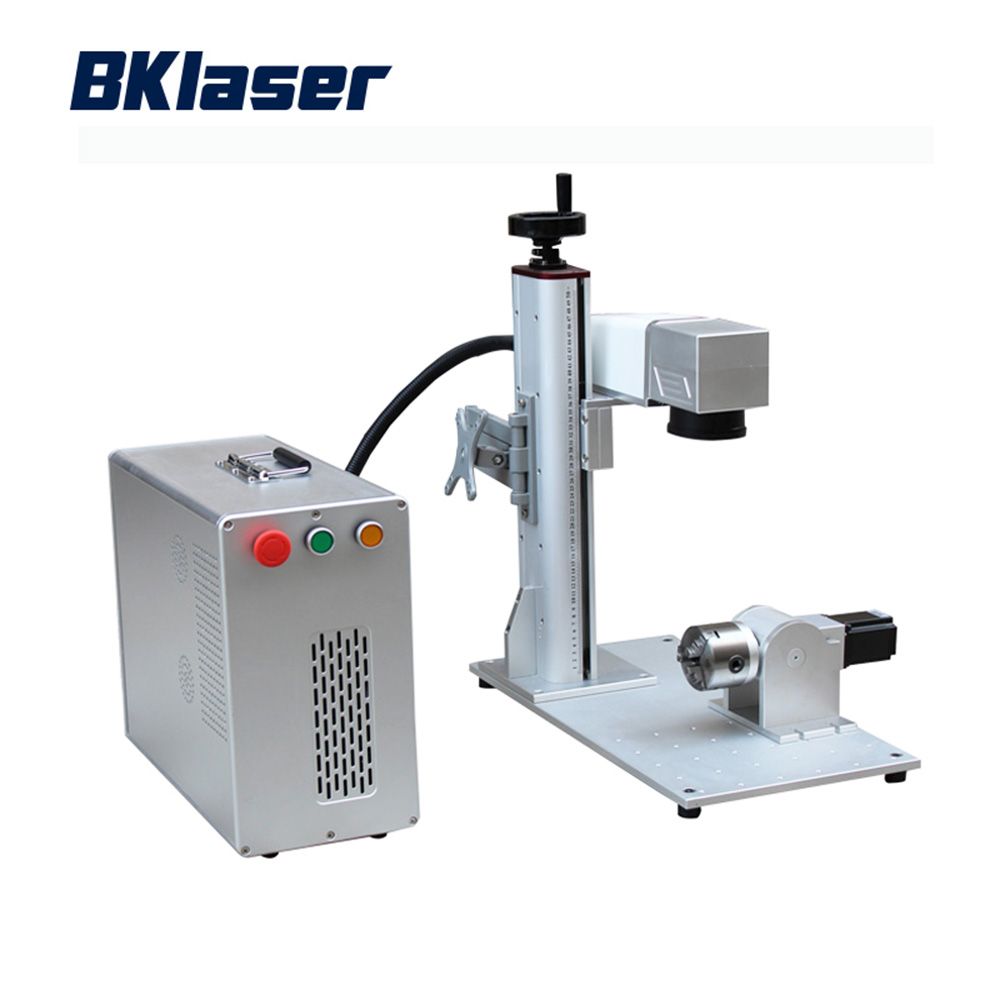

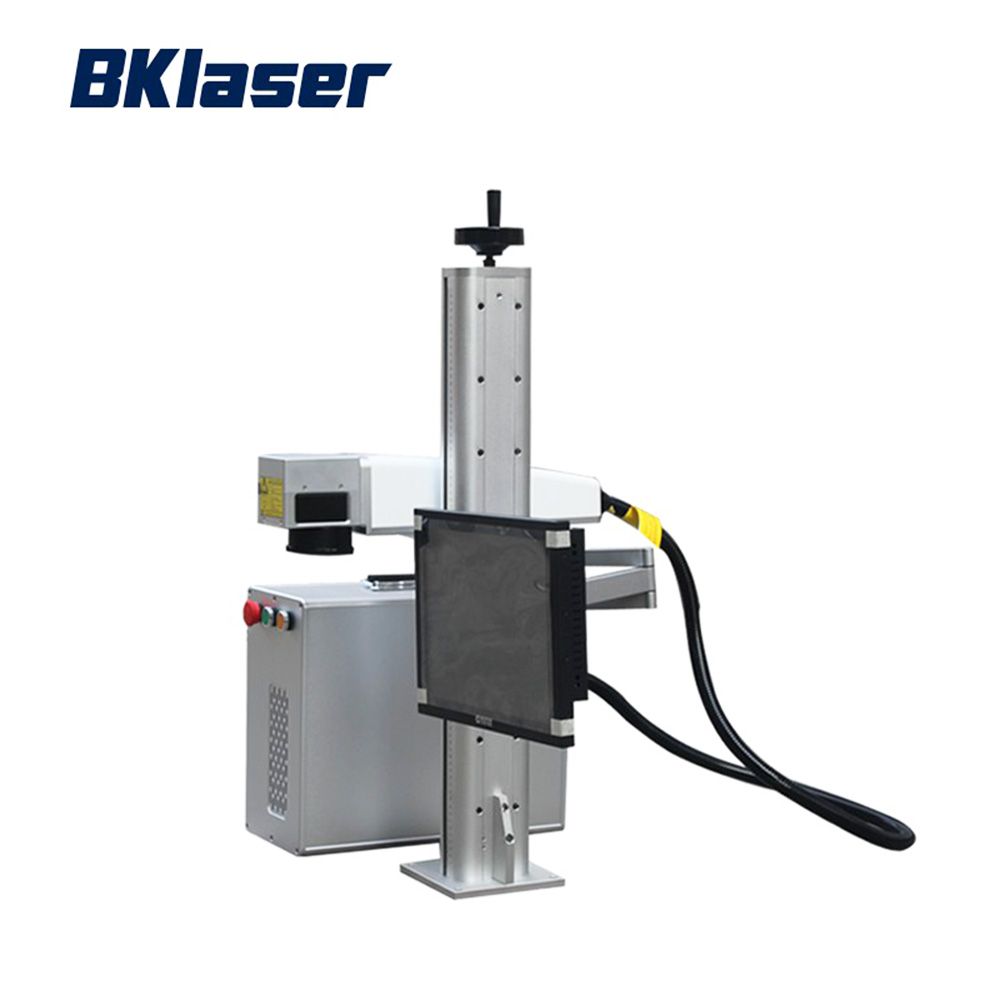

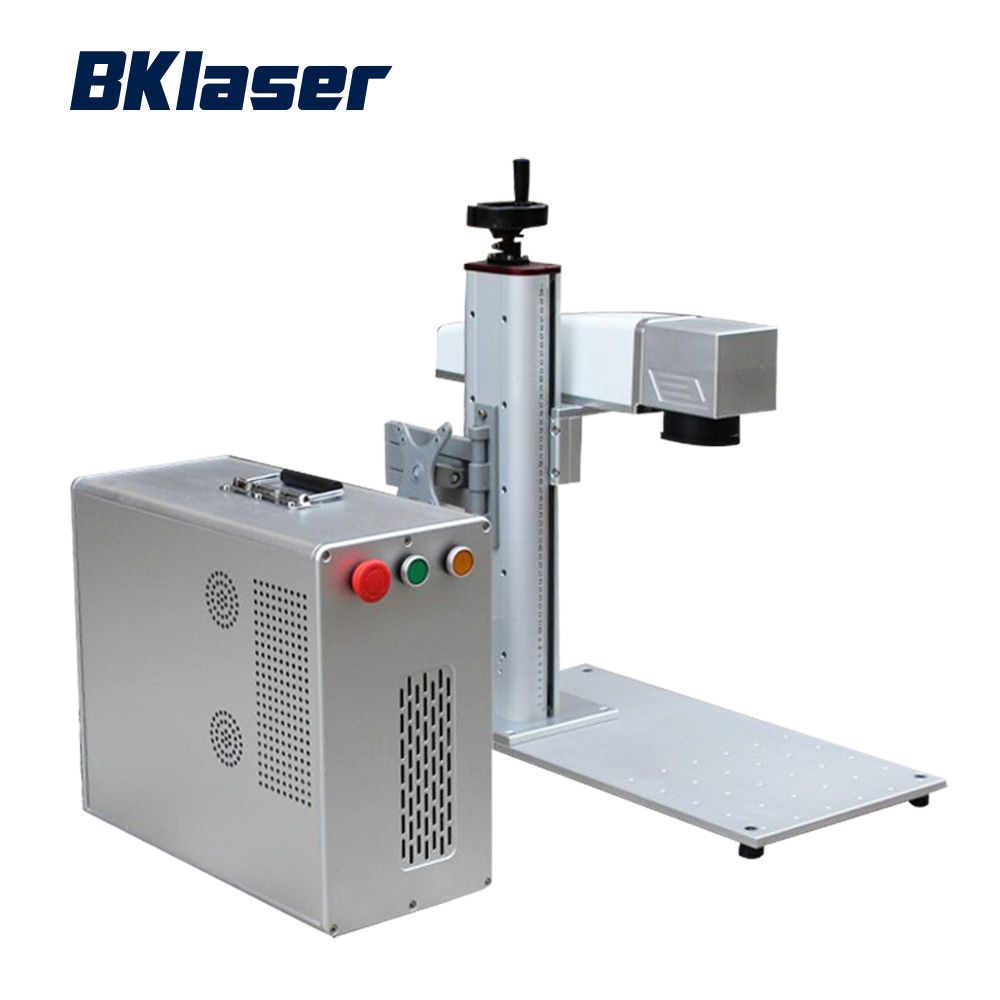

Portable small mini fiber laser marking machine for metal plastic with big working area

FOB Price

Get Latest Price

2798 ~ 7099 USD / Piece

1 Piece Minimum Order

Country:

China

Model No:

BK-G20

FOB Price:

2798 ~ 7099 USD / Piece (Negotiable) Get Latest Price

Place of Origin:

Shanghai, China

Price for Minimum Order:

2798 per Piece

Minimum Order Quantity:

1 Piece

Packaging Detail:

standard exported plywood box

Delivery Time:

3-15 days after payment

Supplying Ability:

150 Piece per Month

Payment Type:

T/T, L/C, D/A, D/P, Western Union, Money Gram, PayPal

Product Group :

Laser Marking Machine

Contact Now

Hangzhou Nuoen Precision Instrument Equipment CO., Ltd

China

Free Member

Contact Person Mr. Karp

No.8 Ning'an Road, Hangzhou, Zhejiang

Contact Now

Product Specification

Laser source:MAX or IPG
Laser power:20w 30w 50w
Marking area:from 110mm to 300mm
Repeat accuracy:0.003mm
Engraving depth:<1mm
Min character:0.3mm

Product Description

Description:
The Fiber Laser Marking Machine is widely applied in electronic component, the communication, the spare parts of automobiles and motorcycles, instrument and meter, aerospace, military products, hardware and machinery, measuring and cutting tools, sanitary equipment, medication, food and beverage, cosmetics, drugs packing, medical appliance, solar energy, handicraft and so on. It is suitable to mark on all kinds of metal and partial nonmetallic material.
Also can use Mopa fiber laser source mark colorful photo on stainless steel, metal and so on.

Technical Parameters:

Model	BK-G*0BX	*BK-G5BX**	BK-G*0BX	BK-G*0BX
Power	*0W	*5W	*0W	*0W
Laser Wavelength	***4nm
Frequency Range	****0KHZ
Beam Quality	<2			<3
Engrave Line Speed	≤***0mm/s
Minimum Line Width	0．*3mm(depends on the material)
Minimum Character	0.3mm( depends on the material )
Repeat Accuracy	±0.**3mm
Power Supply	****0V/0Hz**0Hz
Maximum Height Of Marking Workpiece	0mm（select 0**0mm marking highest 0mm）
Power Consumption	**0W
Engrave Depth	≤0.3mm			≤0.5mm
Operation System	Windows
Cooling Mode	Built in air cooling
Engrave Range	Standard 0*0mm
File Formats	All fonts in WINDOWS system
Contour Size of The Unit(s)	00**0mm
Machine Total Weight	*3Kg

Application Area:
Suitable for electronic components, electrical products, IT industry, auto parts, hardware tools, precision instruments, gifts, jewelry, medical equipment and other high-end products of precision, fine print logo. Typical applications such as plastic (PA*6) insulation strip, laser flight marking, metal label automatic feeding and unloading, laser marking, packaging box, on-line laser marking machine, etc.

Performance Characteristics:
1. By increasing laser oscillation in the optical fiber Pori to achieve low loss, good stability and it is not influenced by the external dust gas and mechanical loosening of the laser beam, stable output.
2. Maintenance free.
3. Processing speed is **3 times the traditional laser marking machine.
4. Air cooling fiber laser, no consumables, low maintenance, high photoelectric conversion rate, small power consumption (less than **0W), the use of low cost.
5. Portable box type design, small size, especially adapted to those need to often change the site work, and those space restrictions on the site. Widely used in jewelry store processing and processing of small parts before the shop model.
6.It has strong environmental adaptability and it can work continuously under the environment of shock, shock, dust and humidity. It is easy to realize the coupling with the optical fiber, and can realize long distance work.
7.It can mark bar code, two-dimensional code, text, graphics, regular and irregular transaction.
8. Software runs on WINDOWS platform, Chinese / English interface, compatible with AUTOCAD, CORELDRAW, PHOTOSHOP and other software file formats, such as PLT, PCW, DXF, BMP and so on, and also can use SHX and TTF fonts directly.
