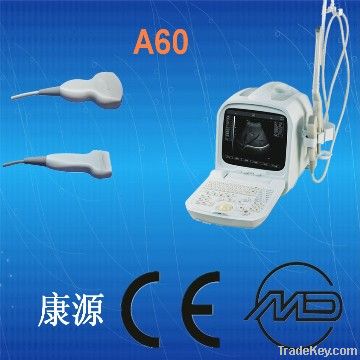

portable ultrasound system

FOB Price

Get Latest Price

- Minimum Order

Country:

China

Model No:

ATPLM60

FOB Price:

(Negotiable) Get Latest Price

Place of Origin:

Price for Minimum Order:

Minimum Order Quantity:

Packaging Detail:

Delivery Time:

Supplying Ability:

Payment Type:

Product Group :

portable ultrasound scanner

Contact Now

Sichuan Canyearn Medical Equipment Co., Ltd.

China

Free Member

Contact Person amanda

Chengdu, Sichuan

Contact Now

Product Specification

Product Description

K**0

Main features：

Excellent imaging technology

Real time dynamic focusing

It adopts continuous dynamic receiving aperture (CDA) and continuous dynamic receiving focus (CDF). Focus of real time dynamic focusing is fixed when sending out but changed when received. That's to say, it can receive the signal while move the focus to the far field gradually according to the depth, so that the ultrasonic beam can be delicate in both a short distance and a long distance, and the horizontal resolution will be greatly improved, so the frame rate will not be lower following the increasing number of foci.

Smoothing processing technology of image

An advanced 2D image automatic filtering device is inserted to the system to realize smoothing processing and improve the clarity of fine structures of the tissues being checked up.

Filtering technique

The filtering device used in this system can filter the noise signal of static and slowly moving tissues or low speed blood stream. It's hard to detect the noise, but this system can improve SNR and improve the quality of image effectively.

Broadband variable frequency probe technology

Namely dynamic frequency scanning; it's a broadband probe technology based on a certain frequency. It can realize the simultaneous transmission of multi frequency and receive high frequency at the near field and low frequency at the far field optionally, thereby to meet the different requirements of clinic. In this way, it can avoid the difficulty and limitation in using high frequency (which can lessen greatly in the body) independently in diagnosing the deep organs or foci.

Optimized clinical model with one key

Users can set up *5 clinical models by adjusting the working parameters to store the working status of different positions, simplify the operational procedures and improve the work efficiency.

Rich information management function

This system is equipped with special software package for the obstetric survey report of animals. It also has the function to manage the animal's information and archive, which is particularly convenient for animal's case management, examination of image, playback of video, as well as search, storage and deletion of information. Besides, this system also supports ultrasonic image workstation.

Probe	Frequency	Broadband and variable frequency probe
	Frequency band	2.5MHZ**0MHZ
	Probe type	Electronic convex array, electronic linear array, electronic micro convexity，intracavity scanning
Display		**-inch SVGA line-by-line flicker free display
Measurement	B model	Distance, perimeter, area, volume, angle, histogram, stricture rate
Measurement	M model	Distance, time, gradient, heart rate
Professional measurement package		Belly, gynecology, obstetrics, urologic section, heart section, minor organs
Display mode		B,B/B,4B,B/M, M, Panning Zoon
Body mark		≥**8 kinds
Imaging		Gain ****0DB
		Depth ≥*4 cm
		TGC 8 section adjustable

Options：

LinearMicro-convex Intracavity Probe

Biopsy Needle Guide BracketsVideo PrinterLaser PrinterFootswitchUSB Memory Stick

Configuration：

Two connectors, Silicon Rubber and backlight Keypads, USB interfaces, *0 inch monitor

Standard configuration: *0 elements and 3.5 MHz convex probe

Country:	China
Model No:	ATPLM60
FOB Price:	(Negotiable) Get Latest Price
Place of Origin:	-
Price for Minimum Order:	-
Minimum Order Quantity:	-
Packaging Detail:	-
Delivery Time:	-
Supplying Ability:	-
Payment Type:	-
Product Group :	portable ultrasound scanner
