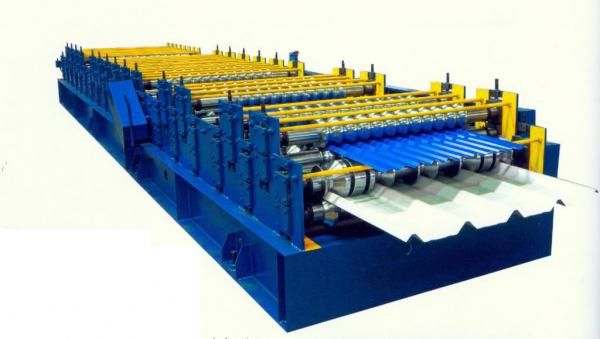

roof panel machine tile making machine roofing machine wall panel machine Chinese Hot sale metal roofing sheets panel roll forming machine

FOB Price

Get Latest Price

1 ~ 18000 USD / Set ( Negotiable )

1 Set Minimum Order

Country:

China

Model No:

FOB Price:

1 ~ 18000 USD / Set ( Negotiable )(Negotiable) Get Latest Price

Place of Origin:

China

Price for Minimum Order:

1 per Set

Minimum Order Quantity:

1 Set

Packaging Detail:

exported

Delivery Time:

30days

Supplying Ability:

1000 Set per Month

Payment Type:

L/C, T/T

Product Group :

roof panel machine

Contact Now

Xiamen Rooftech machinery Co, .Ltd

China

Free Member

Contact Person Mr. Thomas

Xiamen, Fujian

Contact Now

Product Specification

Type: Tile Forming Machine
Tile Type: Steel
Use: Roof

Product Description

Flow chart:

Decoiler--Manual prectting--Material Guiding--Roll forming M/C--Hydraulic System--Post Cutting--Exit Rack

Product Application

This machine takes GI/PPGI as raw material, through a series steps and can produce the metal roofing sheets.

The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.

TECHNICAL PARAMETERS FOR METAL ROOFING SHEETS PANEL ROLL FORMING MACHINE
Serial Number	Item	Parameters	Remark
Applicable material	Type	GI/PPGI
	Thickness	0.3-0.6MM
	Yield strength(Mpa)	G245-G350
Main performance parameters	Forming speed(M/MIN)	12-20m/min
	Machine size(L×W×H)	81.52	Refer to the machine
	Power supply(KW)	7.5+3.0	Motor and Hydraulic Motor
MACHINE COMPONENTS FOR METAL ROOFING SHEETS PANEL ROLL FORMING MACHINE
Name	Model/name	Quantity	Technical description
1.Decoiling system	Hydraulic decoiler	1 set	Capacity: Max. 5Ton,hydraulic control steel coil inner bore expanding, shrinkage and stop.
2.Forming machine	Material Guiding System	1 set	For feeding in a right position no Deviation.
	Precutting Device	1 set	Prevent the profile being unbeautiful because of the rough material.
	Main Roll Forming Machine	1 set	About 18 steps, motor driving and chain transmission. Wall plate structure.
3.Cutting system
