Small Edible Screw Oil Press Machine with Filter Small Edible Screw Oil Press Machine with Filter Small Edible Screw Oil Press Machine with Filter Small Edible Screw Oil Press Machine with Filter
Next

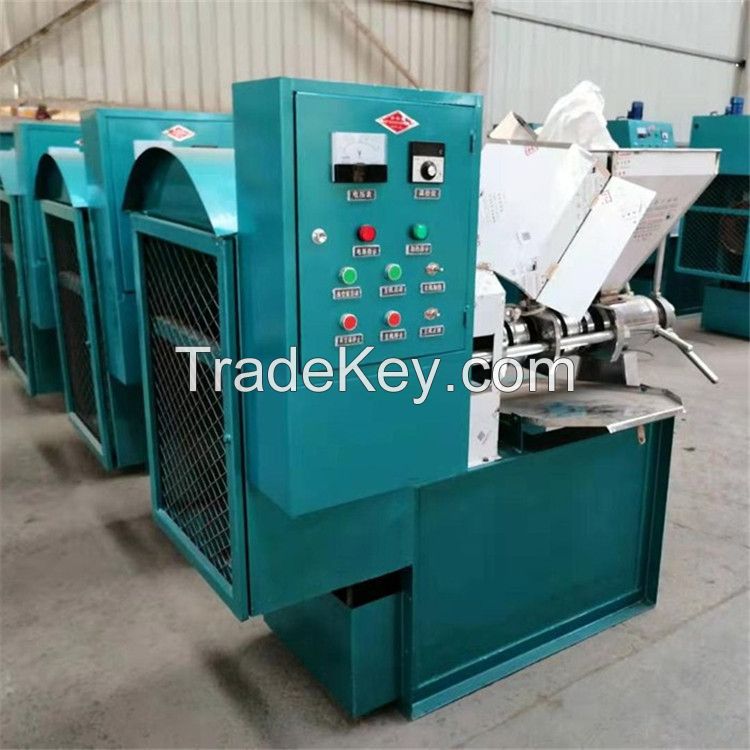

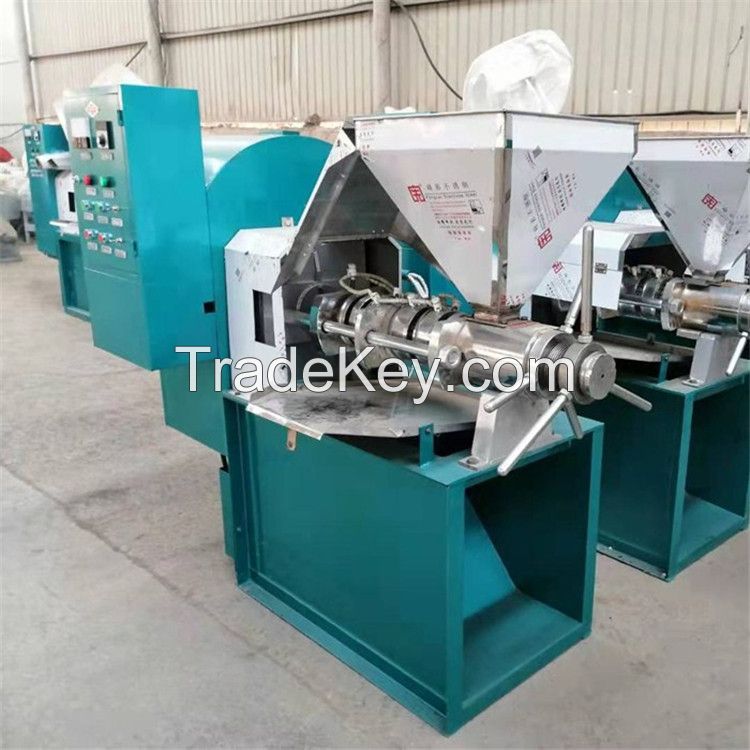

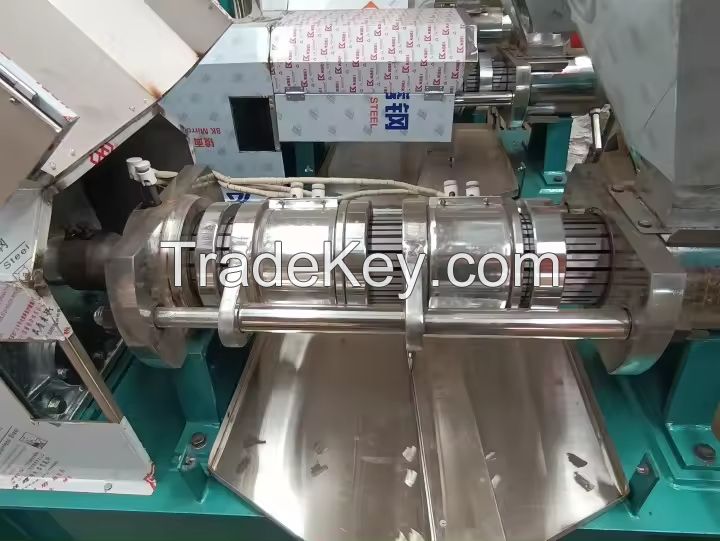

Small Edible Screw Oil Press Machine with Filter

FOB Price

Get Latest Price

2000 ~ 5000 USD / Set

|

1 Set Minimum Order

Country:

China

Model No:

6YL

FOB Price:

2000 ~ 5000 USD / Set Get Latest Price

Place of Origin:

China

Price for Minimum Order:

2000 per Set

Minimum Order Quantity:

1 Set

Packaging Detail:

Wooden case

Delivery Time:

25-40 days

Supplying Ability:

100 Set per Month

Payment Type:

T/T, L/C, Other

Product Group :

Contact Now
Free Member

Contact Person Sinoder

Zhengzhou, Henan

Contact Now

Product Specification

  • Function:Making Edible Oil
  • After-sales Service:Engineers available to service
  • Raw material:peanut, rapeseed, cotton seed,soybean,olive seed,sesame,sunf
  • Material:Stainless Steel/Carbon Steel
  • After-sales Service Provided:Field installation, commissioning and training
  • Color:Support customization

Product Description

Edible Screw oil press machine

Introduction of automatic vegetable oil press machine for cooking oil Integrated screw oil press is an advanced vegetable oil press machine nowadays in edible oil market. It is used for both cold and hot oil extrusion process from a wide range of oil plants such as peanuts, rapeseed, cotton seeds and coconut seeds and so on.Integrated screw oil press enjoys wide popularity in small and large scale oil pressing plants because it can not only press oil but also filter oil by vacuum filtering device, thus saves cooking oil pressing time & cost and simplifies oil pressing.

Edible oil press machine, which is also called oil expeller,oil extraction machine or oil mill.

Suitable Seeds: Peanut, Soybean, Rapeseed, Sesame,Sunflower seeds, Walnut, Almonds, Pumpkin seeds,Corn germ,  Cashew, Camellia seeds, Tea seed, Palm, Pepper seeds, Chili seeds, Til seeds,  and also Jatropha seeds, Castor seeds,Cottonseed and Tung seeds for biodiesel.

Control panel : in the control panel , there are several s . The heating system can make the temperature of pressing enviroment about 120 degree , which can make perfect pressing section working enviroment . When the temperature is higher than 120 degree , the heating system will be cut off automatically . The design of heating system can guarantee the service life of the oil press machine .

Technical datas Of the oil press machine

Model 6YL-80 6YL-100 6YL-120 6YL-160
Dia. φ 81mm φ 101mm φ 123mm φ 160mm
Screw speed 47r/min 38r/min 35r/min 32r/min
Power Motor 5.5kw 7.5kw 11kw 22kw
Vacuum pump 0.55kw 0.75kw 1.1kw 1.1kw
Heater 2.2kw 2.2kw 2.2kw 2.2kw
Capacity 80-100kg/h 150-200kg/h 250-300kg/h 500-600kg/h
Weight 880kg 1250kg 1500kg 1800kg
Size (mm) 1500×1200×1750 2000×1300×1850 2100×1300×1850 2300×1300×1950



Related Products of the Automatic Oil Press Machine :
Seeds roaster------------- before pressing oil, roaster can adjust the temperature and moisture of oil seeds if you want hot pressing. This process could increase oil yield of seeds.
Screw conveyor----------- The conveyor will convey oil seeds from roaster to oil press, improve productivity and savie labor power.
Combined oil press ---------This oil press is equipped with oil filters, it could do oil pressing and oil filtering at the same time, we could get pure oil by only one machine.
Oil Refinery plant --------------  After produced by oil press machine, we get crude oil, and the go to oil refinery plant, we could get high grade edible oil.



This Screw oil press can press more than 20 kinds of oil crops, such as Peanut, Soybean, Rapeseed, Sesame,Sunflower seeds, Walnut, Almonds,Pumpkin seeds, Corn germ, Cashew,Tea seed, Palm, Pepper seeds, Til seeds, and Castor seeds,Cottonseed.


If you want to know more the vegetable oil processing machines and cooking oil refinery plants, pls feel free to contact us and send us the detail requirements.

Country: China
Model No: 6YL
FOB Price: 2000 ~ 5000 / Set Get Latest Price
Place of Origin: China
Price for Minimum Order: 2000 per Set
Minimum Order Quantity: 1 Set
Packaging Detail: Wooden case
Delivery Time: 25-40 days
Supplying Ability: 100 Set per Month
Payment Type: T/T, L/C, Other
Product Group : Oil Mill Machine
