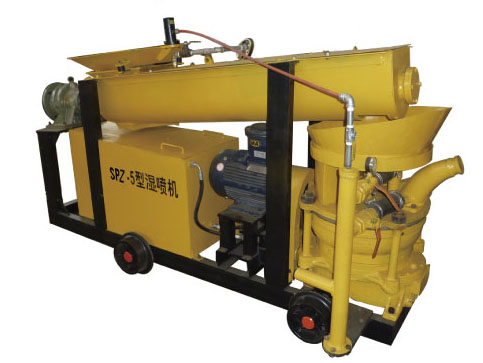

SPZ-5 Type Wet-mix Spraying Shotcrete Machine

Product Description

The mixed material can automatically add water, stir, continuous convey add Liquid Accelerator and jet by using machine. SPZ*5 is one of the most perfect bolting and shotcreting supported machine both at domestic and overseas. .We also needs to point out our machine have the merits of reducing reflected rate, decreasing the coal dust and saving raw materials. The structure of concrete sprayer is adopting the advanced approach, especially the design of elastic material cabin and swirl tube. The ability of dealing with wet materials has been greatly improved. In addition, it can prolong the service life of the worn part. It is widely applied in engineering of mine, culvert, supported foundation of architecture and slope of river course. Operational principle: Workers load the mixed material evenly into the hopper of the agitator. After opening the ball value of watering device, the stirred materials are supplied into concrete sprayer. When forced draught through the delivering pipes the mixed stirred materials was jet to the sprayed surface. The stirred materials of the nozzle are mixed with Liquid Accelerated Agent that pressed by the Accelerator Pump to attain the aim of quickly consolidating. Technical Parameters: jetting ability(m3/h) 5 mixture’s water cement ratio 0.*5~0.*0 the limiting grain size of aggregate(mm) ≤*5 delivering pipe inside diameter(mm) Φ*0 motion of wind pressure(Mpa) 0.2~0.4 air consumption(m3/min) ≤*0 distance of horizontal transportation(m) ≤*0 liquid accelerator percent (%) 4~6(cement weight percent) motor power(Kw) agitator 4 concrete sprayer 5.5 gauge(mm) **0 dimensions length x width x height(mm) ***0***0****0 weight(Kg) **0
