SZ Stranding Line

FOB Price

Get Latest Price

100000 ~ 150000 USD / Set ( Negotiable )

1 Set Minimum Order

Country:

China

Model No:

QY07

FOB Price:

100000 ~ 150000 USD / Set ( Negotiable )(Negotiable) Get Latest Price

Place of Origin:

shanghai

Price for Minimum Order:

100000 per Set

Minimum Order Quantity:

1 Set

Packaging Detail:

Delivery Time:

Supplying Ability:

100 Set per Year

Payment Type:

T/T, L/C, PayPal

Product Group :

Contact Now

View Brochure

China electronics technology group corporation NO.8 research institute

China

Free Member

Contact Person Mr. le

DONGJIANG DISTRICT, Hefei, Shanghai

Contact Now

Product Specification

SHANGHAI:EQUIPMENT

Product Description

适用与特点

Application and feature

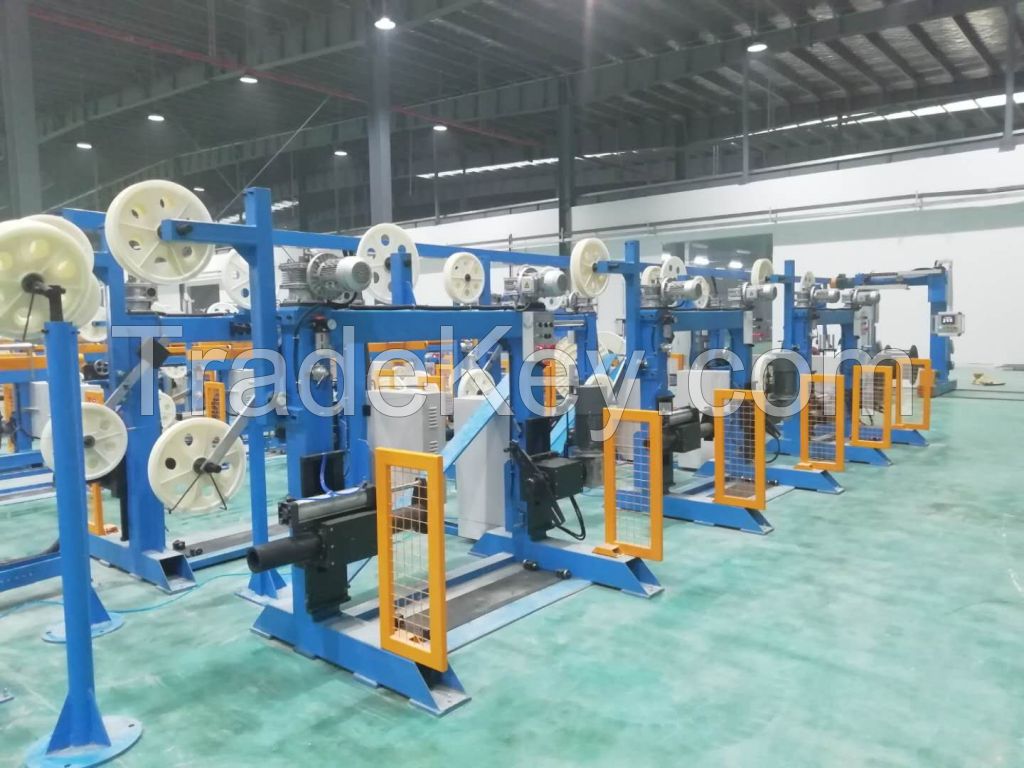

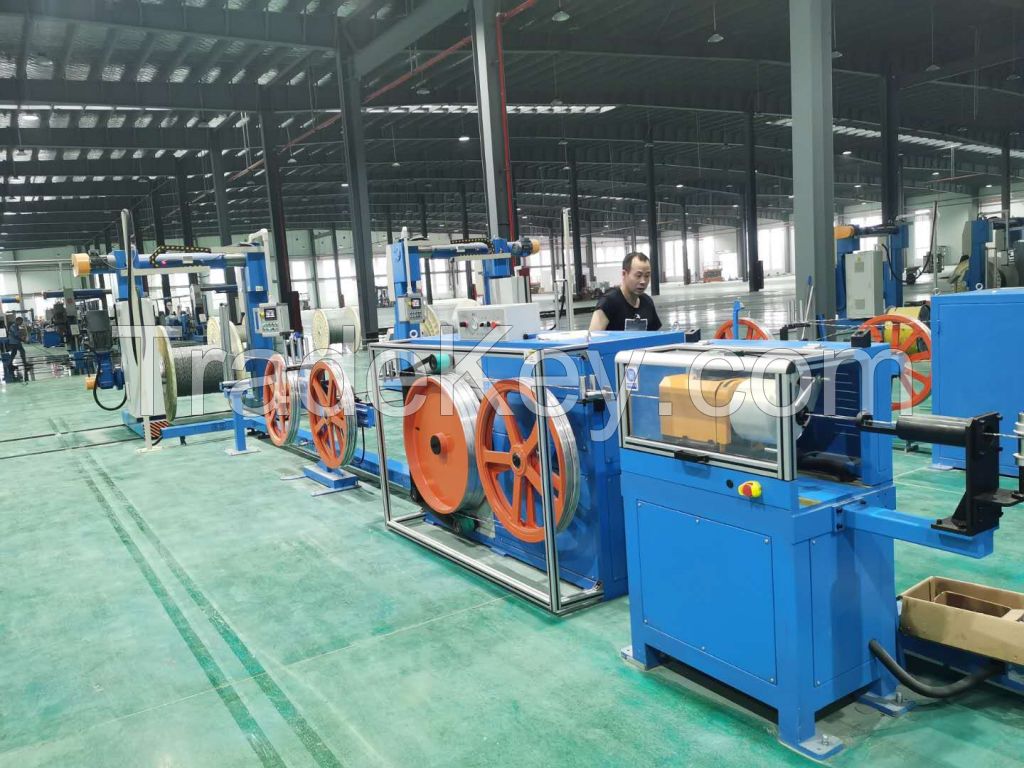

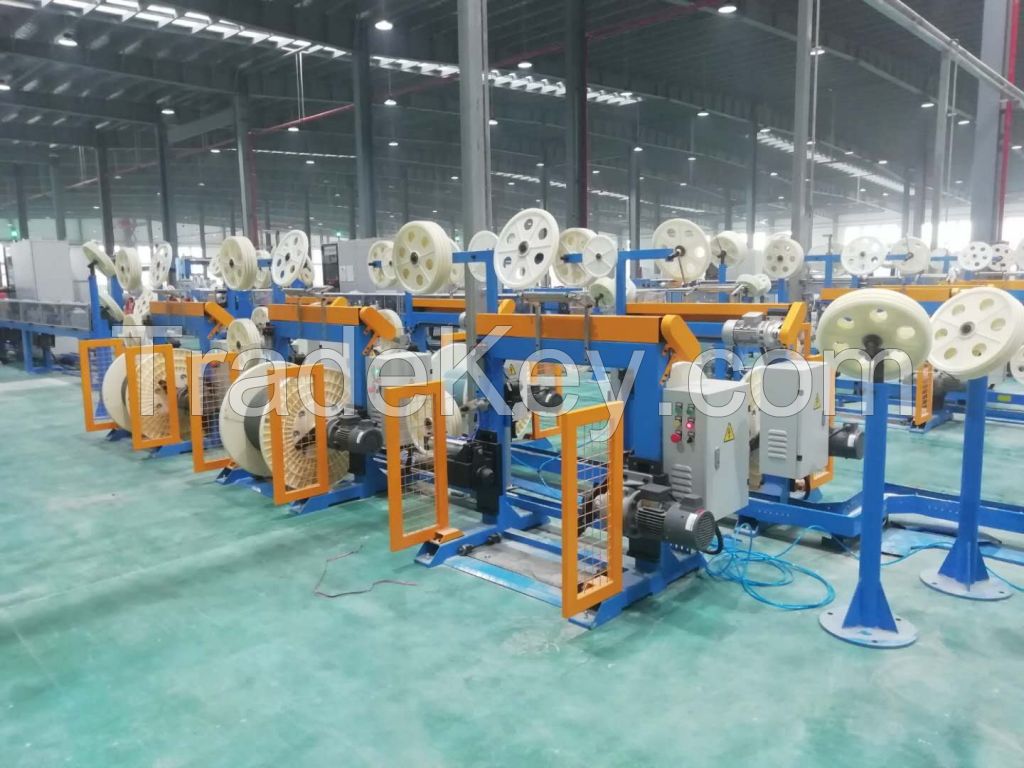

Loose Tube Optical Fiber SZ Stranding Line

本生产线适用于直径在Ф3.5mm以下光纤松套管SZ绞合成缆。采用双团同

心式高速扎纱头和高速SZ绞合头，能大幅度提高成缆机速度和生产效率。

束管放线可放出*2或*6路**0型放线盘，可实现大芯数大长度光缆生产。

束管放线采用储线式张力控制器

采用多电机驱动差动式（SZ）绞合装置，绞合节距、反向角设定方便。

采用双向扎纱方式，正反向交叉扎纱，使光缆结构稳定，成缆工作可靠。

设备具有张力超限报警及断纱、断带、纱完、带完报警功能。

。

This line is suitable for"SZ"stranded cabling with a fiber loose tube underФ3.5mm，

Adopts double concentric high-speed binding yarn heads and high-speed"SZ"stranding

heads,which can significantly increase the speed and productivity.

Loose tube pay-off can use *2-path or *6-path **0-type reel,large length and high

count optical cable production can be realized.

Accumulated tension control is used for loose tube pay-off.

Multi-motor driven differential(SZ)stranding unit is used,setting of stranding pitch

and back-angle is convenient.

Bi-directional yarn binding mode of forward and reverse cross yarn binding is used to

make optical cable structure stable and cable stranding reliable.

The line has functions of loose tube lump alarming,tension over-limit alarming,yarn

broken,tape broken,yarn exhaust,tape exhaust alarming and machine stop.

Country:	China
Model No:	QY07
FOB Price:	100000 ~ 150000 / Set ( Negotiable ) (Negotiable) Get Latest Price
Place of Origin:	shanghai
Price for Minimum Order:	100000 per Set
Minimum Order Quantity:	1 Set
Packaging Detail:	WB
Delivery Time:	-
Supplying Ability:	100 Set per Year
Payment Type:	T/T, L/C, PayPal
Product Group :	-
