Table CNC Plasma Cutting Machine for Sheet Metal

Product Description

Table CNC Sheet Metal Cutting Machine Plasma Cutting Machine

Product overview

• 1.The device is a kind of desktop CNC plasma cutting machine featuring high speed, precision cutting and small size.
• 2.The desktop CNC plasma cutting machine is specially designed for the rapid plasma cutting of carbon steel plates, aluminum plates, copper plates, stainless steel plates and other metal plates in any graphic. Under normal circumstances, the cutting plane does not need secondary processing, and the cutting effect is good, without dross and burrs.
• 3.The desktop plasma cutting machine can replace punch for processing and is characterized with high degree of automation, high reliability, high accuracy, low price, easy operation and maintenance, etc. The product is particularly suitable for medium and thin non-ferrous metal plates.
• 4.Desktop CNC plasma cutting machine is extensively used in machinery manufacturing, auto parts, hardware, sports equipment, advertising and other industries, with a high cost performance.

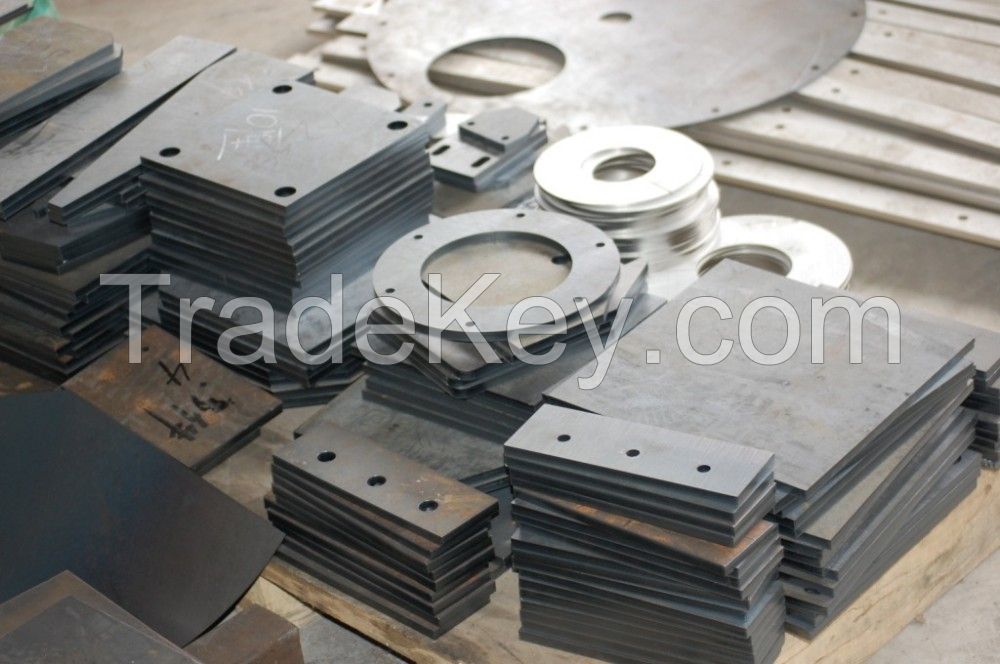

• Application Materials

  Galvanized sheets, white sheets, titanium olate, carbon steel, stainless steel, alloy steel, composte metal.

  Application Industries

  This machine can be used in ship building,construction equipment, transport equipment, aerospace industry, bridge building, military industry, wind power, structural steel, boiler containes making, agriculture machinery, chassis electrical cabinets, elevator manufacturing, textile machinery and environmental protection equipment etc.

  Feature

• 1. CNC plasma cutter machine adopts light-weight structural design, the structure has good rigidity, light weight and small motion inertia.
• 2.Desktop structure. Y axis adopts synchronous double-motor and driver, and X,Y,Z axises adopt linear guideways, stable transmission and high operational precision.
• 3.Mainly cut Three-dimensional LED advertising word, metal plates with groove characters and baseboards, and cutting accuracy lives up to excellent index.
• 4.Small cutting holes, tidiness and no-residue phenomenon, avoids shaping process at second time.
• 5.Fast cutting speed, high precision and low cost.CNC system with high configuration, automatic arc strike and stable performance, with above *9% arc strike success rate.
• 6.Support for standard G code path files which are generated by softwares such as Artcut, Artcam, Type3. DXF format files generated by softwares such as AUTOCAD can also be read through software transform. The controlling system adopts U disk to exchange processing files, operation is convenient and speedy.
• 7.Plasma power source and burning torch are equipped with famous domestic brands. and they are manufactured by factories with multi-termed national patent technology.
• 8.Training video available air plasma cutting machine , plasma cutting machine , cnc plasma power source.

• Technical parameter

  1	Cutting shape	any shapes
  2	LCD Display Dimension	7.0 Inches
  3	Effective Cutting Width (X axis)	***0mm
  4	Effective Cutting Length (Y axis)	***0mm
  5	Cross Beam Length	***0mm
  6	Longitudinal Rail Length	***0mm
  7	Cutting Speed	*****0mm per minute
  8	Plasma Cutting Thickness	****0mm ( Depends on plasma power source capacity)
  9	lifting body	1set
  *0	Drive Mode	bilateral drive
  *1	Cutting Mode	plasma
  *2	Ignition device	Auto ignition device
  *3	Height regulating device	Arc voltage height
  *4	File transmission	USB transmission
  *5	Nesting software	Fastcam standard
  *6	File transmission	USB
  *7	LCD Display Dimension	7"
  *8	Plasma Power Source	Ruiduncnc *5/*5/**5/**0/**0A
  *9	Plasma Air	Only pressed Air
  *0	>Plasma Air Pressure	Max. 0.8Mpa
  *1	Cutting precision	0.5mm National standard JB/T****5.***9
  *2	Control accuracy	0.*1mm
  *3	Power Supply Voltage/Frequency	**0V *0HZ
  *4	Rated Power Supply	***0W
  *5	Working Temperature	>**0C**0C. Relative Humidity, ***5%.
