Transformer Oil Filtration Oil Filters Oil Refiner Machine

It is suitable for oil recycling or oil filtration for transformer oil

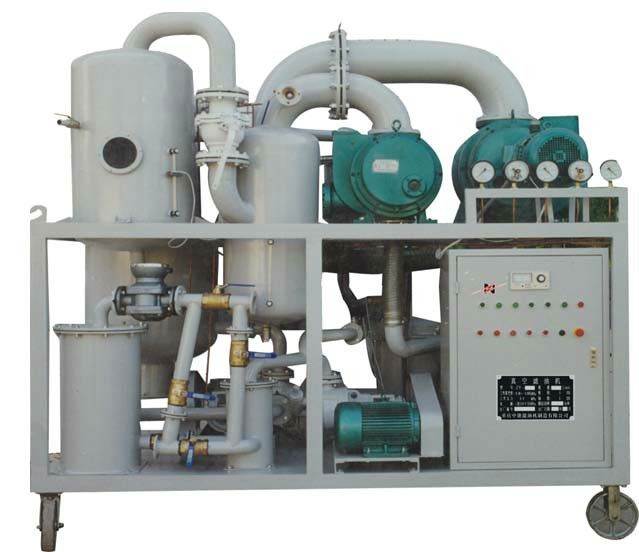

Transformer Oil Filtration Machine

They are suitable for oil treatment, vacuum oil injection, and cyclic hot-oil drying in the installation and maintenance of big transformers.

Oil Treatment Index:

1. Dielectrical Strength: ****5KV

2. Water Content: 3~5ppm

3. Gas Content: ≤0.2%

4. Particles Suspended: **3µm

Application:

1.Series ZYD Double-stage transformer oil purifier can quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength, effectively making sure electric equipments working safely and normally.

2.Series ZYD oil filter is particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil. It can be used for filtration of more than **0V substation live line work onsite. Meanwhile,

3.Series ZYD oil filtration system can be used as independent vacuum source with functions of vacuum drying and vacuum oiling.

Features:

1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa.
2. Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies.
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8. Functions of live line work onsite, vacuum drying and vacuum oil filling.
