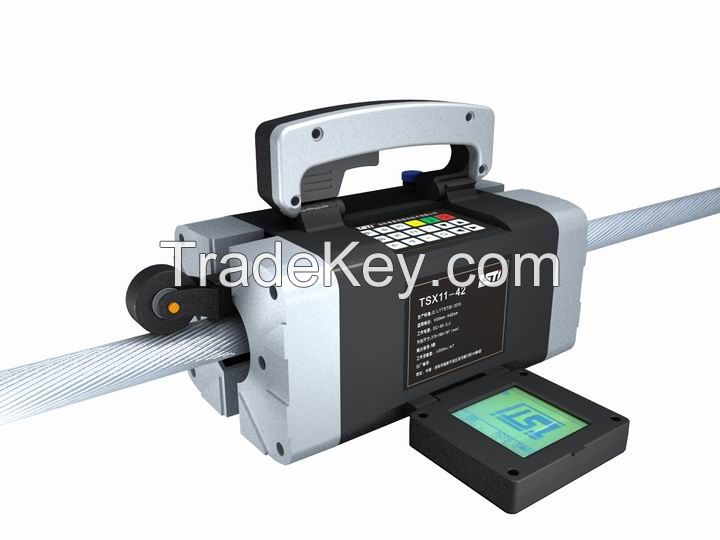

TST Flaw Detection System - Portable (FDSys.P)

Product Description

Product Description
 This product is applied for the portable non-destructive inspection of steel wire ropes in maintenance.

Product Feature
 For the nondestructive inspection of wire rope with diameter from ****0mm
 Detection environment regulated with M-Regulator.P;
 Detection powered by WiSensor.P;
 Portable detection of various flaw types including broken wires, corrosion, pitting, abrasion, fatigue, etc
 Instant monitoring and evaluation of detection with integrated Keypad and Screen
 Built-in signal processor for portable application - InfoBridge.P;
 Built-in and PC software evaluating and reporting for portable application - T-Arithmatica.P;

Product Specification/Models
 TS-X***2 for Rope Diameter ***2mm
 TS-X***4 for Rope Diameter ****4mm
 TS-X***2 for Rope Diameter ****2mm
 TS-X***0 for Rope Diameter ****0mm
 TS-X***0 for Rope Diameter ****0mm

Application
 Mining Hoist, Civil Cranes, Ropeways, Port Cranes, Offshore Wire Ropes, Dragline Shovel, other wire rope sites.

Other Information
 Inspection Speed: 0 - 3 m/s (or as limited for Safe Operation)
 Flaw Signals: Broken wire, Abrasion, Corrosion, Fatigue signals complying with Internationa Standards
 Flaw Detection:
 *9% Accuracy of Quantitative detection for flaw (LF, LMA) > 8%
 *5% Accuracy of Quantitative detection for flaw (LF, LMA) < 8 %
 **0% Repeatability of severe flaw signals
 *8% Repeatability of overall detected flaw signals
 Quantitative detection of internal flaws such as internal broken wires & fatigue
 Quantitative detection of external flaws such as broken wire, abrasion & corrosion
