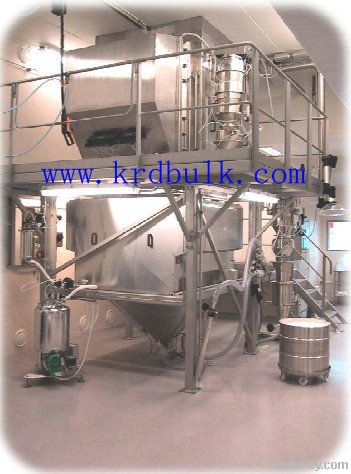

Tube chain conveyor

Product Description

For horizontal conveyors, the chains and disks generate horizontal thrust to push the materials. When the internal friction of material is greater than the external friction of material on tube wall, the material will move with the disks and form a stable flow.

For vertical conveyor, the chains and disks generate up thrust. The under-feeding pattern prevents the product falling and generates lateral pressure that will reinforce the internal friction. When the internal friction is greater than the external friction and the product dead weight, the product will move upwards with the disks and form a continuous flow.

Delivery capacity: 0.****0m3/h
Delivery Distance: ****0m (horizontal); ****0m (vertical)
Power: 0.***5KW

Tube Chain Conveyor System Feature:
1. Flexible: 3D with the tube chain conveyor
2. Sealed Pattern: dust-tight
3. Low Energy Consumption: low costs
4. Max Distance: ****0m horizontal or ****0m vertical
5. Capacity: **0 m³/h
6. No dead area
7. No metal on metal friction
8. Low maintenance costs
9. Long life time
*0. Explosion and pressure shock resistant design
*1. Possible re-start in filled state
*2. Minimal grain destruction


Advantages of tube chain conveyor system:
1. Positive-displacement conveying device can realize conveying and computing powder, easy centralized control, improving degree of automation and satisfying environmental protection requirements from modern enterprise.
2. Compact conformation, little space usage, tridimensional conveying direction available.
3. Flanges between inlet and outlet are airtight, then there is no need to install filter. There is no dust spread into environment.
4. Powder is conveyed smoothly along the lines with little internal movement. Therefore, there is little breakage against materials. Slow curve conveying make little material granule into chipping.
5. According to different feeding conditions, distance between inlets can exceed *0m.
6. Chain wheel has been under hardening with minimum abrasion
7. Special transfer dish with extremely low coefficient friction and stable delivery capacity.
8. All our tube chain conveyors use our own computer program for different parts such as conveying line and curve parts to maintain necessary static friction and pull-up and providing precise data to reach to low noise and little abrasion.

Application fields of tube chain conveying system:
Industry of Fine Chemicals: Pigment, dye, paints, coating, carbon black, titanium pigment, ferric oxide, ceramics powder, coarse whiting, fine particle calcium carbonate, bentonite, molecular sieve, kaolin, silica flower, active carbon and so on.

Pesticide Ore: Urea, ammonium chloride, ammonium bicarbonate, soda powder, solid pesticide, tungsten powder, pesticide adjuvants, copper fine ore powder, coal powder, rock phosphate, alumina powder and so on

Building Material: Cement, clay, yellow sand, quartz sand, clay powder, silica, limestone flour, dolomite fines, wood chips, fiberglass, silicon dioxide, French chalk and so on.

Foodstuff Industry: Flour, starch, grain, milk powder, food additive and so on.
