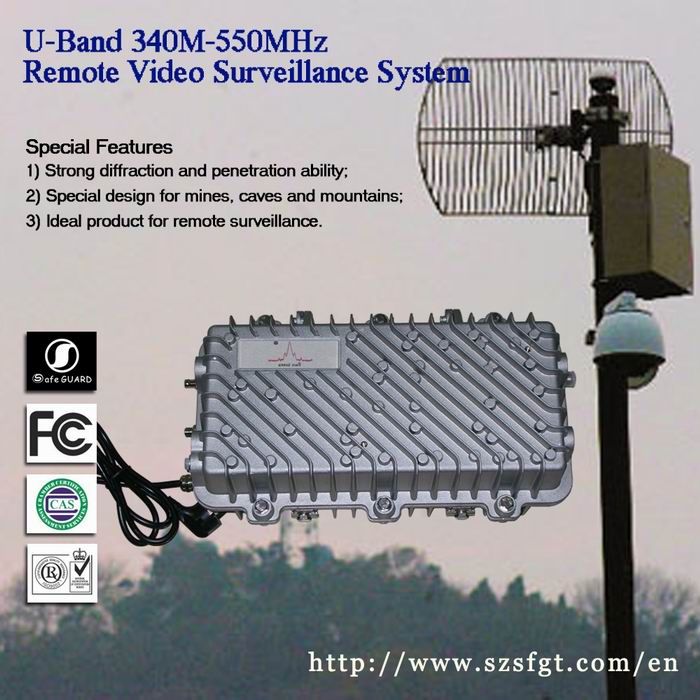

U-Band 340M-550MHz Long Range Outdoor Transmitter for Wireless Surveillance System
Â
Product Model: SG-F898
Special Features:
|
1 |
Common video interfaces, connect to an ordinary analogic camera directly. |
|
2 |
Water-proof, AC 220V(can be ordered 12-24V for solar power interface), adopted different cores in order to distinguish from other interfaces, prevent from destroying the equipment by accident. |
|
3 |
Use with 24dBi directional antennas. Transmit 35-50km in the general urban environment, 80 km on sea-level. |
Â
Specifications:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
|
Transmitter System Indicators |
|
|
Frequency |
340-550MHz(optional) |
|
RF Power |
10~50W |
|
Power Supply |
DC12V 2.5~8.5A / AC220V 1.5A |
|
Modulation |
FM |
|
Frequency stability |
0.0005%(standard) |
|
Impedance |
50Ω |
|
Phase *@******************** |
-75dBc |
|
Bandwidth |
20MHz |
|
RF Interface |
N |
|
Work environment |
-30~70 |
|
Video Format |
PAL |
|
Distance |
10-50km |
|
Size |
400*230*160mm |
|
Weight |
8kg |
Â
|
Receiver System Indicators |
|
|
Frequency |
340-550MHz(optional) |
|
Impedance |
75Ω |
|
Bandwidth |
20/8MHz(optional) |
|
Video Output |
Analogic AV signal |
|
Video Format |
4:3,16:9 |
|
Audio Output Frequency Range |
20Hz~20KHz |
|
Resolution |
Max 720x576 |
|
Standard |
ISO/IEC13818-3 |
|
Videography |
DVBTXTETSI/EN300472 |
|
Output Level |
1.0Vp-p |
|
Voltage |
110-240V / DC12-18V |
|
Volume adjustment |
20 levels to adjust |
|
Audio Output Impedance |
Low impedance |
|
Audio Output Level |
0dBm |
|
Current |
0.6A |
|
Input Level |
29~80dBuV |
|
Channel mode |
mono |
|
Audio mode |
mono |
|
Interface |
BNC |
|
Temperature |
-30~50°C |
|
Humidity |
0.96% |
|
Weight |
3KG |
|
Size |
290*190*100mm |
Â
|
Audio index |
|
|
Audio Output |
600ΩBalance/ 0.5vImbalance |
|
De-emphasis |
75us/50us |
|
Frequency corresponding |
50Hz to 15KHz(+/-0.5dB) |
|
Carrier frequency |
6.5MHz |
|
AV Interface |
BNC |
|
Distortion |
3% |
|
FM Noise |
-50dB |
Â
|
Video Index |
|
|
Video Output |
75 Ω unbalanced, 1.0Volt P-P |
|
Differential gain |
5% |
|
Differential phase |
5 |
|
SNR |
55dB |
|
De-emphasis |
CCIR STANDARD PAL |
Â
|
Packaging Details |
|
|
Accessories |
2*antennas (customized); 2*RF Cable. |
|
Style |
Paper carton |
Â
Product Installation Diagram:Â Â
Â
Â
Product Installation Diagram:Â
