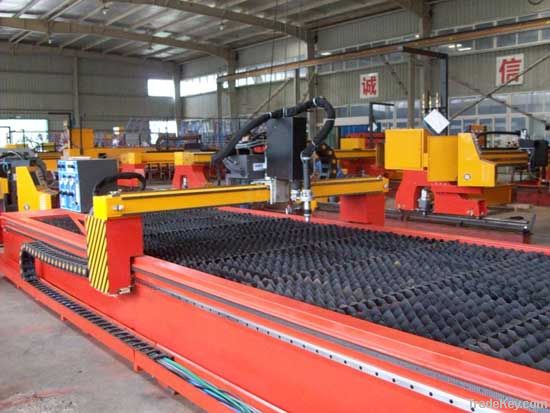

Under the CNC flame cutting machine under the CNC plasma cutting machi

Product Description

Flame cutting (gas + oxygen) suitable for cutting carbon steel A3 ordinary, thickness of ****0 mm is advisable. Within *0 mm thickness can be directly perforation, the optimal diameter hole *5 mm above.
Plasma cutting ability under plasma power to match and decide, our company to manufacture its own plasma power CUT***0, perforated capacity of *5 mm, suitable for cutting carbon steel, aluminum, copper and other conductive metal materials. Cooperate with the machine using optimal cutting hole diameter *0 mm above.
Technical parameters:
1, the voltage/frequency power / **0 V plus or minus *0% V / **0 W/frequency *0 HZ.
2, 3.5 inch LCD specifications.
3, a standard size effective cutting range:
XDCNC-A ***0 (wide) x ***0 mm (long);
XDCNC-A***0 (wide) x ***0 mm (long);
XDCNC-A ***0 (wide) x ***0 mm (long).
Effective cutting length are available upon request lengthen.
4, cut thickness ****0 MM (fire).
5, cutting speed *****0 mm/min.
6, plasma cutting thickness and decide on plasma power supply.
7, cutting way flame (oxygen + propane or oxygen and acetylene)
Plasma (configuration plasma cutting machine)
8, operation accuracy + /*0.2 mm/m.
9, mechanical processing accuracy + /*0.5 mm/m.
*0, and enumerates and raise the flame, electric raise (+ *0 mm).
*1 for oxygen + acetylene gas, or oxygen + propane.
*2, **0 KG weight host.
*3, the fuel gas pressure maximum 0.1 Mpa.
*4, oxygen pressure maximum 1.0 Mpa.
Second, the numerical control system
1, display 7 inches high resolution LCD monitor. Can show cutting and cutting the graphics
Cut running track. Operation more simplified.
2, key plate s operating mode.
3, support U plate transfer files.
4, support processing suspended, forward, backward, speed, and other functions.
5 and the system has the memory function and power back and function and automatic perforation cutting function.
6 and the system has manual and electric lift control adjustment function.
7, has cut seam compensation function.
8, M processing file storage space, meet all kinds of complicated to run the program and processing, easily handle the big the execution of the program.
9, high subdivision stepping motor driver, smooth movement, low noise, high precision operation.
*0, really high frequency interference against, adapt to all kinds of plasma models.
Three, part
1, the horizontal guide rail, vertical guide rail, host three major components.
2, the mainframe, machine box adopts full steel the magnetic structure, which can guarantee the numerical control system reliable and stable operation.
3, drive the stepping motor.
4, both horizontal and vertical guide using aluminum core shaft, inside a strengthening set, through the mechanics principle
The design, make its deformation.
Four, basic function:
Any power back, memory, and enumerates change to shift, cut the mouth, and enumerates perforation stay, and post
Meaning interrupt, etc. Above functions are to bring great convenience operator.
Five, programming software
Germany IBE set of material based on AutoCAD software automatically set of material system.
Is designed for all kinds of nc cutter with cutting software, the software to the maximum help users easily finish all kinds of complex components set of material, not only easy to use, but it also brings obvious economic benefits.
1, drawing methods: use AutoCAD powerful graphics functions of the component drawing and through the IBE set of automatic generation software needed for cutting G code.
2 process: the breakthrough point can choose edge cut or cut into the corner; Cut cut way can choose circular arc or linear cut; Cut seam compensation function can calculate the actual cutting track flame center; Can set arbitrary cutting paths and direction.
3, and the screen simulation: to all sorts of actual cutting process can be simulated process track on the screen, the cutting process, and can caling and move.
This product in the user does not have special requirements, and with standard acetylene cut mouth 0 #, 1 # and 2 #
I wish you, healthy body, the business is thriving!

Contact: guangzhou panyu district xin da seiko machinery factory
Mr.Zhao: + *6 **********5
To address: guangzhou panyu district ChenChong south street bridge industrial zone industrial avenue the road grabbing the left row number three
