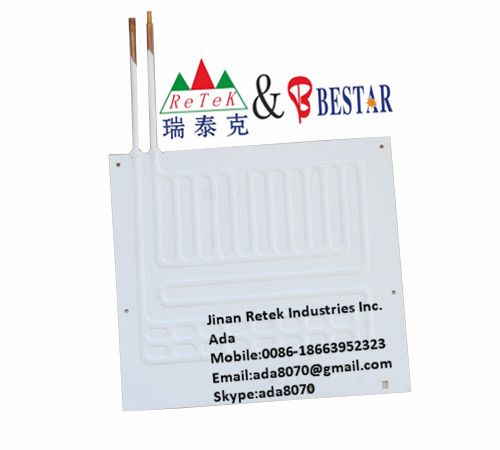

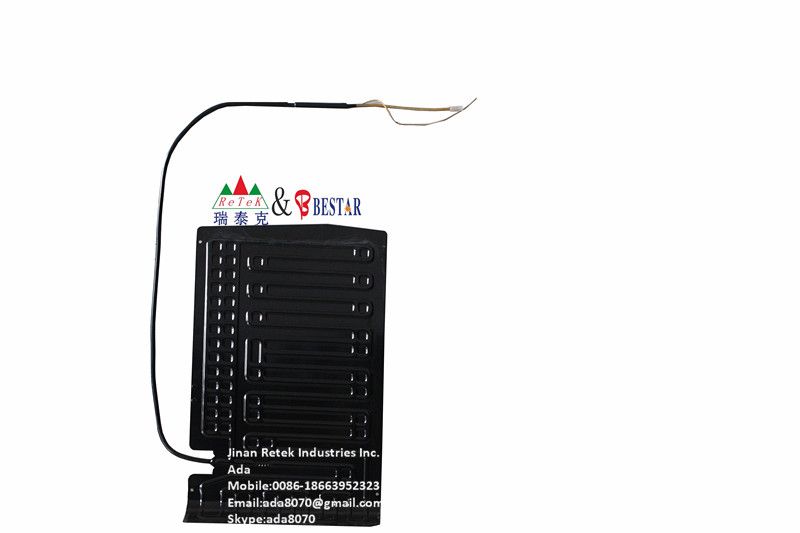

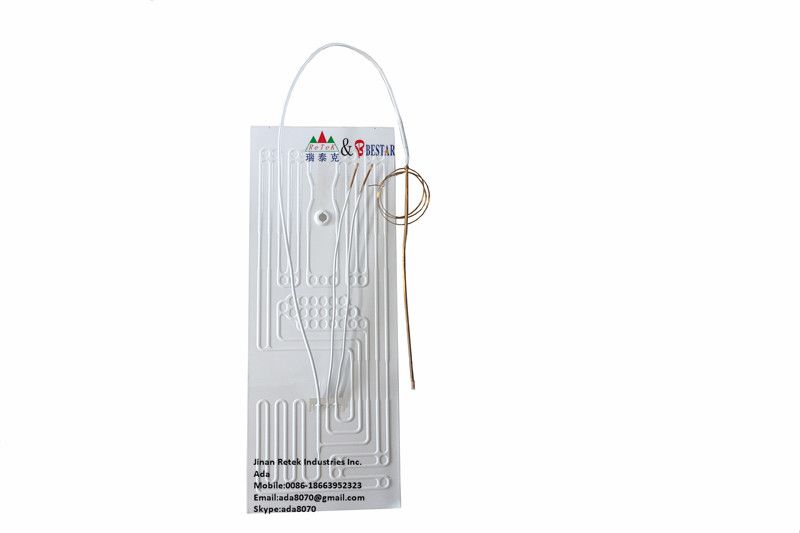

Universal Type Roll Bond Evaporator

Raw material

Al-plate: finished products thickness: 1.1 2.0mm,

raw material Al plate thickness: 1.4 2.5mm

Structure

  Double side rollbond evaporator,

  single side rollbond evaporator,

  part single side rollbond evaporator

Key process

Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing

Technical Standards

1) Size: width **0 (max), length ***0 (max)

2) Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models of roll bond evaporator.

Performance

1) Surface treated with powder painting to prevent the corrosion

2) Inner cleanness can meet the requirement of R**4a & CFC cooling system.

3) Can satisfy the cooling capability requirements.

Capacity

3.5 million sets per year (****0 sets per day)
