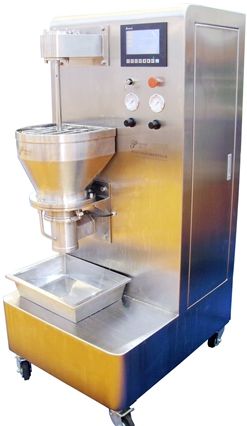

vertical rotary extruder

Introduction

Extruder also is called extrusion machine.
We offer you vertical rotary extruder, which is much better than screw extruder. There are two types: for laboratory, and for production line.

Powder materials, excipients, wet adhesive and homogeneous mixes loose or group shape soft wood in the shaft feeder driven into the extrusion bin, the extrusion press of extrusion through the orifice plate, form dense different length of cylindrical extrudate.

Characteristics

1.continuous operation, high production efficiency.

2. extrusion uniform, density, high rate of finished products.

3. and screw extrusion machine, compared to vertical rotation of the extruder extrusion material basic no fever, For heat-sensitive materials for rapid no hot extrusion, than screw extrusion confidential good, don't cooling, won't have orifice burst (double screw extrusion orifice plate easy blowout use cost is high, not easy installation).

4. safety performance is high, have protection function.

5. a variety of aperture of the mesh plate, can squeeze out 0.5 mm to 3.0 mm cylindrical strings.

		LXJ-40	LXJ-80	LXJ-120	LXJ-150	LXJ-200	LXJ-300	LXJ-400
最小投料量 （Minimum Feeding Capacity)	kg	0.15	0.3	0.5	0.5	1	2	2
产量(Output) （以Φ0.8为例）	kg/h	≤50	≤80	≤120	≤150	≤260	≤360	≤500
孔径（Aperture)	mm	Φ0.4～3.0	Φ0.5～3.0	Φ0.5～3.0	Φ0.5～3.0	Φ0.5～3.0	Φ0.6～3.0	Φ0.6～3.0
电源(Power)	V/hz	380/50
转速 (Rotating speed)	R/min	5～95
物料收率 (Material yield)	%	≥99%
噪音(Noise)	Db	＜45	＜45	＜45	＜60	＜60	＜60	＜60
外形尺寸 (dimension L*W*H)	mm	860×700×1600	950×800×1600	1350×1000×1620	1350×1100×1620	1500×1100×1650	1650×1150×1650	1650×1200×1650
重量(net weight)	kg	380	600	800	1000	1200	1500	1800
