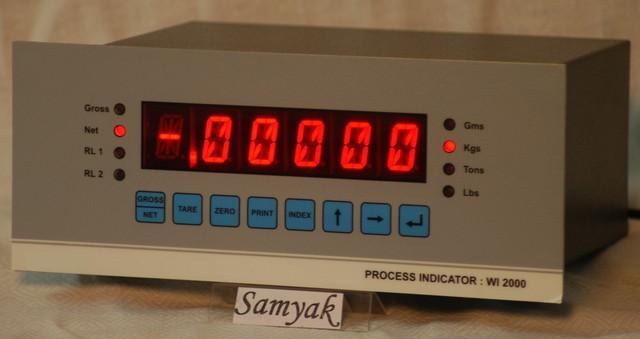

WEIGHT INDICATOR

Product Description

This is a microcontroller based Indicator unit. It is highly versatile, accurate. It displays analog signal (mV) form the load cell into engineering values. Features: On-board high resolution ADC. Filtering: Analog & Digital Sampling: *5 readings/second Power Supply: ******0VAC, *0 Hz. Input: *-wire Load cell, Up to Four Single Load cell with **0 Ohms Resistor Outputs:One Relay outputs for Set Point. Retransmission: ***0 mA/***0V Proportional indicated weight Remote for GROSS/NET, TARE and Zero Functions Display: *-digit **-segment 0.8” Red LED Decimal position: Selectable. Key board: Eight keys membrane keypad Programmable Parameters: Decimal Point, Capacity, Display Resolution, Grad, Zero Track Band, Zero Range Configuration Data are stored in serial NVRAM, Battery back up not required Calibration through software (Offset: ‘Z’ & span: ‘S’ stored in NVRAM) Different Password for Calibration & normal operation Serial Port for communication with remote display/ Printer/ Computer using RS***5 Enclosure: Metallic, Powder coated, General Purpose, Panel Mounting type Dimension: Outer: **1 (W) x **5 (H) x **5 (D) Cut-out: **0 mm (W) x *3 mm (H) Other model: WI****7 Dimension: Outer: **4 (W) x *2 (H) x **5 (D) Cut-out: **8 (W) x *6 (H)
