IPU57W ultrasonic level indicator  have beautiful appearance, stability performance; explore proof design and good measurement function. Isolated power supply by industrial instruments, all of the output,  lines with lightning protection, overvoltage, over current protection circuit functions. Transmitter function of small, weak energy, high sensitivity, bearing small; a complete sensor system can accurately complete the objects in different environments continuous non-contact measurement; small blind, high accuracy, wide application, send and receive integrated, which can accurately receive weak echo signals to ensure the accuracy and reliability.Â
Â
| Features: |
| Ultrasonic Part Parameter |
| Functions | Integrative Type |
| Level Range: | 5M, 10M, 15M, 20M,30M, 50M. |
| Accuracy: | 0.5%F.S |

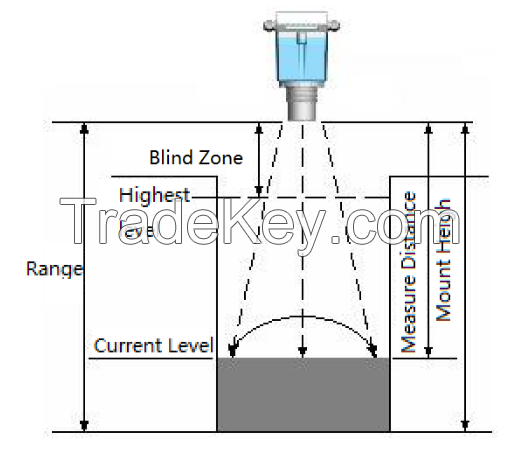

| Blind Zone: | 0.2-0.6m |
| Working Pressure: | 2 Bar (Explore Proof Type is 5 Bar) |
| Resolution: | 3mm or 0.1%F.S (Max of them) |
| Display: | English language display:Level measurement, distance measurement, transmission value, ambient temperature, echo state, alarm display, algorithm selection. |
| Analog Output: |
4~20mA/750Ω load resistance (2 wire) RS485 |
| Relay /Alarm Output: |
AC 250V/ 8A; DC 30V/ 5A; State programmable |
| Power Supply: |
24VDC       120mA  12VDC (available to offer power by motor, battery or solar power and so on.) |
| Environment Temperature: |
Meter: -20~+60°C Sensor: -20~+80°C |
| Communication: | 433M Wireless Communication |
| Explore Proof: | Ex(ia)ⅡCT6 |
| Water Proof: |
Economic Type: IP65 Standard Type: IP66 |
| Cable of Sensor: | Null |
| Sensor Installation: | By level range and model code |
| Store Request: |
Temperature: -20~+80°C Pressure: atmospheric pressure Humidity: ≤90%RH Others:Non-corrosive gases (optional corrosion probe) or steam, no vibration. |

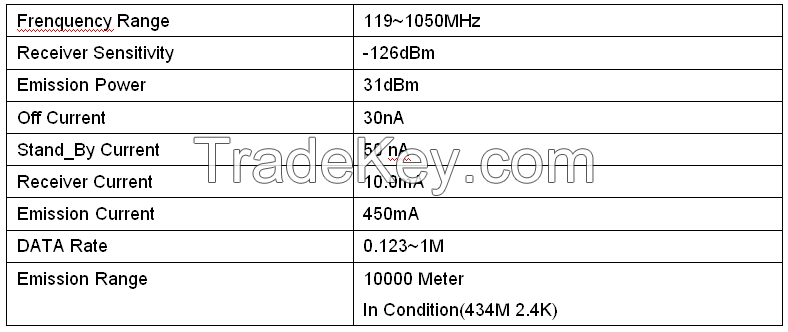

| Wireless Part Parameter |
| Electrical Connection |
| Instruction: |
| Software interveiw: |
