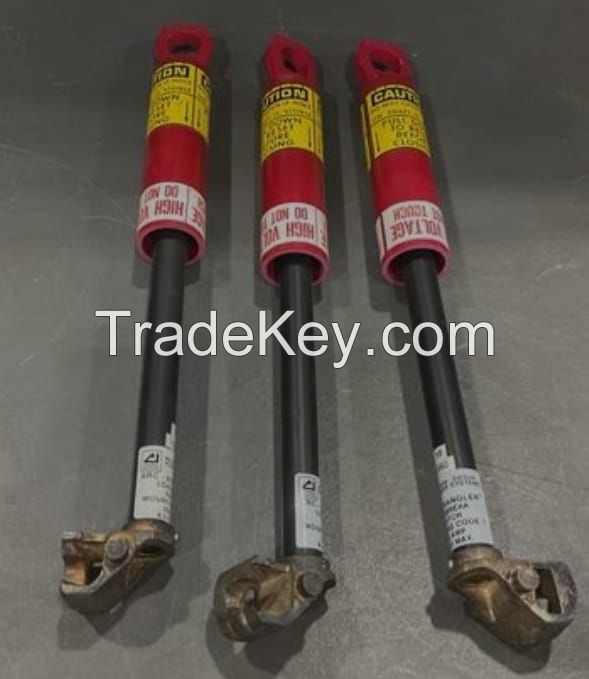

arc strangler switch blade, limiting fuse

Product Description

GENERAL

M and B Manufacturing Arc Strangler switch blade load breaking device is a specialized tool used primarily in electrical maintenance and safety. Here are some key points about it:

Functionality:Designed to safely disconnect power from electrical circuits, it allows for the isolation of electrical loads while minimizing the risk of arcing or other electrical hazards.

Construction: Typically made from durable, insulated material to ensure safety during operation. It may feature ergonomic grips for ease of use.

Application: Commonly used by utility workers and electricians when performing maintenance or repairs on live system. It helps ensures that workers can safely manipulate load connections without exposing themselves to high voltage.

INSTALLATION

Installing a load breaking switch blade involves several steps to ensure safety and proper functionality. Heres a general guide to help you through the process:

Tools and Materials Needed

• Load breaking switch blade

• Insulated tools

• Safety gear (gloves, goggles, etc.)

• Mounting hardware

• Electrical connectors

• Torque wrench

• Voltage tester

Installation Steps

1. Safety First:

o Ensure all power is disconnected before beginning installation.

o Use appropriate personal protective equipment (PPE).

2. Prepare the Installation Area:

o Clear the area of any debris and ensure its dry.

o Verify that the mounting location is suitable and complies with local regulations.

3. Mount the Switch Blade:

o Securely mount the load breaking switch blade to the designated structure or pole using the provided hardware.

o Ensure its level and properly aligned.

4. Connect the Electrical Wiring:

o Use a voltage tester to confirm that no voltage is present.

o Connect the incoming and outgoing conductors to the switch blade terminals, ensuring proper polarity.

o Tighten connections using a torque wrench to the manufacturers specified torque settings
