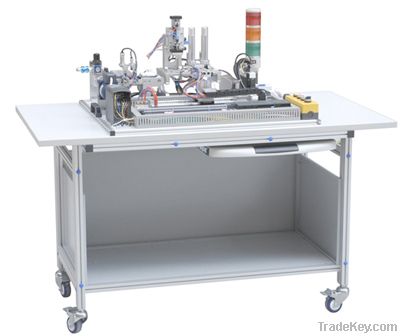

Product Description
1.Characteristics of the equipment
1.1 The equipment is consisted of multiple techniques
related to automatic control system, including PLC application,
servo control, frequency transformation, communication, sensor
application, and pneumatic techniques etc.
1.2 The overall equipment is small, designed compactly and
reasonably, and is also very cost-effective. The equipment is
very suitable for training, testing and teaching in schools and
satisfies the requirements for working space.
1.3 Rich training contents: the equipment satisfies the
requirements for different lessons and projects in real training
and testing activities. It can complete kinds of training and
testing projects.
1.4 Good teaching and training guide book: according to
the teaching schedule in schools, we provide multiple reasonable
training and testing projects and guidance, from the shallow into
the deep, easy to difficult, step by step, and with different
structured levels. It is a great assistant in daily teaching
activities in the institutions.
2.Introduction of each station
2.1 Control station: this station is consisted of PLC
host, servo driver, control switch, regulator switch, power and
alarm indicator.
2.2 Transport station:this station is consisted of linear
transport robot, solenoid valve and servo motor assembly. Its
main function is to transport the workpiece from the feeding
station to processing station for punching processing, and then
transport the punched workpiece to the sorting and storing
station for further processing.
2.3 Feeding station: This station is consisted of the two
main components: brackets and feeding mechanics. The feeding
mechanics is consisted of sensors, pneumatic components and
solenoid valve.
2.4 Processing station: this station is mainly consisted
of a simulation of stamping machines and corresponding sensors,
and its function is to complete stamping workpiece. When the
workpiece is delivered to the working place by the manipulator,
it punches the workpiece.
2.5 Sorting and storing station:
2.5.1）Sorting and storing station of Yalong YL****-II
Automatic Production Line Training & Testing Equipment:
this station is mainly consisted of a linear belt conveyor, a
sorting mechanics for finished product, a two-slide storage for
finished product and a converter. Its function is to
transport the finished product delivered by manipulator to
corresponding storage according to different materials.
2.5.2）Sorting and storing station of Yalong YL****-III
Automatic Production Line Training & Testing Equipment:
this station is mainly consisted of storage unit. The function of
sorting finished product is completed with the help of
manipulator.
3.Key technical parameters
3.1 AC power: AC **0V±7% *0 Hz；
3.2 Temperature: **0 ~ *0 ℃; Environmental humidity: ≤
*0%;
3.3 Size:
3.3.1) Yalong YL****-II Automatic Production Line Training
& Testing Equipment: length×width×height=**0×**0×**0
mm（not including the training and testing desk）
3.3.2) Yalong YL****-II Automatic Production Line Training
& Testing Equipment: length×width×height==***0×**0×**0
mm（not including the training and testing desk）
3.4 Machine power:≤ ***0 VA;
3.5 Security measures: ground fault protection, leakage
protection, in accordance with the relevant national standards.
