Chelsea PLF90 High Precision High Torque Planetary Gearbox Reducer Gear Ratio 4:1 to 100:1 Chelsea PLF90 High Precision High Torque Planetary Gearbox Reducer Gear Ratio 4:1 to 100:1 Chelsea PLF90 High Precision High Torque Planetary Gearbox Reducer Gear Ratio 4:1 to 100:1 Chelsea PLF90 High Precision High Torque Planetary Gearbox Reducer Gear Ratio 4:1 to 100:1 Chelsea PLF90 High Precision High Torque Planetary Gearbox Reducer Gear Ratio 4:1 to 100:1
Next

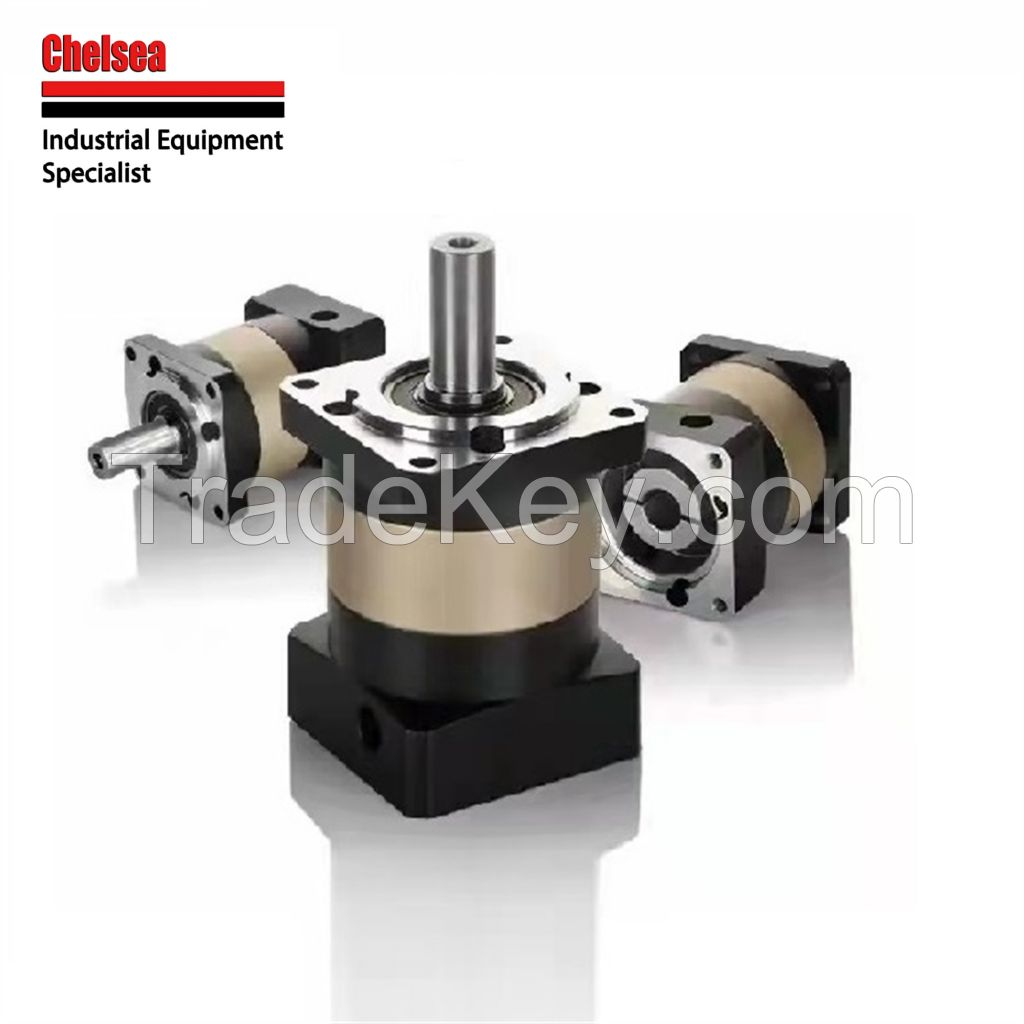

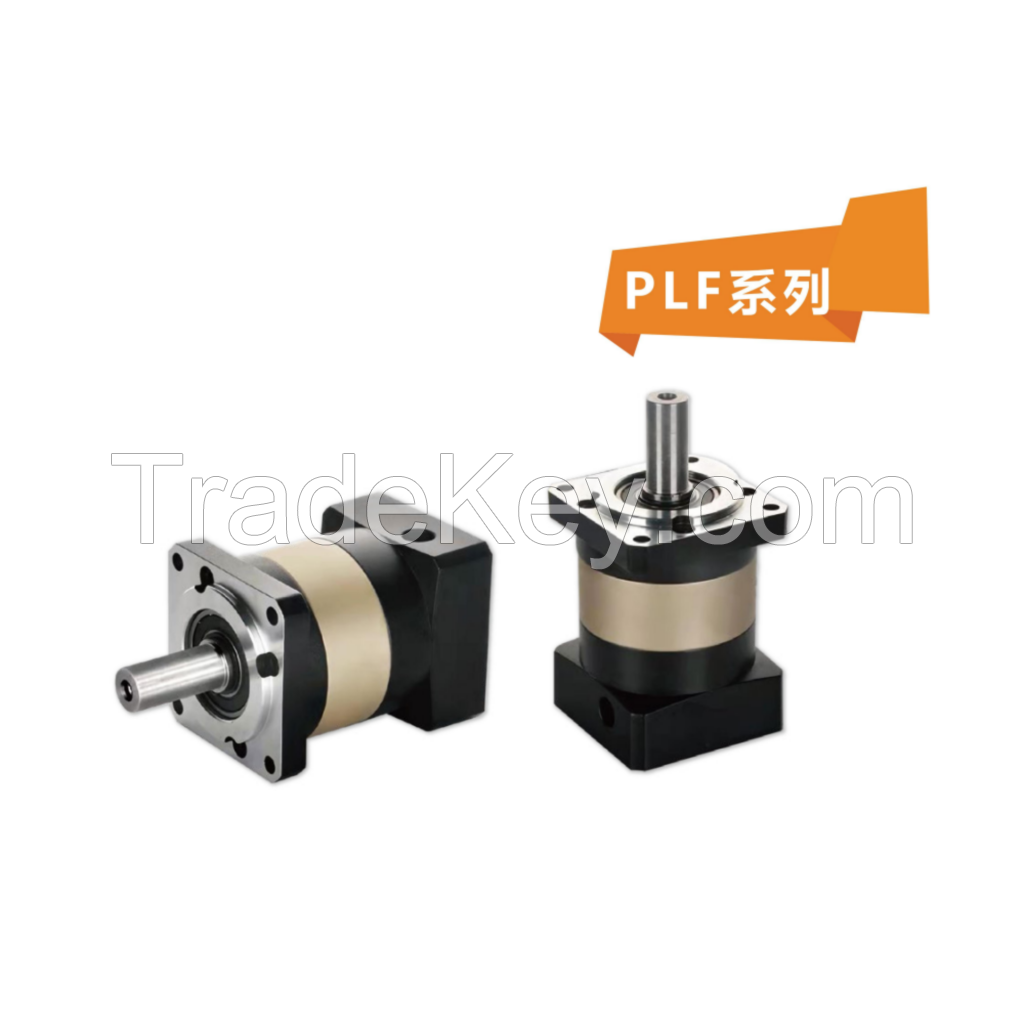

Chelsea PLF90 High Precision High Torque Planetary Gearbox Reducer Gear Ratio 4:1 to 100:1

FOB Price

Get Latest Price

40.99 ~ 55.99 USD / ( Negotiable )

|

1 Piece Minimum Order

Country:

China

Model No:

PLF90

FOB Price:

40.99 ~ 55.99 USD / ( Negotiable ) Get Latest Price

Place of Origin:

China

Price for Minimum Order:

40.99

Minimum Order Quantity:

1 Piece

Packaging Detail:

Carton

Delivery Time:

5-7 daye

Supplying Ability:

2 Twenty-Foot Container per Month

Payment Type:

PayPal, D/P, L/C, T/T

Product Group :

Planetary Series

Contact Now
Chenyue (Jiangsu)Technology Co., Ltd.

Chenyue (Jiangsu)Technology Co., Ltd.

China

3000 Trust Points
1st Year

Contact Person Ms. Sophia

No.10,Jinlang Road,Shuyang County,Jiangsu Province,China, Suqian, Jiangsu

Contact Now

Product Specification

  • Brand Name: Chelsea
  • Gearing Arrangement : Planetary
  • Output Torque: 54-142Nm
  • Input Speed: 3000rpm
  • Output Speed: 30-750rpm
  • Color:Picture attached
  • Model:PLF90
  • Certification:RoHS/CE/IAF/CNAS/ISO9001/ISO45001/ISO14001
  • Seaport:Qingdao,Shanghai,Lianyungang
  • Origin:China
  • Input size:19mm
  • Output size:20mm

Product Description

Key Features:

  • Precision engineered gear teeth ensure smooth power transmission
  • Reinforced housing provides exceptional structural rigidity
  • Optimized load distribution handles heavy rotational forces
  • Standard flange pattern allows direct motor mounting
  • Advanced sealing technology prevents lubricant leakage
  • Tool-free access simplifies inspection and servicing
  • Input size: *9mm
  • Output size: *0mm
  • Rated Output Torque:*****2Nm
  • Certification:RoHS/CE/IAF/CNAS/ISO***1/ISO****1/ISO****1
  • Delivery time: 5 days
  • Ratio Range: 4:1, **0:1

Key Benefits:

  • Consistent performance reduces operational downtime
  • Heavy-duty construction extends product lifespan
  • Energy efficient design lowers power consumption
  • Universal mounting saves installation time
  • Reliable operation in demanding industrial environments
​Contact detail:
If you need special customization or have requirements for delivery time, please contact account sales manager.

Country: China
Model No: PLF90
FOB Price: 40.99 ~ 55.99 / ( Negotiable ) Get Latest Price
Place of Origin: China
Price for Minimum Order: 40.99
Minimum Order Quantity: 1 Piece
Packaging Detail: Carton
Delivery Time: 5-7 daye
Supplying Ability: 2 Twenty-Foot Container per Month
Payment Type: PayPal, D/P, L/C, T/T
Product Group : Planetary Series
