FOB Price
Get Latest Price30000 ~ 60000 USD / Piece ( Negotiable )
|1 Unit Minimum Order
Country:
China
Model No:
-
FOB Price:
30000 ~ 60000 USD / Piece ( Negotiable ) Get Latest Price
Place of Origin:
China
Price for Minimum Order:
30000 per Piece
Minimum Order Quantity:
1 Unit
Packaging Detail:
wood box
Delivery Time:
40 days after receive advance payment by TT
Supplying Ability:
12 Unit per Month
Payment Type:
T/T
Product Group :
-
Contact Person Sun
Qingdao, Shandong

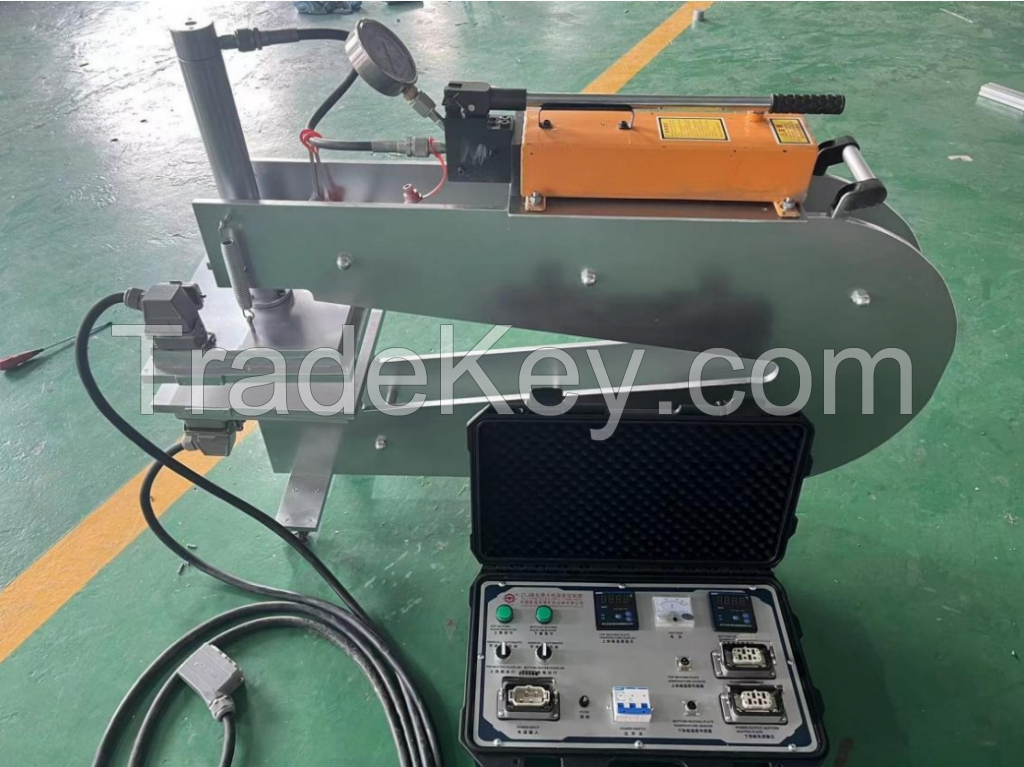

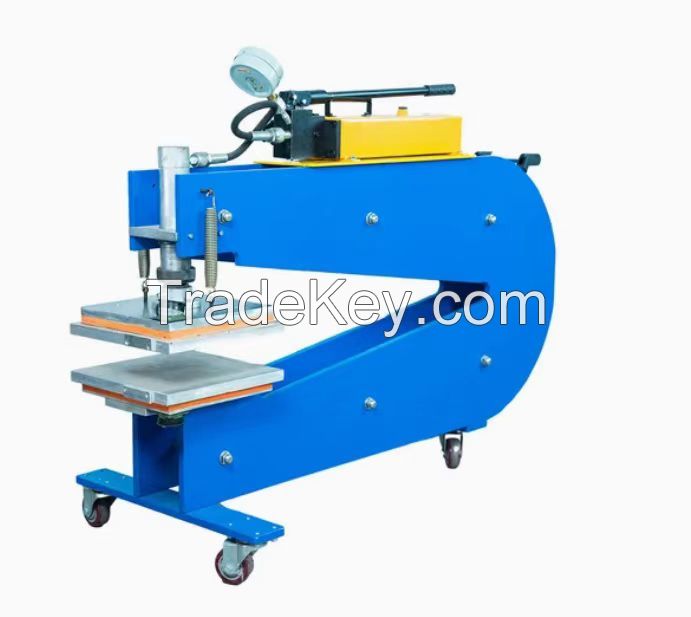

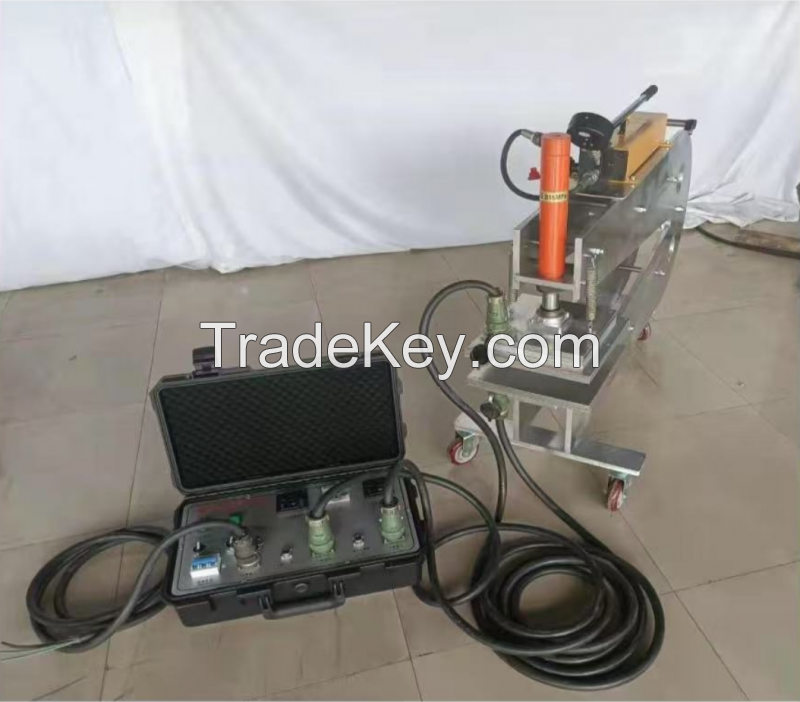

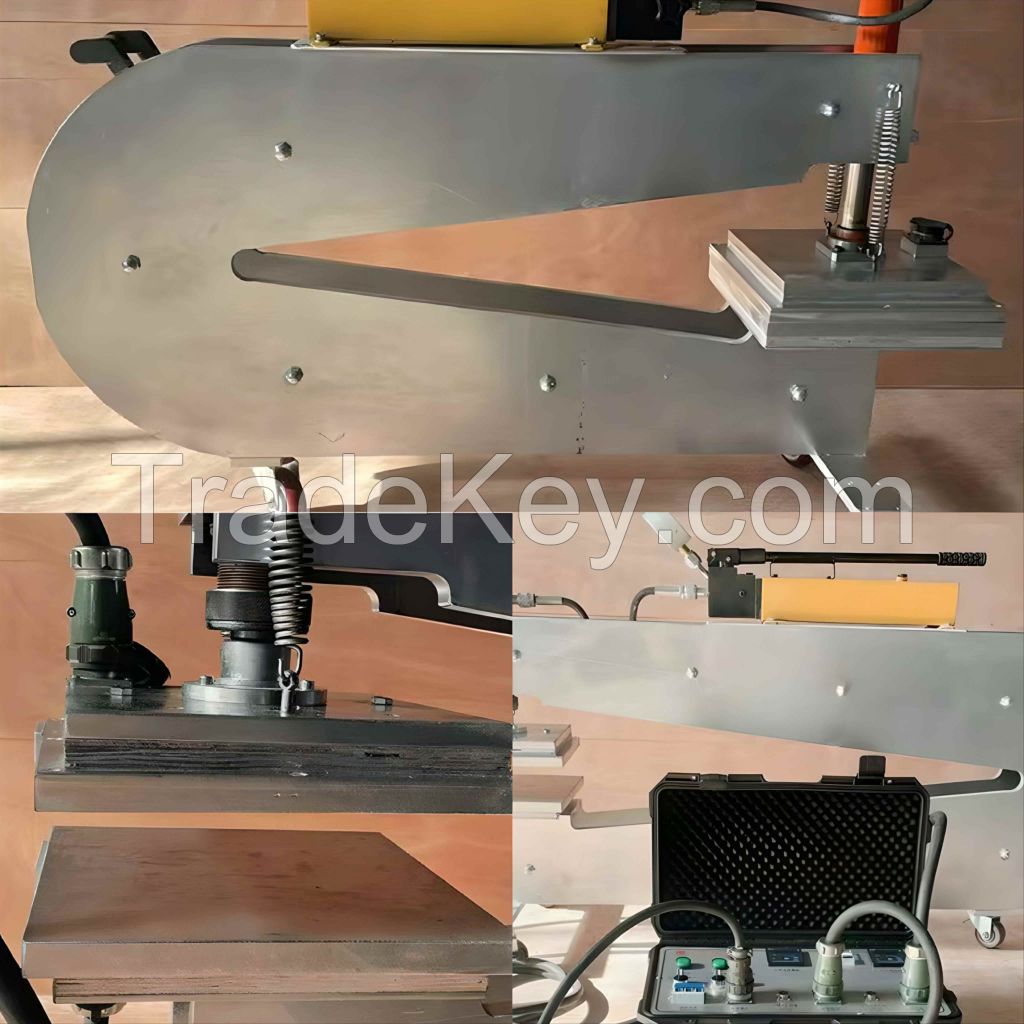

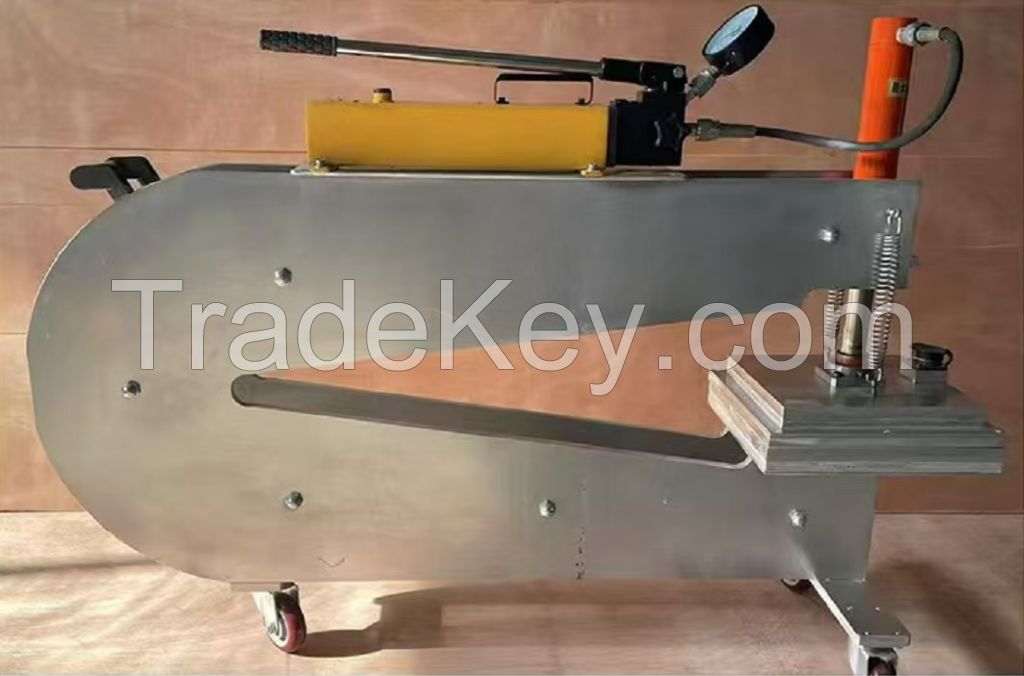

Compact Spot Conveyor Belt Repair Presses (U
Type)
In light-weight construction for spot repairs on rubber conveyor
belts. All the parts use aluminum. Particularly
easy-to-transport due to the low weight of the single
parts.
Transportation by only one person is possible, as there are only
two components and light weight.
For max belt width under 1500mm and under 2000mm,
2 size.
With pressure bag for steelcord belt repairs or mechanical
structure for low pressure requirements.
Compare with belt vulcanizer, it used smaller controller, also with
temperature and time automatic control.
Compare with old spot repair press, the whole structure use
aluminum alloy, easy operation and light weight.
Pressure: 0.3~0.5Mpa
Power 1.6~1.7KW
Voltage: Single phase 220V or 380V
Heating platen dimension: 350*350mm, can use for broken size
250*250mm, ( repair presses use 300*300mm heating
platen)
Special requirements: Voltage, Pressure, Temperature, Heating
platen dimension etc. we can make special for you, if you have any
requirements.
Technical Parameters:
| Dimensions | |
| XRH-350*350 | |
| Heating Platen Size | 350mm*350mm*28mm |
| Heating Platen Angel | 90 Degree |
| Clamping Force | 8kg/m2 |
| Net Weight With Package | 110kg |
| Packing Size | 1300mm*700mm*1000mm |
| Origin | China |
| Country: | China |
| Model No: | - |
| FOB Price: | 30000 ~ 60000 / Piece ( Negotiable ) Get Latest Price |
| Place of Origin: | China |
| Price for Minimum Order: | 30000 per Piece |
| Minimum Order Quantity: | 1 Unit |
| Packaging Detail: | wood box |
| Delivery Time: | 40 days after receive advance payment by TT |
| Supplying Ability: | 12 Unit per Month |
| Payment Type: | T/T |
| Product Group : | - |
