Product Description

TOPTECHEScompany is a famous leading manufacturer ofmining metal detector, tunnel metal detector, textile / pharmaceutical / plastic industrial metal detector, paper metal detector, concrete metal detector, food metal detector, clay metal detector, timber metal detector and coal industry metal detector head.


SOTUEmodelON799 industrial tunnel conveyor type metal detector head

Its series products adopt the international advanced technology and micro-chip digital signal processing technology, adopt know-how of high sensitivity and intelligentized location show and counting system. Products have very strong anti-interference capability, to suit more complex environment use.

Features:
1. LCD control panel gives you good operation environment. Real time level display. Automatic counter function. Automatic checking function.
2. When sensors detect a broken needle or a ferrous or magnetic material, an alarm signal can be given out.
3. Designed for universal AC power supply (full range).

4. When the broken needle or other ferrous or magnetic metal is found, the machine gives out an alarm, at the same time, this conveyor belt stops or returns automatically.
If the alarm is given out normally, the probe will give out a light to indicate a object place where the broken needle or other ferrous metal or magnetic metal is. Twelve grades sensitivity adjustment.

Application:
To inspect toys, shoes, hats, non-woven products, high elastic cotton clothing, paper, plastic plates, cement, sewing products, pharmaceutical products, chemical products, rubber products, food products, coal & mining and other detection items, it can be installed directly in a production line.

When this detector detects metal object on the production line conveyor belt, it will warn, an outside LED lightof the detector head on the conveyor belt shows the general location of the metal, it has the alarm displays of multiple LED lights, when a LED light is bright, it tells you the present location of metal object on the conveyor belt, thus, a worker is easy to clear metals.

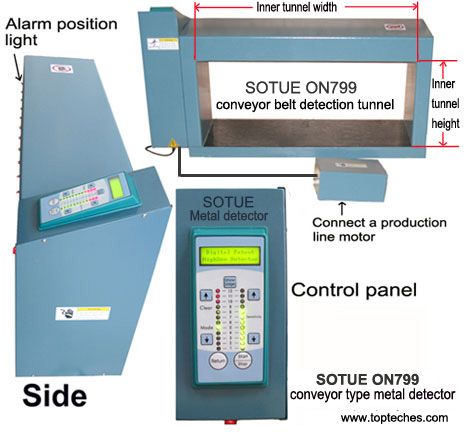

We adopt a most advanced digital technology to produce it with an exclusive design, it owns alarm position show lights (as shown down: Alarm Position Light show photo ).



Technical data:
Detection adjustment : automatical adjustment. Alarm method: light show position. Power supply: AC 110-240V, 50-60 HZ. Weight: Appr. 100 ~ 250 kg.

Tunnel detection width: 600mm, 800mm, 900mm, 1000mm, 1100mm, 1300mm, 2100mm for selection.
 Tunnel detection height-------------Tunnel detection sensitivity
100mm -------------------------------------Feφ≥0.8mm
120mm -------------------------------------Feφ≥0.8mm
150mm -------------------------------------Feφ≥1.0mm
200mm -------------------------------------Feφ≥1.2mm
250mm -------------------------------------Feφ≥1.5mm
300mm -------------------------------------Feφ≥1.5 ~ 2.0mm
350mm -------------------------------------Feφ≥2.0 ~ 2.5mm
500mm -------------------------------------Feφ≥3.0mm
600mm -------------------------------------Feφ≥4.0mm
700mm -------------------------------------Feφ≥5.0mm
800mm -------------------------------------Feφ≥6.0mm
900mm -------------------------------------Feφ≥7.0mm
1000mm -----------------------------------Feφ≥8.0mm

Technical standards:
1. Conform to EN 60950-1: 2006+A11: 2009 electrical product safety international standard. Anti-jamming conforms to EN 50082-1 international standard.
2. Conform to EN 61000-3-2:2006+A2:2009 and EN 61000-3-3: 2008 product safety international standards.
3. Conform to EN61000-6-1:2007 product immunity international standard. Radiation conforms to EN61000-6-3:2007 product emission international standard.
