Product Description

 XQV post tension anchor :
1 )Standard :GB/T14370-2015、ISO、CE、CQC

-We can add product certifications according to different countries and requirement.

2)Type: wedge-type anchorage/Bearing type anchorage /Grip-wrapped anchorsage(adhesive anchors)/Customizable anchorage

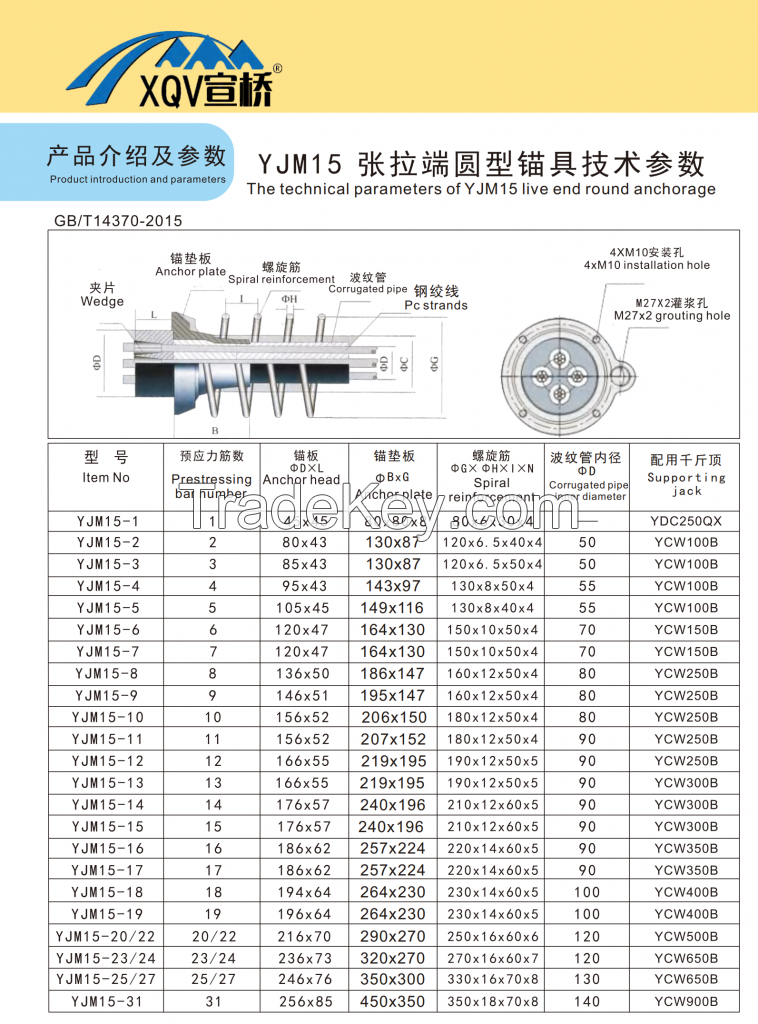

3) Technical Specification:


4 X M 1 0
4xM10 installation hole
   Item No 预应力筋数
Prestressing bar numberr
锚板
ΦD×L
Anchor head
锚垫板
φBxG
Anchor plate
螺旋筋 φG×ΦH×I×N
Spiral
reinforcement
波纹管内径 ΦD
Corrugated pipe
inner diameter
配用千斤顶
Supporting
jack
YJM15-1 1 45×45 80×80×8 80x6×30×4 YDC250QX
YJM15-2 2 80x43 130x87 120×6.5×40×4 50 YCW100B
YJM15-3 3 85×43 130x87 120x6.5x50×4 50 YCW100B
YJM15-4 4 95×43 143x97 130×8x50x4 55 YCW100B
YJM15-5 5 105×45 149x116 130×8x40x4 55 YCW100B
YJM15-6


6
120×47 164x130 150x10×50×4 70 YCW150B
YJM15-7 7 120×47 164x130 150×10x50×4 70 YCW150B
YJM15-8 8 136×50 186x147 160x12x50x4 80 YCW250B
YJM15-9 9 146×51 195×147 160×12×50×4 80 YCW250B

Country: China
Model No: YJM15-7
FOB Price: 10 ~ 30 / Piece ( Negotiable ) Get Latest Price
Place of Origin: China
Price for Minimum Order: 10 per Piece
Minimum Order Quantity: 1 Piece
Packaging Detail: wooden box
Delivery Time: 15-30 busness days after received payment
Supplying Ability: 1000000 Piece per Month
Payment Type: PayPal, Western Union, L/C, T/T
Product Group : anchorage
