Product Description
产品名称：RJ45 以太网电缆适配器 Cat6 Cat5e 直通连接器 180 度 90 度 8P8C 圆形网络
双通面板安装型
Brief Description

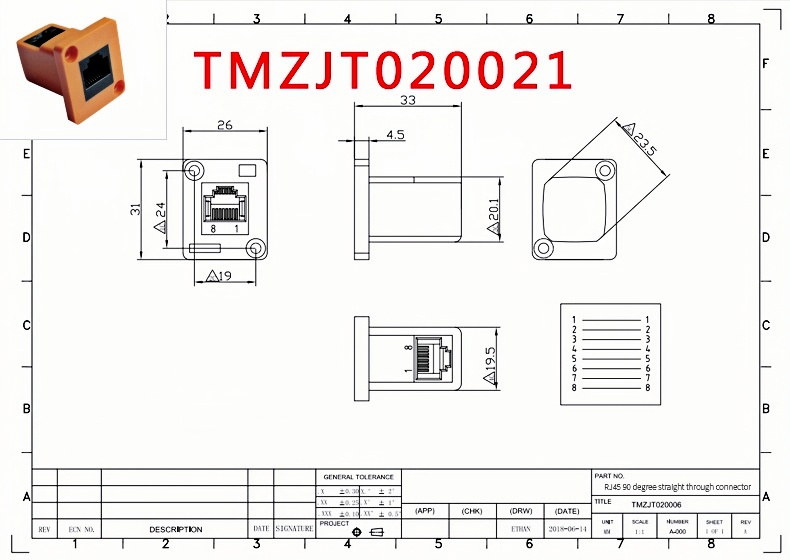

1. Drawings can be provided.
2. FTDI chip is adopted.
3. Industrial-grade quality.
4. From a certified factory.
5. Phosphor bronze gold-plated contact parts.
6. The number of cores is 8.

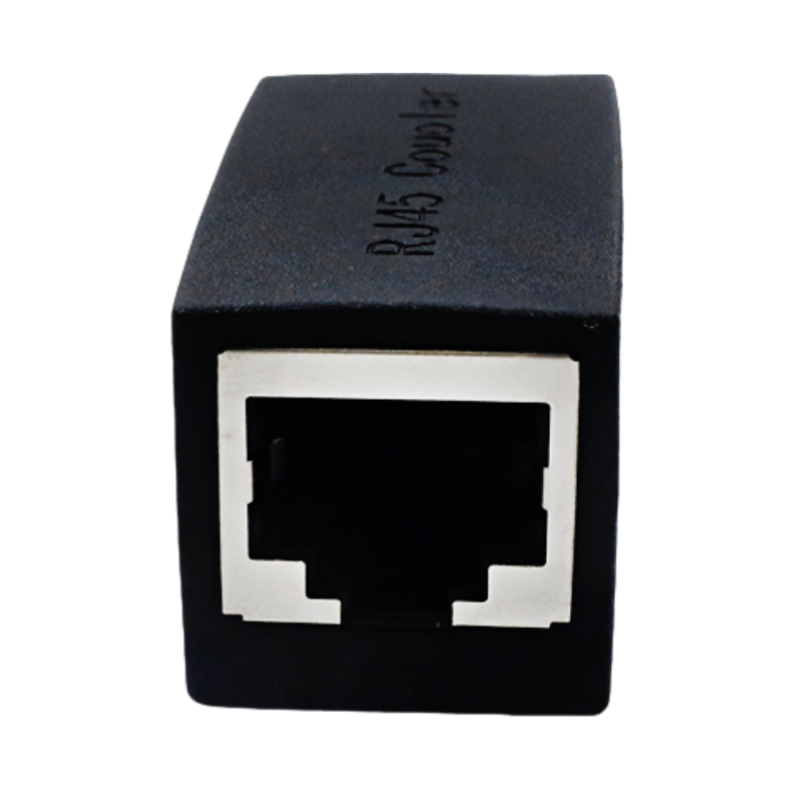

RJ45 network cable adapters
cat6 and cat5e straight-through connectors
8P8C circular adapters
180-degree and 90-degree panel-mounted adapters
Network double-pass panel-mounted adapters
1. Rated current: 1.5AMPS
2. Rated voltage: 125VAC
3. Insulation resistance: > 500MΩ
4. Withstand voltage strength: AC 1000V, 50HZ or 60HZ for 1
minute
5. Contact resistance: < 20MΩ
6. Ambient temperature: -40~+80℃
7. Conductive body material: Phosphor bronze gold-plated
8. Product certifications: UL/ROHS
Mechanical Properties:
1. Insertion force: 2 gold wires = 350g / 4 gold wires = 500g / 6
gold wires = 750g / 8 gold wires = 900g / 10 gold wires = 1050g
2. Matching strength: 7.7Kg between the plug and the socket
3. Service life: > 750 insertion and extraction cycles
Materials:
1. Shell material: PBT/LCP/PA66/PA46/NL9T
2. Shell color: Black or other colors
3. Contact point material: Phosphor bronze
4. Electroplating: Gold-plated via NICKEL.GOLD electroplating,
with a thickness of 1.5U"/3U"/6U"/15U"/30U"/50U"
5. Protective layer: 0.2mm thick brass nickel-plated
RJ45 Cable adapter
cat6cat5e Straight-through header
8P8C round adapter
180 degrees 90 degrees face plate adapter
| Country: |
China |
| Model No: |
A5010
|
| FOB Price: |
( Negotiable ) (Negotiable)
Get Latest Price
|
| Place of Origin: |
china |
| Price for Minimum Order: |
- |
| Minimum Order Quantity: |
100 Piece |
| Packaging Detail: |
PE bag and carton |
| Delivery Time: |
7-20days |
| Supplying Ability: |
10000 Piece per Day |
| Payment Type: |
T/T, Western Union, PayPal |
| Product Group : |
Waterproof Cable
|
