Product Description
Signal Hound SA*4B SA**4B **0 kHz to *2.4 GHz Spectrum
Analyzer

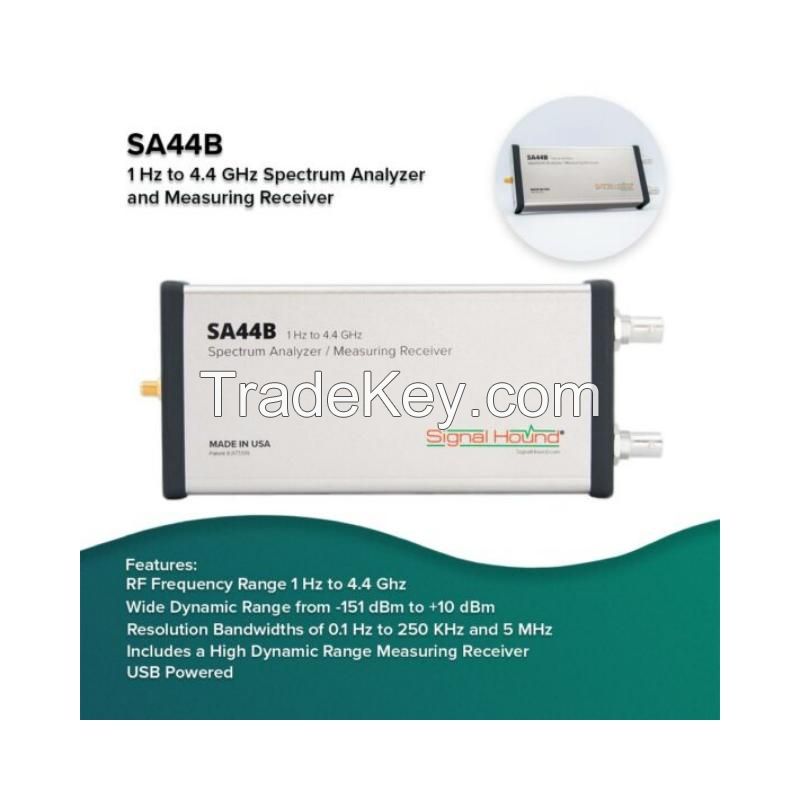

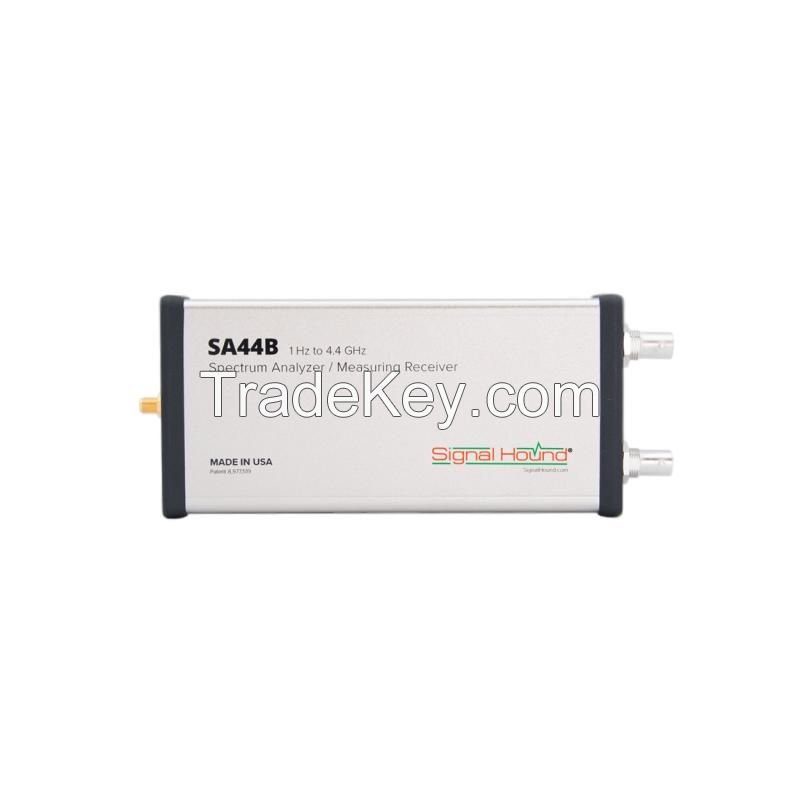

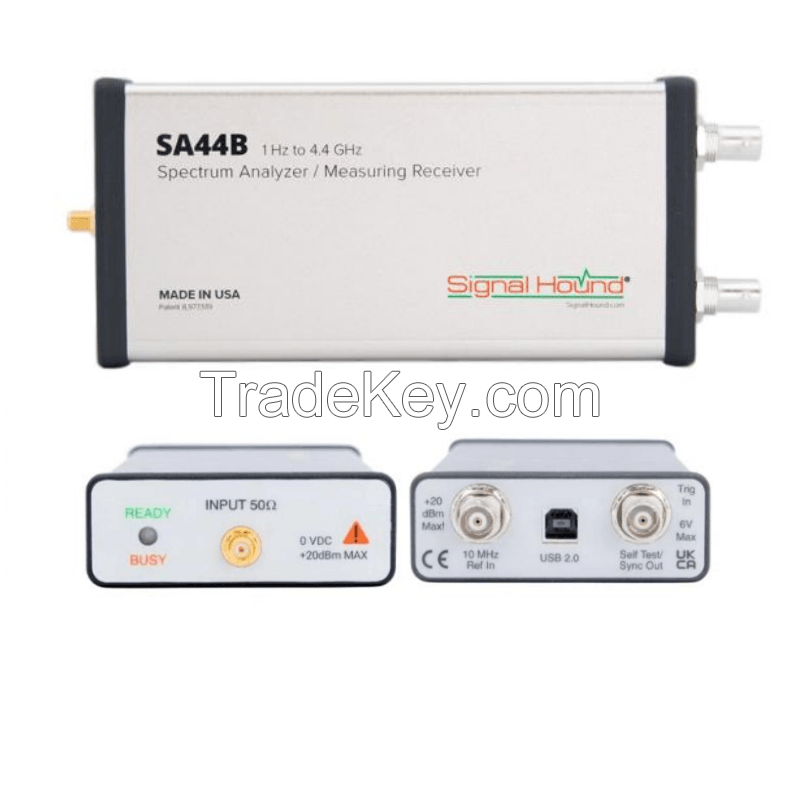

Signal Hound SA*4B 1 Hz to 4.4 GHz Spectrum Analyzer
The Signal Hound SA*4B is a Software Defined Receiver (SDR)
optimized as a narrow-band real-time RF spectrum analyzer. It is
a compact, simple to use, effective troubleshooting tool for the
general lab user, engineering students, and ham radio enthusiast.
Product Details
The Signal Hound SA*4B is a Software Defined Receiver (SDR)
optimized as a narrow-band real-time RF spectrum analyzer. It is
a compact, simple to use, and effective troubleshooting tool for
general lab users, engineering students, and ham radio
enthusiasts. Using recent innovations in RF technology, the
Signal Hound has the sensitivity, accuracy and dynamic range youd
expect in a unit many times its cost.
The SA*4B has a preamplifier for improved sensitivity and reduced
LO leakage. There is also a thermometer for temperature
corrections, allowing accurate amplitude measurements over the
entire operating temperature range.
Features
•RF Frequency Range: 1 Hz to 4.4 GHz
Low noise amplifier available above **0 KHz
•Wide dynamic range: ***1 dBm to **0 dBm
•Resolution bandwidths (RBW) of 0.1 Hz to **0 KHz and 5 MHz
•Includes a High Dynamic Range Measuring Receiver
0.*5 dB relative accuracy
0 dBm to ***5 dBm, **0 KHz to 1 GHz
0 dBm to ***5 dBm, 1 GHz to 4.4 GHz
Adjustable digital audio filters
Accurate AM and FM measurements
•No external power supply needed draws power from USB
•Software and Hardware included for one low price
•Additional Third-Party Software Packages are available
TSCM software is available, and is being marketed
•Write your own software with our free Application Programming
Interface (API)
I/Q Data up to a **0 KHz bandwidth
Frequency Sweeps up to **0 MHz per second
•Compatible with Windows 7/8/*0 **-bit and **-bit operating
systems.
•AM and FM Demodulation Measurements
•USB 2.0 communications at **0 MBPS
•Demodulates AM/FM/SSB/CW audio in real-time
•Automation capability using our API
•Measures 8 inches long
•Weighs *0 ounces
Size & Weight
Device dimensions
Version： SA*4B — 4.4 GHz Spectrum Analyzer - Option 1,
Temperature Range: **0°C to **5°C
Weight： .*4 lb (.*9 kg)
Dimensions：7.*5" x 3.*8" x 1.*8" (*9.4 x 8 x 3 cm)
Version： SA*4B — 4.4 GHz Spectrum Analyzer -
Standard, Temperature Range: 0°C to **0°C
Weight： .*4 lb (.*9 kg)
Dimensions：7.*5" x 3.*8" x 1.*8" (*9.4 x 8 x 3 cm)
Product-in-packaging dimensions
Version：
Weight： 1.*2 lb (.6 kg)
Dimensions：9.*5" x 5.*4" x 3.*3" (*3.5 x *3.8 x 7.*5 cm)

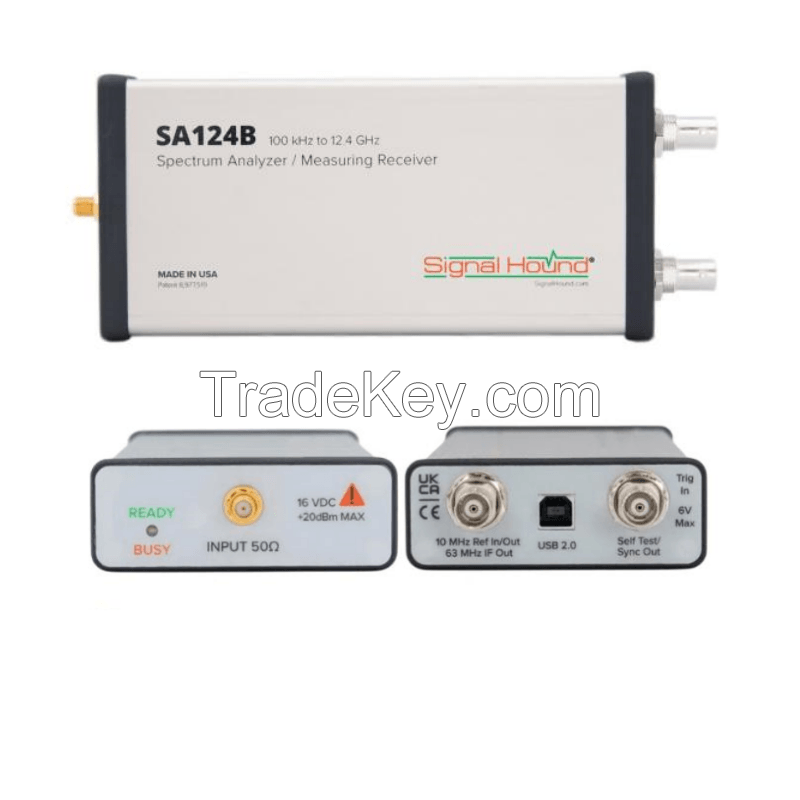

Signal Hound SA**4B **0 kHz to *2.4 GHz
Spectrum Analyzer
The Signal Hound SA**4B is a *2.4 GHz Software Defined Radio
(SDR) optimized as a spectrum analyzer.
Product Details
The Signal Hound SA**4B is a Software Defined Radio (SDR)
optimized as a *2.4 GHz spectrum analyzer. It is compact, simple
to use, and an effective troubleshooting tool for general lab
use, engineering students, ham radio enthusiasts, and electronics
hobbyists. Using recent innovations in RF technology, the Signal
Hound has the sensitivity, accuracy and dynamic range youd expect
in a unit many times its cost.
Upgrade your SA**4B to a Scalar Network Analyzer with our TG**4A
tracking generator—or buy the two devices in a combo and save!
Features
• RF Frequency Range: **0 kHz to *2.4 GHz
• Wide dynamic range: ***1 dBm to **0 dBm
• Resolution bandwidths (RBW) of 0.1 Hz to **0 KHz and 6 MHz
• 6 MHz RBW available as an analog IF output centered at *3 MHz
• Corresponds to U.S. analog / digital TV Channel 3
Includes a High Dynamic Range Measuring Receiver
• 0.*5 dB relative accuracy
• 0 dBm to ***5 dBm, **0 kHz to 1 GHz
• 0 dBm to ***5 dBm, 1 GHz to 4 GHz
• Adjustable digital audio filters
• Accurate AM and FM measurements
• No external power supply needed draws power from a dual USB
cable
• Powerful Digital Signal Processing happens on the PC
• Software and Hardware included for one low price
• Additional Third-Party Software Packages are available
• TSCM software is available, and is being marketed
Write your own software with our free Application Programming
Interface (API)
• I/Q Data up to a **0 KHz bandwidth
• Frequency Sweeps up to **0 MHz per second
• Compatible with Windows 7/8/*0 **-bit and **-bit operating
systems.
• AM and FM Demodulation Measurements
• USB 2.0 communications at **0 MBPS
• Demodulates AM/FM/SSB/CW audio in real-time
• Automation capability using our API
• Measures 8 inches long
• Weighs *2 ounces
Size & Weight
Device dimensions
Version： SA**4B — *2.4 GHz Spectrum Analyzer - Standard
Weight： .*4 lbs (.*4 kg)
Dimensions：7.*5" x 3.*8" x 1.*8" (*9.4 x 8 x 3 cm)
Version： SA**4B — *2.4 GHz Spectrum Analyzer -
Option 2, Adds OCXO Timebase
Weight： .*4 lbs (.*4 kg)
Dimensions：7.*5" x 3.*8" x 1.*8" (*9.4 x 8 x 3 cm)
Product-in-packaging dimensions
Version：
Weight： 1.*8 (.*7 kg)
Dimensions：9.*5" x 5.*4" x 3.*3" (*3.5 x *3.8 x 7.*5 cm)
