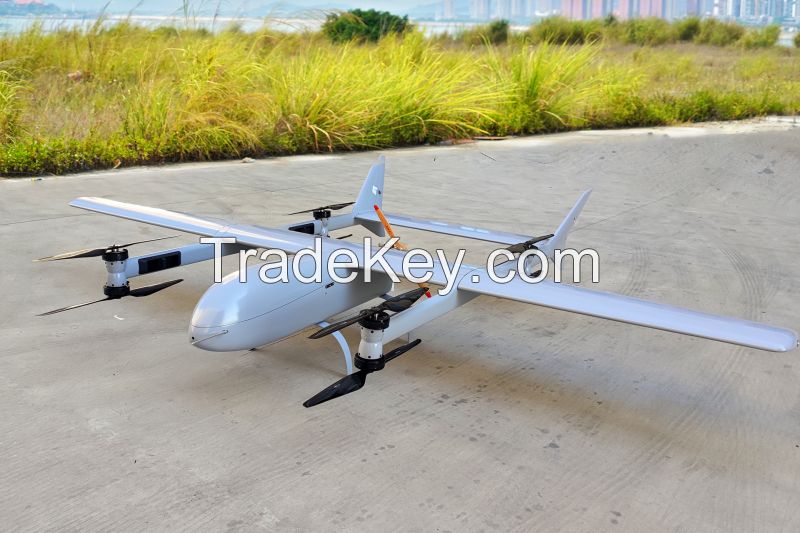

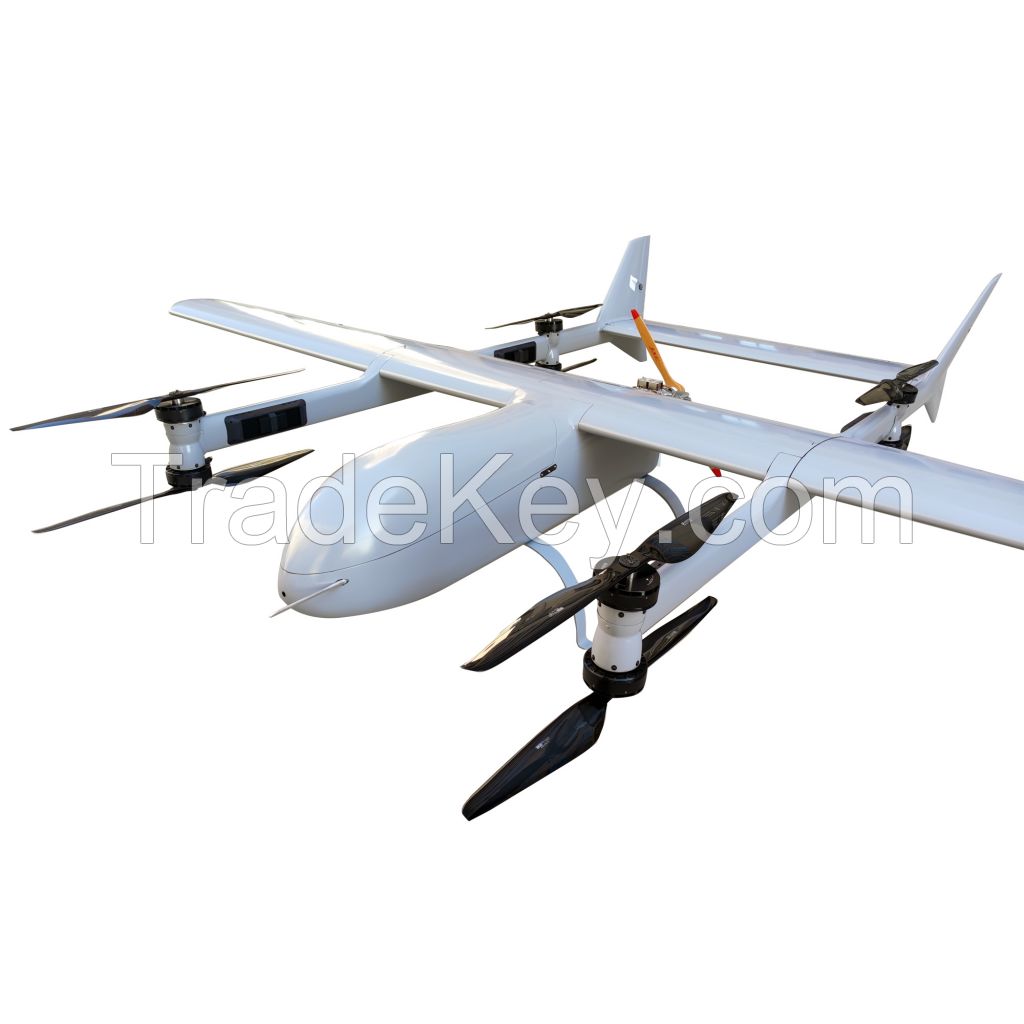

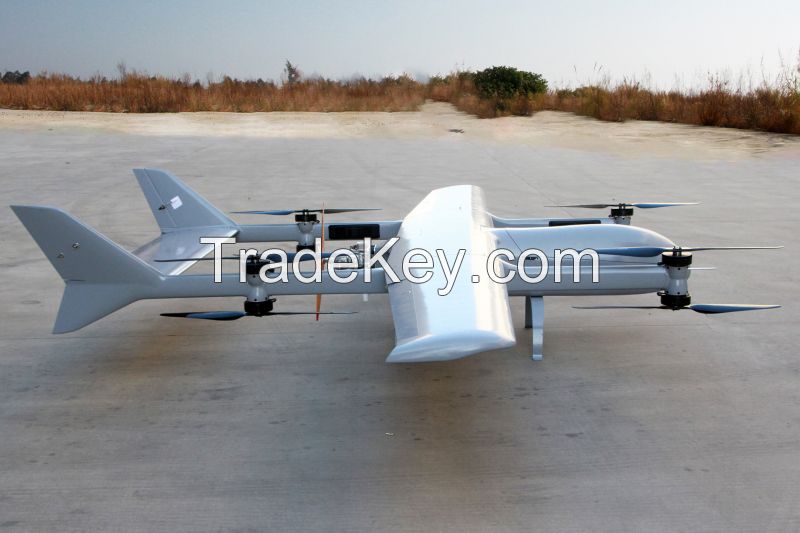

Skyeye 5000 Octo VTOL UAV Platform

The Skyeye 5000 Octo VTOL UAV Platform is an upgrade based on the standard Skyeye 5000 VTOL UAV Platform, it represents a significant advancement in unmanned aerial vehicle technology. It features an octocopter configuration with 8 VTOL motor mount, providing superior stability during takeoff and landing. This design ensures safe operations even in the event of a motor or ESC failure, allowing for controlled and secure landings.

From material delivery to surveillance, the Skyeye 5000 Octo is adaptable to various uses, including agricultural monitoring, infrastructure inspection, and disaster response.

Constructed from carbon fiber, the Skyeye 5000 Octo is both strong and lightweight. This ensures high durability and stability, making it suitable for various demanding applications.

Capable of carrying payloads up to 15 kg, the Skyeye 5000 Octo can transport a wide range of equipment, making it versatile for different industries and missions.

Designed for endurance, this UAV can achieve flight times exceeding 8 hours when equipped with the appropriate power system. This makes it ideal for long-range missions and extended operations.

In general, the Skyeye 5000 Octo VTOL UAV Platform is a versatile and powerful UAV designed to meet the needs of various industries. Its combination of advanced safety features, robust construction, high payload capacity, and extended flight time make it an ideal choice for professional UAV operators seeking reliability and performance.

• Material: Carbon Fiber
• Wingspan: 5000mm
• Length: 3500mm
• Fuselage Width: 375mm
• Wing Area: 261.5 dm²
• Empty Weight: 35kg
• Max Take-off Weight: 100kg
• Max Speed: 137km/hr (38m/s)
• Cruise Speed: 126km/hr (35m/s)
• Stall Speed: 86km/hr (24m/s)
• Max Payload: 15kg
• Fuel Tank Volume: 28 Liters
• Flight Time: Over 8 hours
• Equipment Cabin: 920mm x 340mm x 350mm

• DLE 222 Engine x 1
• T-motor V13 60kv VTOL Motors x 8
• T-motor 24S 120A ESC x 8
• Pilot PY-48AH Servo x 4
• Pilot PW-28AH Servo x 3
• Savox 1250 Servo x 1
• 30″x14″ Forward Propeller x 1
• T-motor 40″ Carbon Fiber VTOL Propeller x 4 Pairs
• Long UAV Pitot Tube x 1
