FOB Price
Get Latest Price2.5 ~ 1.5 USD / Pair ( Negotiable )
|1000 Pair Minimum Order
Country:
China
Model No:
4PM/4PF old
FOB Price:
2.5 ~ 1.5 USD / Pair ( Negotiable ) Get Latest Price
Place of Origin:
China
Price for Minimum Order:
2.5 per Pair
Minimum Order Quantity:
1000 Pair
Packaging Detail:
Standard packing
Delivery Time:
7-15days
Supplying Ability:
10000 Pair per Month
Payment Type:
Other, PayPal, Western Union, T/T
Product Group :
Contact Person Mr. bill
Changan, Dongguan, Guangdong

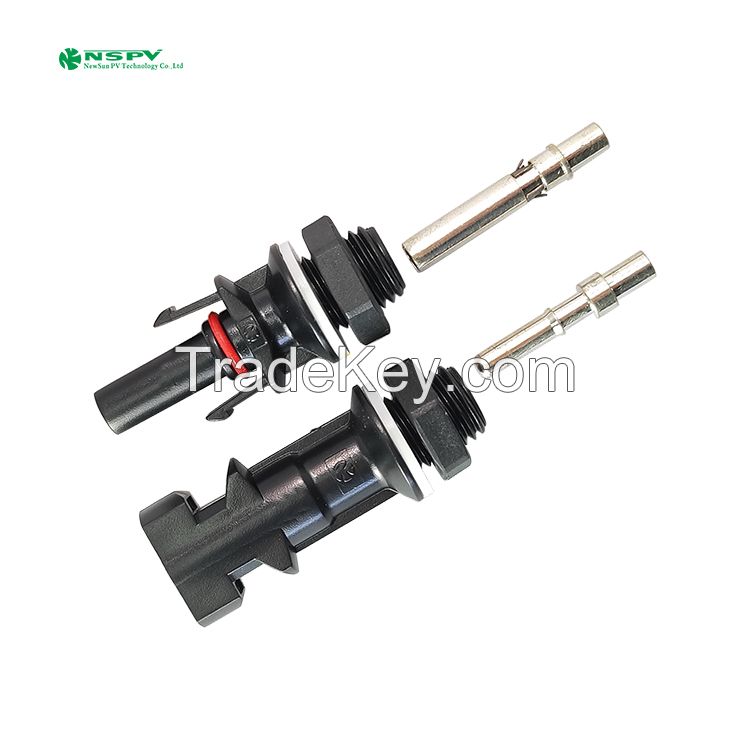

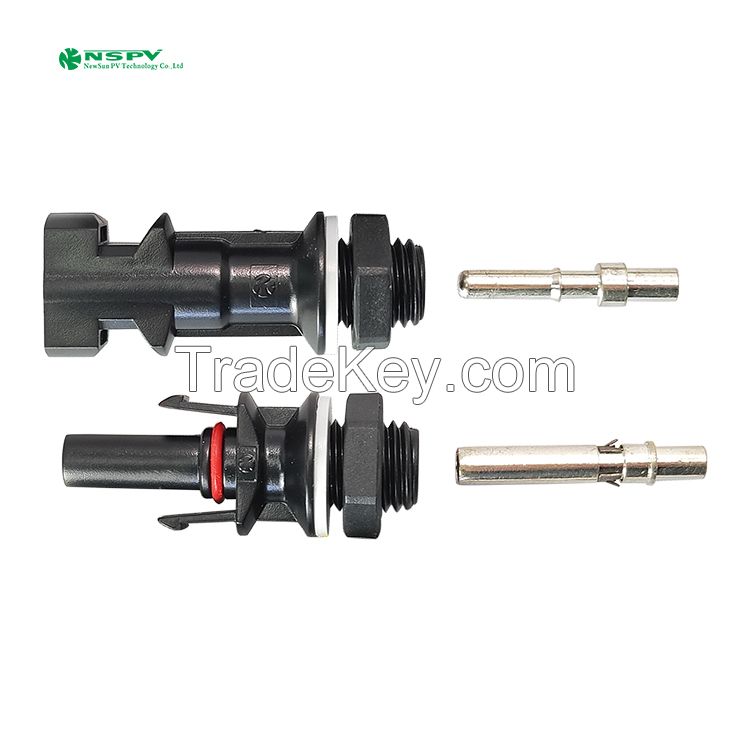

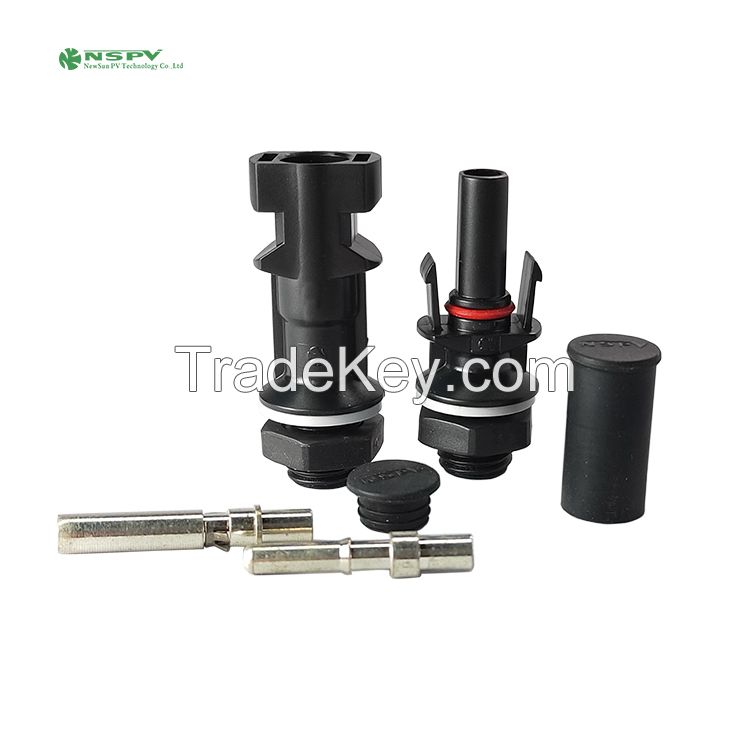

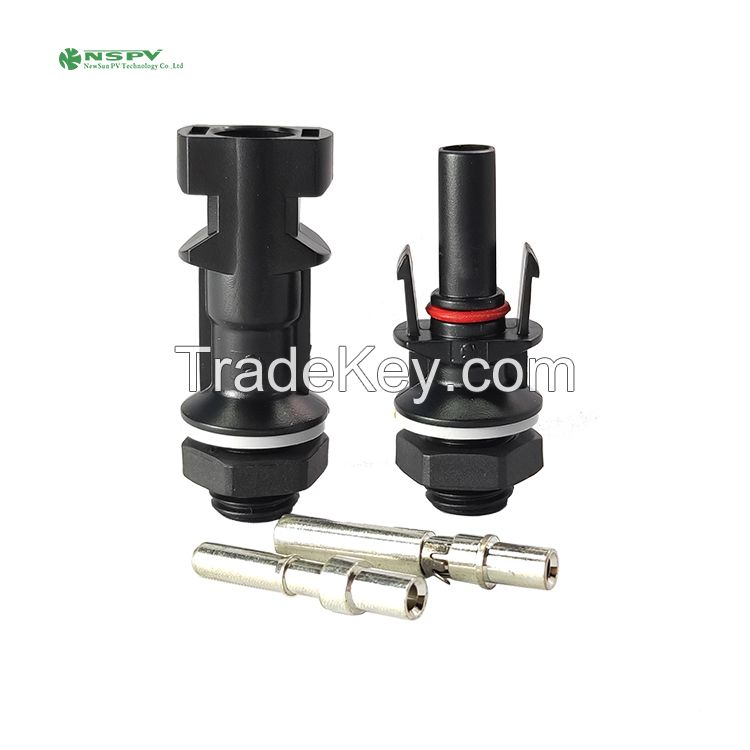

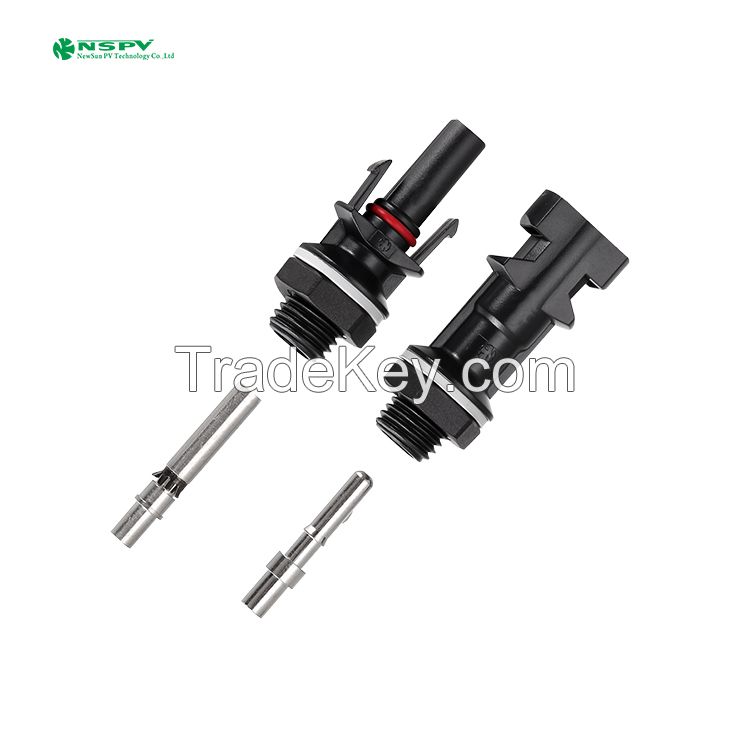

| PV4.0 Panel Connector | |||||||||
| Product Specifications | |||||||||
| Insulation material | PPE/PA | Safety degree | II | ||||||
| Rated current | 30A | Flame class | UL94-V0 | ||||||
| Rated voltage | 1000VDC | Insertion force/Withdrawal force | ≤50N / ≥50N | ||||||
| Test voltage | 6kV(50Hz,Imin) | Ambient temperature range | -40℃…+85℃(IEC) | ||||||
| Typical contact resistance | ≤0.25 mΩ | Suitable cable cross sections | 2.5~6mm2 /14~10AWG | ||||||
| Contact material | Copper,Tin plated | Connecting system | Crimp connection | ||||||
| Degree of protection | IP67 | Nut cap locking force | 1.2-1.5Nm | ||||||
| Overvoltage category/Pollution degree | CATIII/2 | Upper limiting temperature | 110℃(IEC) | ||||||
| Country: | China |
| Model No: | 4PM/4PF old |
| FOB Price: | 2.5 ~ 1.5 / Pair ( Negotiable ) Get Latest Price |
| Place of Origin: | China |
| Price for Minimum Order: | 2.5 per Pair |
| Minimum Order Quantity: | 1000 Pair |
| Packaging Detail: | Standard packing |
| Delivery Time: | 7-15days |
| Supplying Ability: | 10000 Pair per Month |
| Payment Type: | Other, PayPal, Western Union, T/T |
| Product Group : | Panel connector |
