FOB Price
Get Latest Price10 ~ 18 USD / Piece ( Negotiable )
|1 Piece Minimum Order
Country:
China
Model No:
XH-SCT-T24-200
FOB Price:
10 ~ 18 USD / Piece ( Negotiable ) Get Latest Price
Place of Origin:
China
Price for Minimum Order:
10 per Piece
Minimum Order Quantity:
1 Piece
Packaging Detail:
Cartons
Delivery Time:
7-15 days
Supplying Ability:
60000 Piece per Month
Payment Type:
T/T
Product Group :
Contact Person Mr. Jay
No.68, Tian'an Cyberpark, No.55 Changshan Avenue, Jiangyin, Wuxi, Jiangsu
| Model | Input(A) | Max current(A) | Output |
| XH-SCT-S24 | 0.2-250AAC | 300AAC | mA/0.333VAC/0-5VAC |

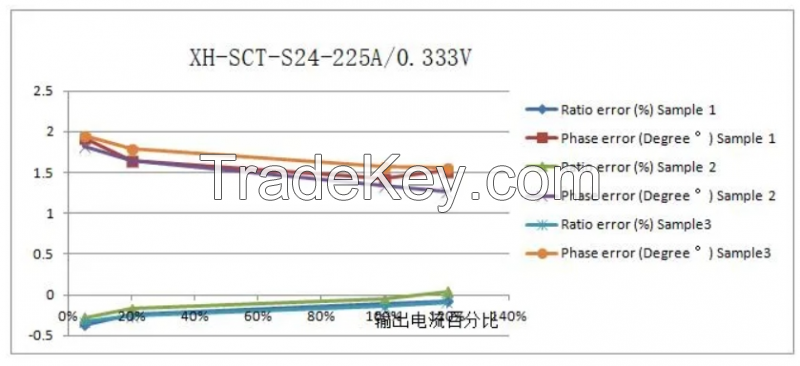

| Accuracy (1% - 100% of rated current) | ±0.5 | % | |
| CT Phase Angle (5% - 120% of rated current) | 0.5 (Ultracrystalline) / 1.5± 0.5(Silicon iron) | Degrees | |
| Nominal Line Frequency | 60 / 50 | Hz | |
| Current Rating | 225 | A | |
| Output Voltage | 0 - 333 | mVac | |
| Overvoltage | AC 5000V/0.3mA/60S (50HZ/60HZ) | Vac | |
| Maximum Continuous Amps | 300 | A | |

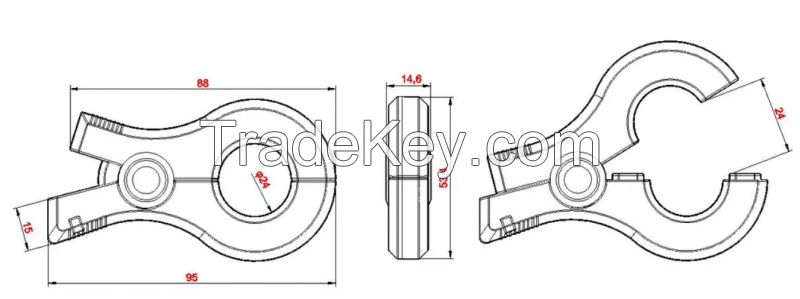

| MECHANICAL | |||
| Type | Split core, clamp design | ||
| Average Window Diameter | 24 | mm | |
|
Lead Wire |
Type | Twisted pair | MTW,UL105 |
| Length | 17 / 5.2 | ft/m | |
| Gauge | 20 | AWG | |
| Weight | 190 | g | |
| ENVIRONMENTAL | |||
| Operating Temperature Range | -40 to 60 | °C | |
| Operating Humidity | 5% to 90% relative humidity | ||
| IP Rating | 30 (NEMA 1) |
|
|
| Country: | China |
| Model No: | XH-SCT-T24-200 |
| FOB Price: | 10 ~ 18 / Piece ( Negotiable ) Get Latest Price |
| Place of Origin: | China |
| Price for Minimum Order: | 10 per Piece |
| Minimum Order Quantity: | 1 Piece |
| Packaging Detail: | Cartons |
| Delivery Time: | 7-15 days |
| Supplying Ability: | 60000 Piece per Month |
| Payment Type: | T/T |
| Product Group : | split core CT/current transformer |
