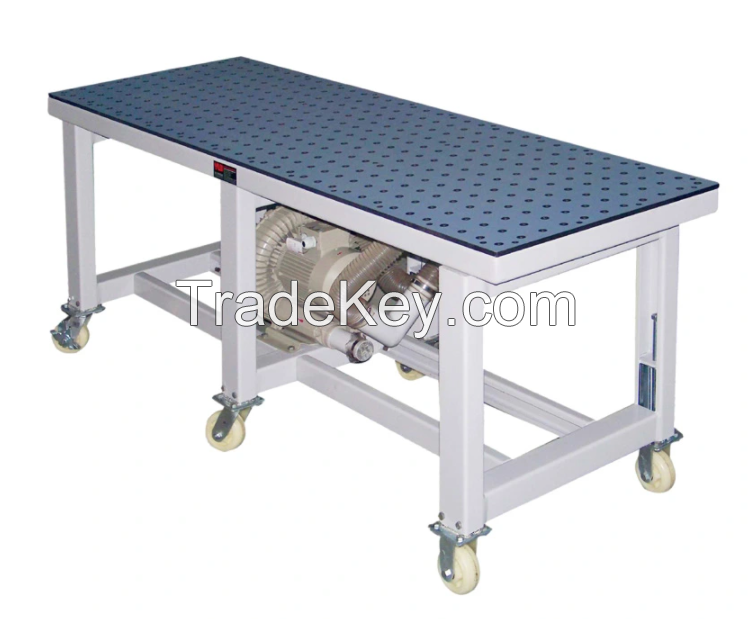

Vacuum Suction Platform Pneumatic Float Bead Conveyor

Product Description

Vacuum Suction Platform ,Pneumatic Float Bead Conveyor
2500*720*< 850-950>

Air vent spacing:80mm.
Effective working width:720mm;
Effective working length:2500mm;
Effective height is 850-950mm;
Rated load: 50kg/Set;
Power supply AC/380V/0.75kw/50Hz.





Features of Youli Vacuum Suction Platform

Youli Vacuum precision vacuum adsorption platform is aluminum honeycomb structure, made of aluminum alloy material, the surface has a very high flatness, this platform in addition to the aluminum honeycomb plate of light weight, high strength, high stiffness, bending, flexural, flexural and other advantages, but also has high flatness, deflection value is small, adsorption, scratch and wear resistance and other advantages.Detailed advantages are as follows:

1. The big board is high and flat

The maximum surface size of Youli Vacuum vacuum adsorption platform can be up to 1800*3250mm (splicing beyond this size can be carried out).Hard anodic oxidation can be done up to 1500*2950mm.Excellent flatness and deflection, flatness is generally controlled within 25 silk, the minimum up to 10 silk;The deflection value is less than 10 filaments under 30 kg of afterforce.

2. Quality is light and important

Youli Vacuum vacuum adsorption platform adopts high-quality aluminum honeycomb structure, all aluminum alloy materials, density per square meter is about 25-35 kg.Bearing 30 kg without deformation.

3. Great suction and even suction

After optimized design, yinmei precision vacuum adsorption platform can not only ensure the performance of the platform is not affected, but also make the suction at any position of the platform large suction uniform.

4. Abrasion resistance

There are various treatment processes for the surface of Youli Vacuum vacuum adsorption platform, including fluorocarbon PVDF powder spraying, anodic oxidation and hard oxidation, which are selected according to the actual needs. Among them, the hard oxidation process is the most resistant to scraping and abrasion, and its surface hardness can reach hv500-700.

5. Customization

Youli Vacuum vacuum adsorption platform can be customized according to customer needs, no matter the size of the platform, aperture and pitch, suction area, suction diameter, number of suction port, interface mode or any partition, suction alone or not suction, etc. Can be customized.
