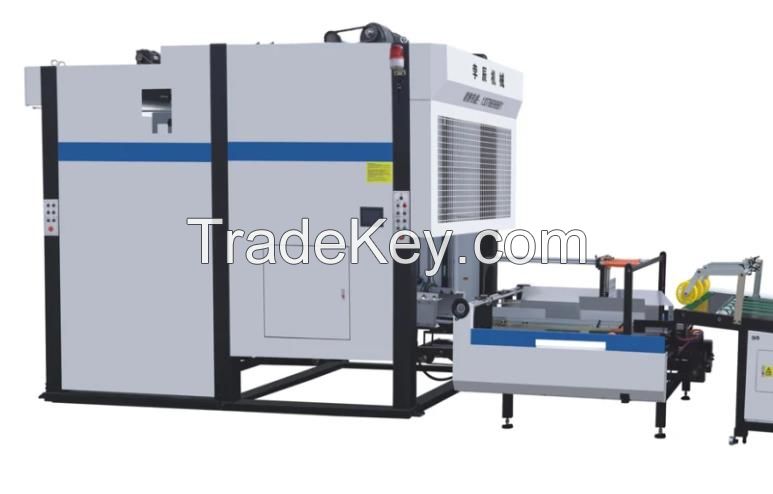

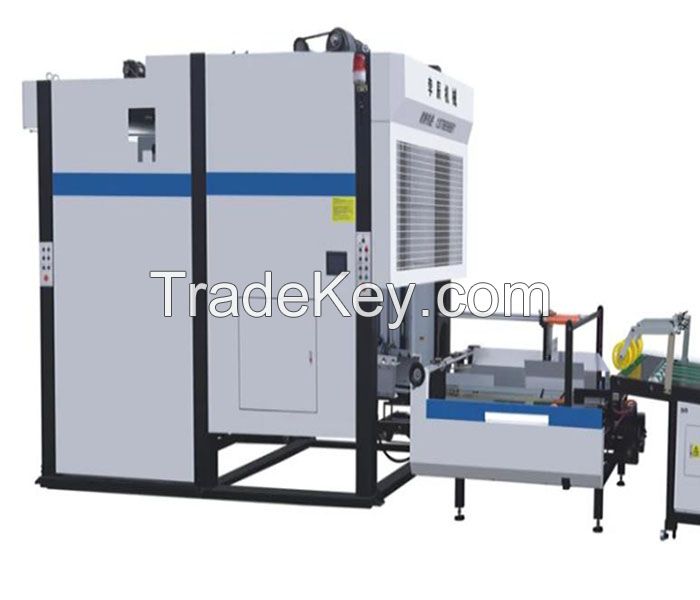

ZSH1500 High speed intelligent flip flop stacker

Product Description

Performance characteristics
A.Put the pallet manually, feed out paper stack manually.
B.Matching 12,000 pcs/h speed flute laminating machine.
C. Flip mode can be changed to prevent the paper from being curved.
D. None stop collection function to improve production efficiency.
E.Reduce labor and reduce labor intensity.
F.Paper can be patted neatly and stacked into pile.
G. Machine can match with different manufacturers' flute laminating machine.
H.Paper can come out from back or side.

Branch Introduction
1. Separator Unit
This part has an acceleration function to quickly separate the sheets. At the same time, operators can pick out substandard products.​
2. Count and Stacker
This part can pat the paper neatly and send it out. Paper stacker height can be adjusted by sensor position.​
3. Turning Device
This part can send the paper to the delivery table, and the operation of this part is controlled by a servo motor. In addition, we can also adjust the flip mode in the screen.​
4. Delivery Table
This part can pat the paper neatly and stack it into a paper pile. It has a non-stop delivery function.​
5. Touch Screen
We can set the paper size here, the orientation will be adjusted automatically.
Machine transport and packing
Our Company:
1. The packing is confirm to export wooden case standard, strong and durable. The                    wooden case's thickness is generally 1 cm.
2. In order to be waterproof, we usually use bubble film to wrap machine.
3. We can handle shipping for customers too.
*With 10 years' Experience
*Having ISO 9001-Certified Factory
*Strong R&D capability
*High Quality Guaranteed
*First Class Service And Best Prices
*Primary products:
    Automatic High Speed Flute Laminater
    ZXSCM Book Case Making Machine
    650UV Coating Machine
    ZX-650C Manual Paper Pasting Machine
    Box Making Machine
    Hot Melt Gluing Machine and Gluing Machine
    Table Gluing Machine
    Paper Pressing Machine.etc
    Welcome to visit our factory!
