FOB Price
Get Latest Price3.8 ~ 2.9 / Piece ( Negotiable )
|Minimum Order
Place of Origin:
-
Price for Minimum Order:
Minimum Order Quantity:
100 Piece
Packaging Detail:
Standard packing or according to customer's request.
Delivery Time:
10-15days
Supplying Ability:
10000 Piece per Month
Payment Type:
T/T, Western Union, PayPal, Other
Contact Person Mr. bill
Changan, Dongguan, Guangdong

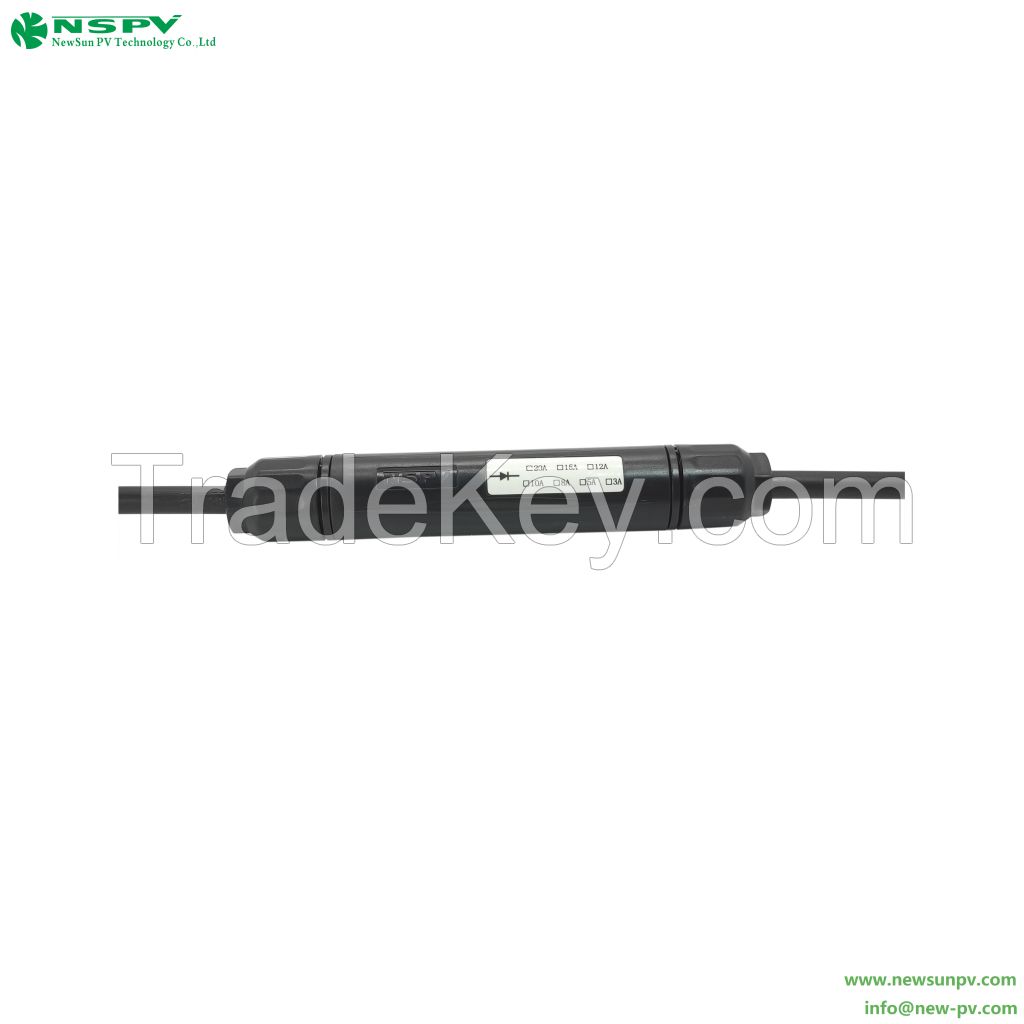

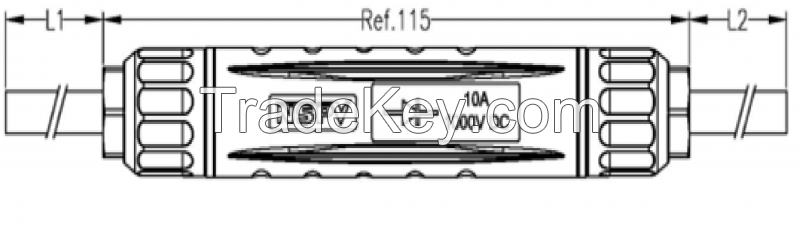

| PV 4.0 Diode Connector 4D2 | |||||||||
| Product Specifications | |||||||||
| Insulation material | PPE/PA | Overvoltage category/Pollution degree | CATIII/2 | ||||||
| Rated current(Without diode) | 30A | Safety degree | II | ||||||
| Rated current(With Diode) | 10A(Diode Rated Current 15A) | Flame class | UL94-V0 | ||||||
| Rated voltage | 1000VDC | Insertion force/Withdrawal force | ≤50N / ≥50N | ||||||
| Test voltage | 6kV(50Hz,Imin) | Ambient temperature range | -40℃…+85℃(IEC) | ||||||
| Typical contact resistance | ≤0.25 mΩ | Upper limiting temperature | 110℃(IEC) | ||||||
| Contact material | Copper,Tin plated | Connecting system | Crimp connection | ||||||
| Degree of protection | IP67 | Nut cap locking force | 1.5-1.8Nm | ||||||
