Microscope, Operating

Description

Zeiss OPMI LUMERA T Features

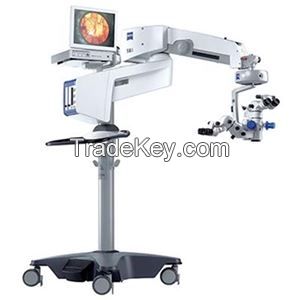

The Zeiss OPMI LUMERA T is a surgical microscope with a Stereo Coaxial Illumination (SCI). Even with strongly pigmented, decentered, and ametropic eyes, the LUMERA T produces a high-resolution and a high-contrast view. This LUMERA microscope features a backup bulb if necessary and is integrated with Superlux Eye xenon illumination. The Superlux Eye xenon illumination allows you to see the anatomic structure of the eye in its natural colors and in highly accurate detail. This microscope can optionally be equipped with a fully independent assistants microscope.

• Instant red reflex.
• Natural color impression.
• DeepView depth-of-field management system.
• Magnetic brakes that make positioning the surgical microscope very simple.
• Automatic light control.
• Optics: Apochromatic
• Motorized Zoom Ratio: 1:6
• Light Source: Superlux Eye xenon
• Objective Lens: f = **0

• Apochromatic optics
• Motorized Zoom: 1:6 zoom ratio
• Magnification Factors: 0.4 to 2.4>
• Focusing Range: *0 mm
• Binocular Tube: Invertertube (optional ****0° tiltable tube)
• Eyepieces: *0x (*2.5x optional)
• Objective Lens: f = **0 mm (f = **5 mm optional)
• DeepView: Depth of field management system
• Integrated assistants microscope
• Fully Stereoscopic

• SCI: red reflex illumination and surrounding field illumination, both dimmable, patent pending
• Retinal protection device
•
• Fiber optic illumination
• Light Source

• Superlux Eye xenon Light Source with manual bulb change
• HaMode filter
• Optional: *2V, **0W halogen Light Source with fully automatic bulb change in case of lamp failure
• Option: dual halogen Light Source
• Optional: xenon / halogen combi Light Source
• Integrated **8 nm UV barrier filter
• Blue-blocking filter
• Optional: fluorescence filter

• *0 mm x *0 mm adjustment range
• Button for starting positions of the X-Y coupling and focus

• *3.7 kg (*0.2 lb) (with Invertertube, integrated assistants microscope, objective lens, and eyepieces)

• S*8 floor stand
• S8 ceiling mount
• S*1 ceiling mount
• Maximum load: *0 kg (*4.1 lb) (complete microscope equipment, including accessories)
