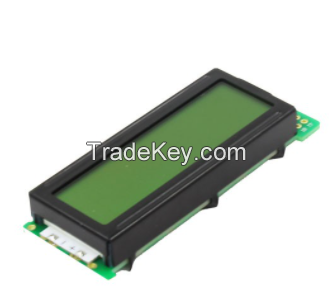

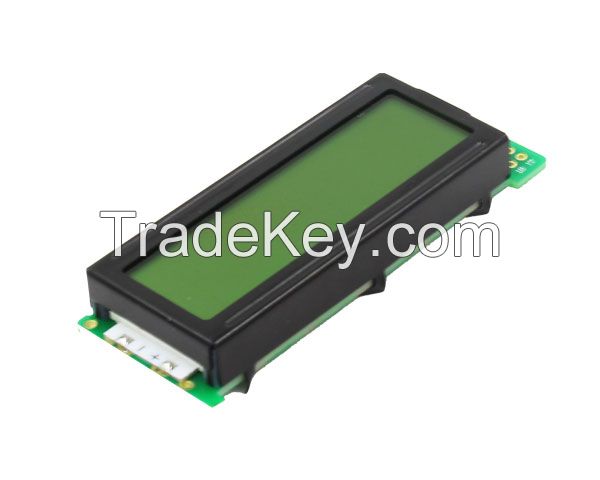

Character LCD Display Module With Backlight

FOB Price

Get Latest Price

0.41 ~ 0.47 USD / Piece ( Negotiable )

1000 Minimum Order

Country:

China

Model No:

FOB Price:

0.41 ~ 0.47 USD / Piece ( Negotiable )(Negotiable) Get Latest Price

Place of Origin:

China

Price for Minimum Order:

0.41 per Piece

Minimum Order Quantity:

1000

Packaging Detail:

Boxes

Delivery Time:

20 Days

Supplying Ability:

50000 Piece per Month

Payment Type:

PayPal, Western Union, L/C, T/T

Product Group :

LCD MODULE

Contact Now

Dongguan Bibuke Electronic Technology Co., Ltd.

China

Free Member

Contact Person Ms. Echo

Dongguan, Guangdong

Contact Now

Product Description

General Specification：

Display format : 12832dot-matrix ; 1/33 duty.
Construction : STN LCD, COG+PIN Type
Controller : UC1705 OR EQU
3.3V single power .InternalBuilt-in DC/DC converter for LCD driving.
Normal temperature type.

B:MECHANICAL DATA

Parameter	Stand Value	Unit
Dot size	0.33(W) 0.36(H)	mm
Dot pitch	0.36(W) 0.39(H)	mm
Viewing area	48.0 (W) 23.5(H)	mm
Module size	51.0(W)23.5(H) 2.85 max (T)	mm

-------------------------------------------------------------------------------------------------------
Product Line:

☆ Clean Room class 10k@0.8um, Pressurec 0.8kgf

☆ Antistatic floor, resistance : 1x10 ohm to 1x10 ohm

☆ COG production lines: 4 .

☆ Backlight production lines: 2 .

☆ Existing machine capacity will be 1KK per month.

------------------------------------------------------------------------------------------------------

FAQ：

I want the LCD display 8 digits and the outline size is 65x30x2.8mm………?

Answer: No problem. Firstly, please kindly send us your specification/ drawing paper
If you have not the specification, you can also provide your samples; we will recommend the suitable one
if it is standard products. Or we can customize for you based on your own requirement.

2.This LCD  is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
      Answer: For the segment type LCD module, if you need modify the outline size or display content,
a new LCD glass module is need. We have to open new tooling for you.

3. This LCD display is HTN type, but I want STN type,can you make?
     Answer: Thats all right . we can change for you as per you request.

4. I want customize a new LCD module. Can you do?
      Answer: Yes, we can. Please send your drawing paper. If you have not, please advise me the outline size
of the LCD display, display information( Glass thickness, Polarizer, Display Type, Connector mode,
Storage Temp. Operating Temp. Supply Voltage, Viewing direction, drive condition), we can customize for you.

5. What is leading time for tooling?
     Answer: General speaking, it will cost 15 to 25 days after drawing paper confirmation and tooling charge payment,
we can report you the exact time when you confirm the drawing paper.

6. Can you send us samples for checking?
     Answer: Yes,. Samples order is available.

7. What is the Leading Time?
    Answer: If we have stock for the standard ones, the leading time is one day after payment. If it is the mass production for
special ones, the leading time is about 15-30 days. suppose we can finish earlier,  we will report the information in advanced.

Our Services：
1. Free repair within one year after the shipment of products from us.
2. Replacement within 30 days after the shipment of products from us due to products' problems.
3. We can print your logo and stick your model No.on the cameras.
4. We have long cooperation with many shipping companies and our export volume is large. The shipping companies
can offer us good discounts.
5. Professional technician supports. We have a good after-sales service team. They can solve your problems in time.
6.All goods will be inspected and tested by our engineers and QC/QA before packing and shipment.
7.Customers satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Email or online. It will be responded within 24 hours.
8.Products pictures only for your reference. please kindly refer to the specification. we can provide the products basic on the specification. or you can offer your own specification or drawing , we can customize all kinds of LCD displays for you. thanks for your kind support always.
