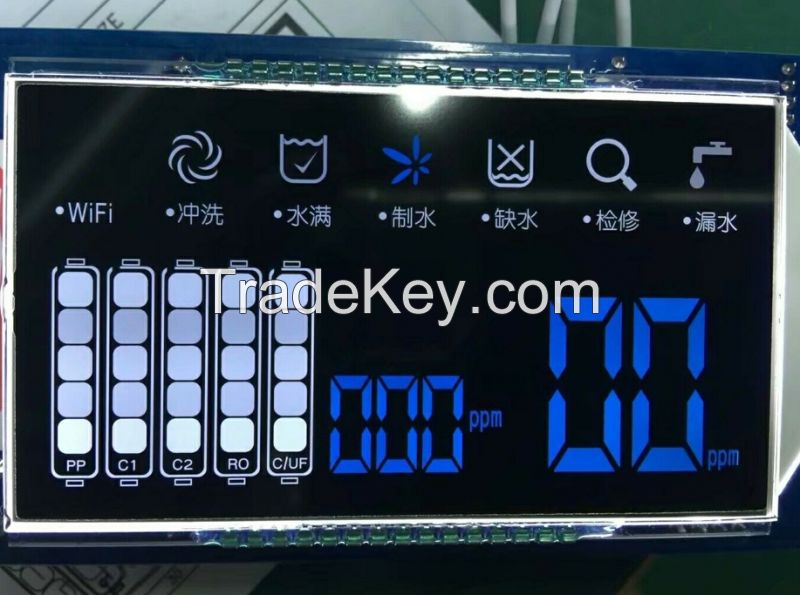

VA Monochrome LCD Display Screen

FOB Price

Get Latest Price

0.41 ~ 0.47 USD / Piece ( Negotiable )

1000 Minimum Order

Country:

China

Model No:

BBI-M33054

FOB Price:

0.41 ~ 0.47 USD / Piece ( Negotiable )(Negotiable) Get Latest Price

Place of Origin:

China

Price for Minimum Order:

0.41 per Piece

Minimum Order Quantity:

1000

Packaging Detail:

Boxes

Delivery Time:

20 Days

Supplying Ability:

50000 Piece per Month

Payment Type:

PayPal, Western Union, L/C, T/T

Product Group :

LCD DISPLAY

Contact Now

View Brochure

Dongguan Bibuke Electronic Technology Co., Ltd.

China

Free Member

Contact Person Ms. Echo

Dongguan, Guangdong

Contact Now

Product Description

General Specification：

PART NUMBER	SMMC13264-AI-00-SYA
DISPLAY FORMAT	132*64DOTS
SUPPLY VOLTAGE FOR LOGIC	3.0V
DISPLAY TYPE	STN-Y/G, POSITIVE ,REFLECTIVE
VIEWING DIRECTION	6.00 O CLOCK
LCD DRIVING METHOD	1/65 DUTY, 1/9 BIAS, 9.2V (J6392)the last sample：2017-5-23
CONNECTION	COG+FPC
LCD DRIVER IC	ST7565R
INSPECTION STANDARD OF LCD	A STANDARD
INSPECTION STANDARD OF RoHS	RoHS COMPLIANCE

ABSOLUTE MAXIMUM RATINGS

Item	Symbol	MIN	Max	Unit
Supply Voltage	VDD	-0.3	3.6	V
Supply Voltage	VOUT	-0.3	13.5	V
Operating temperature	Topr	-20	70	℃
Storage temperature	Tstr	-30	80	℃

Communication equipment-telephone, interphone, fax machine, wireless wifi, etc. Automotive electronics-on-board entertainment system, automobile fault detector, CarLog, vehicle navigator, car audio, reverse radar, reverse mirror, camera, anti-theft device, etc. Instruments-water meters, electric meters, multimeter, electronic scales, pressure meters, temperature meters, flow meters, display instruments, electrical instruments, space instruments, measuring instruments, analytical instruments, electrochemical instruments, optical instruments, etc.; Fitness equipment-treadmill, waist machine, fitness bike, training device, pedometer, code table, beauty instrument, fat square measuring instrument, fitness instrument, electronic sphygmomanometer, weighing scale, etc.

************************************************************************************************
FAQ：

I want the LCD display 8 digits and the outline size is 65x30x2.8mm………?

Answer: No problem. Firstly, please kindly send us your specification/ drawing paper
If you have not the specification, you can also provide your samples; we will recommend the suitable one
if it is standard products. Or we can customize for you based on your own requirement.

2.This LCD  is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
      Answer: For the segment type LCD module, if you need modify the outline size or display content,
a new LCD glass module is need. We have to open new tooling for you.

3. This LCD display is HTN type, but I want STN type,can you make?
     Answer: Thats all right . we can change for you as per you request.

4. I want customize a new LCD module. Can you do?
      Answer: Yes, we can. Please send your drawing paper. If you have not, please advise me the outline size
of the LCD display, display information( Glass thickness, Polarizer, Display Type, Connector mode,
Storage Temp. Operating Temp. Supply Voltage, Viewing direction, drive condition), we can customize for you.

5. What is leading time for tooling?
Answer: General speaking, it will cost 15 to 25 days after drawing paper confirmation and tooling charge payment,
we can report you the exact time when you confirm the drawing paper.

6. Can you send us samples for checking?
     Answer: Yes,. Samples order is available.

7. What is the Leading Time?
    Answer: If we have stock for the standard ones, the leading time is one day after payment. If it is the mass production for
special ones, the leading time is about 15-30 days. suppose we can finish earlier,  we will report the information in advanced.
