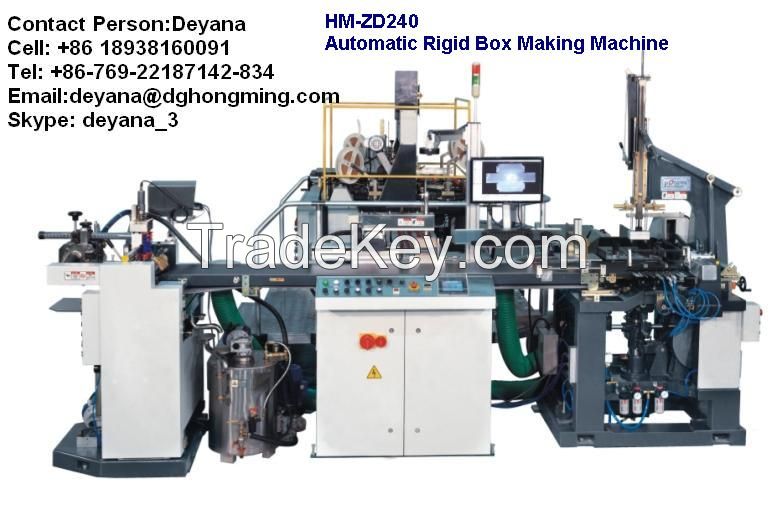

HM-ZD240 Automatic Paper Set-up Box Making Machine

Product Description

HMZD**0 Automatic Raper Setup Box Making Machine

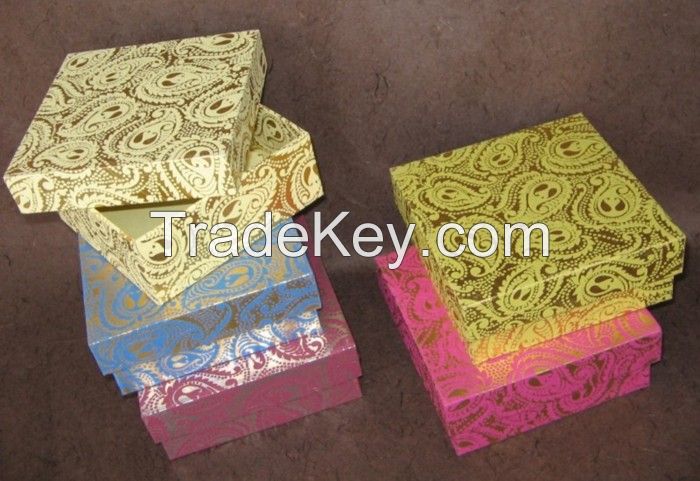

HMZD**0 Automatic Raper Setup Box Making Machineis a fully automatic machine mainly used to manufacture rigid boxes which is consisted of a cover paper and an inner box, such as gift boxes, , small boxes, jewelry boxes, ring boxes, necklace boxes, bracelet boxes, earring boxes, pull up boxes, chocolate boxes, shoe boxes, cosmetic boxes, watch boxes, chopstick boxes, etc.



1. Suitable for all kinds of rigid boxes automatic production
2. Computer control with auto error display and malfunction display.
3. Automatic feeding cover paper and cardboard.
4. *4 hours control glue preheating
5. Hotmelting adhesive automatic conveying, cutting and finish pasting the inner box quad stayer(four angles) of cardboard in one process.
6. The vacuum suction fan under the conveyer belt can keep the glued paper from deviating.
7. The boxforming unit can automatically collect boxes and deliver them to the forming unit.
8. The boxforming unit can continually delivery boxes, wrap sides, fold ears and paper sides and form in one process.
9. Spotter unit apply high tech camera with5 million pixel ( accuracy± 0.*5mm. )
10. The whole machine employs PLC, photoelectric detector system and touch screen manmachine interface to automatically form boxes in one process.
11. It can automatically diagnose the troubles and alarm accordingly.
12. Remodel for automatic production of different kinds of boxes

 Note:
1.      The max. size and the min. size of box are determined by the max. and min. size of cover paper.
2.      The production speed of the rigid box maker is determined by the box size, paper and cardboard materials.
3.      We dont provide air compressor. ( 6 atm=0.**6mpa, 5.5KW compressor is needed)

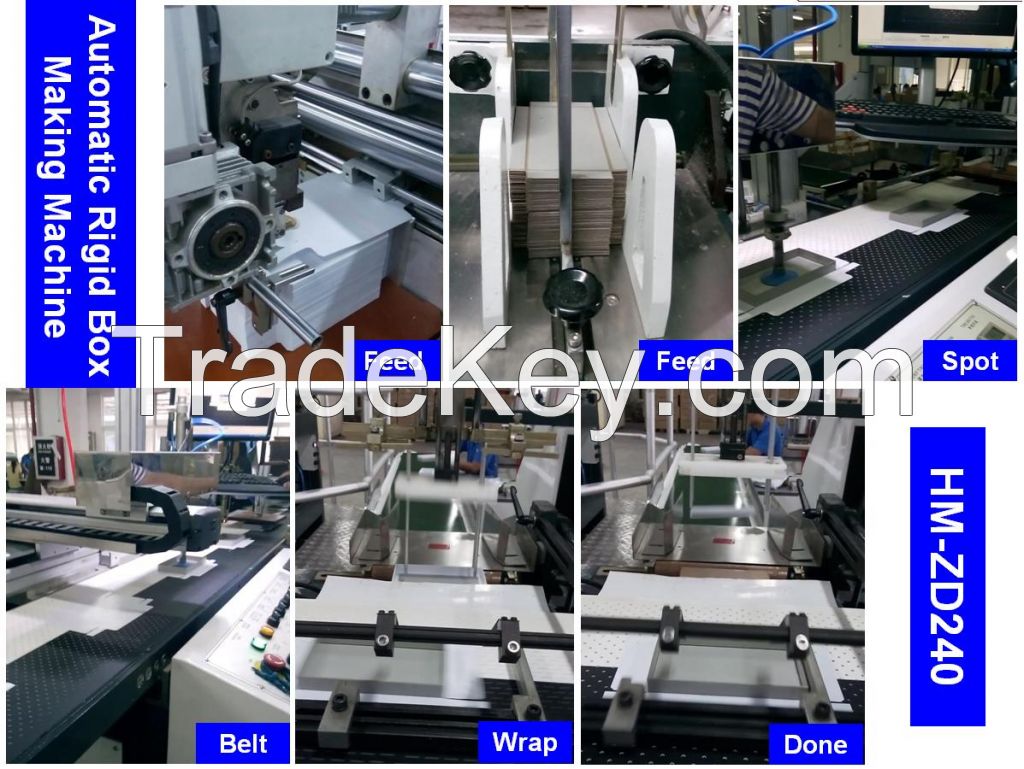

HMZD**0 Automatic Raper Setup Box Making Machine Description and main configuration:

A. Cover paper feeding system and glue coating system of HMZD**0 Automatic Raper Setup Box Making Machine
1. *4 hours glue preheating and control system
2. The cover paper automatic sending with feeder system
3.The vacuum suction fan under the conveyer belt can keep the glued paper from deviating

B. Corner pasting part of HMZD**0 Automatic Raper Setup Box Making Machine （HMBD**0 does not have this part）
1. Automatic feeding cardboard
2. Hotmelting adhesive automatic conveying, cutting and finish pasting the inner box quad stayer(four angles) of cardboard in one process.
3. With independent control system

C.   Spotter of HMZD**0 Automatic Raper Setup Box Making Machine
1. Apply Germany camera in 5 million pixel which is more accuracy (spotter error ± 0.*5mm).
2. Japan Toyo module.

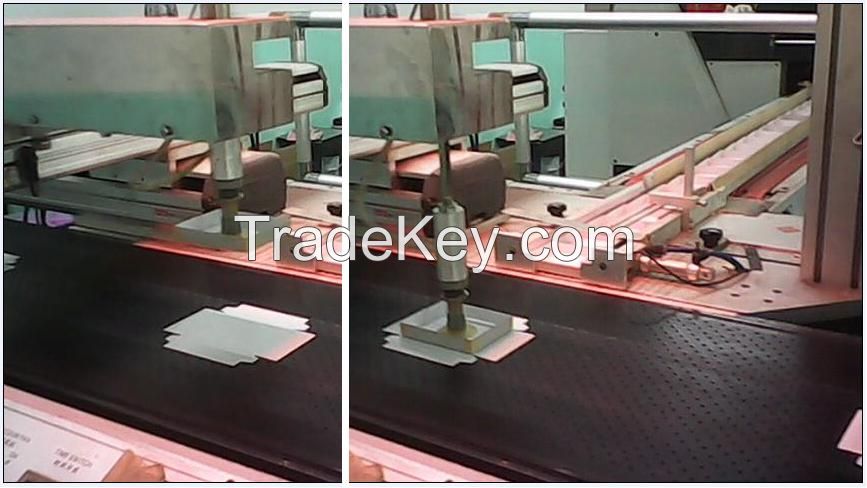

3. Robotic arm pick the inner box and spot on the glued paper.
4. Dell computer display screen.
5. The whole machine employs PLC, photoelectric detector system and touch screen manmachine interface to automatically spot and form the box in one process.
6. Computer control with auto error display and malfunction display.
7. It can automatically diagnose the troubles and alarm accordingly.

D.   Wrapping part of HMZD**0 Automatic Raper Setup Box Making Machine
Automatically collect boxes and deliver them to the forming unit. The boxforming unit can continually delivery boxes, wrap sides, fold ears and paper sides and form in one process.
