Welding Positioner

Product Description

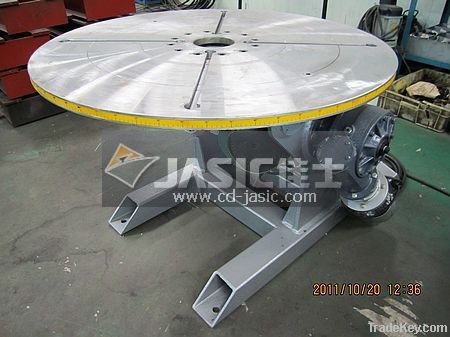

Work table surface is made of finished casting, not easy to be hurt by welding spatter. Uniform position lines are marked on the surface. T-shaped channels are available, which can facilitate the installation of various fixing and clamping unit.

Stepless speed adjustment of imported transducer is adopted for word table rotation, with a wide speed adjustment range and high working stability.

Reversal of work table adopts gear worm reducer to keep constant-speed reversal within **0° , with large turning torque, self-locking and reliable positioning.

All machine bodies adopt seat-type structure that gives an integral reliability. Generally, they don't need to be fixed on the foundation, convenient in movement.

Remote control of manual control box is adopted, convenient and flexible in operation. Linkage interfaces are reserved in the electric box, which can realize the connection and linkage operation with control systems of other manufacturers' operating mechanisms and welding machines.

Suitable for welding of all sorts of revolving work piece such as axes, disks, cylinders, etc

As per different demands of customers, this company can also take up design and manufacturing of long ton or special welding positioners, for examples, horizontal revolving platform, L-type positioner, double-column heavy positioner, etc.
