Product Introduction

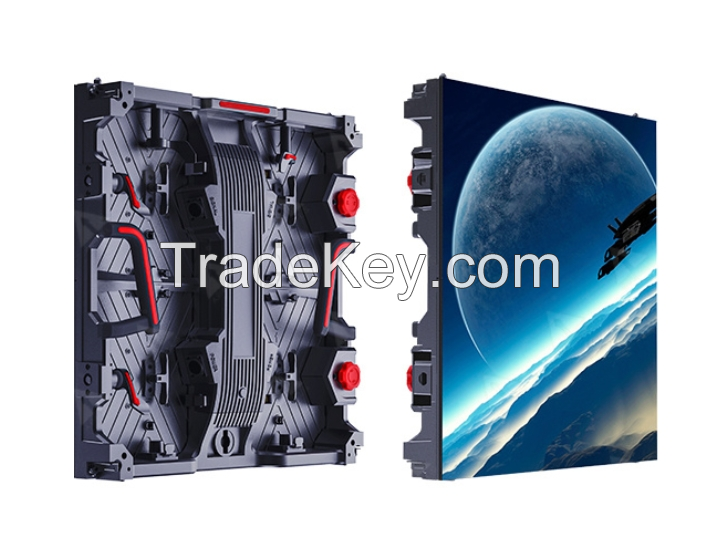

XR Virtual LED display, specially design for the film industry
and xR applications, to create a suitable canvas for movie
production, The LED screen can be built into any size and
shape. The LED panel, video processor and camera working
together to achieve amazing video effects. Bring unlimited
creativity and effectively, improve the efficiency to film and
television program production.
Â
Film shooting, advertisement
shooting, TV station, studio, live broadcast, online press
conference
Â
Multiple models options, meet various needs. Freely angle
adjustable:±2.3°丨±2.8°丨±3.8°丨±5.8° (Angle customizable)
Â

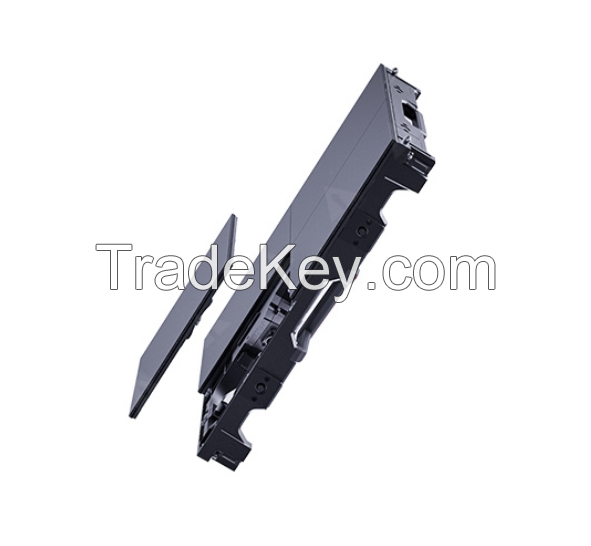

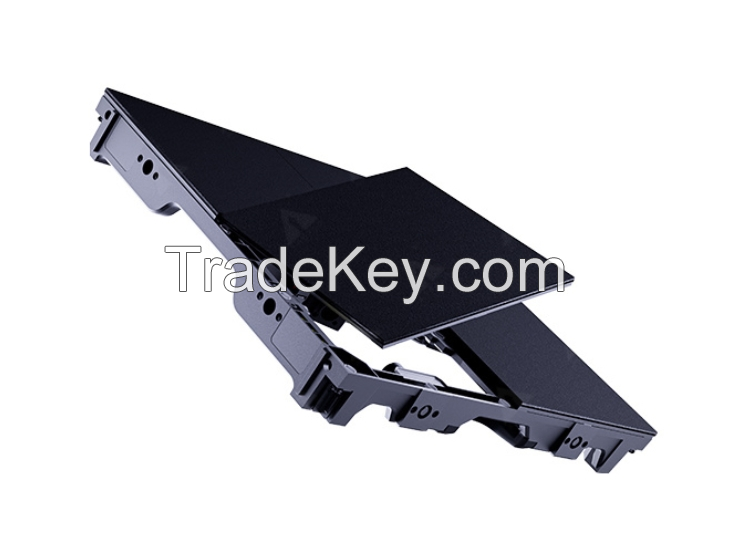

Independent modular design of the
led module and control box, with magnetic accessories and quick
locking & unlocking system. Fast front & rear
installation and maintenance. Independent modules calibration and
setting data saved in each individual module, easy for any
independent led modules replacement and working.
Â
LEDs protections: buffer protection design for every led cabinet
corners, greatly reduced the damage of the LEDs. Fast
locking system: magnetic auxiliary components and z-axis
calibration up and down locking system for fast assemble &
disassemble to reduce the LEDs damage.
Â
| xR | Back ground panel Specifications | ||
| Model | XR1.9 | XR2.3 | XR2.6 |
| LEDÂ | SMD1212 | SMD1515 | SMD1515 |
| Pixel Pitch (mm) | 1.9531 | 2.3148 | 2.6041 |
| Density(dots/m²) | 262,144 | 186,624 | 147,456 |
| Brightness﹙after calibrated﹚ | ≥1,200 nit | ≥1,200 nit | ≥1,200 nit |
| Refresh rate﹙Hz﹚ | 7,680 | 7,680 | 7,680 |
| Module size (mm) | 250×250 | 250×250 | 250×250 |
| Module resolution (dots) | 128×128 | 108×108 | 96×96 |
| Panel size (mm) | 500×500 | 500×500 | 500×500 |
| Panel resolution (dots) | 256×256 | 216×216 | 192×192 |
| Scan mode | 1/8 | 1/9 | 1/8 |
| Gray degree﹙bit﹚ | 16 | ||
| View angle | H160Ëš/V160Ëš | ||
| Controller | Brompton/NOVA | ||
| Frequency of frames       ﹙Hz﹚ | 23.5~240 | ||
| Max Power Consumption (W/m²) | 800 | ||
| Average Power (W/m²) | 267 | ||
| Panel weight (kg/pcs) | 8.5 | ||
| LED Failure rate (%) | ≤0.02 | ||
| Operation Voltage (V/AC) | 100~240 | ||
| Operation temp (℃) | -20~+45 | -20~+40 | -20~+40 |
| Operation Humidity (RH) | 10%-85% | 10%-85% | 10%-85% |
| Storage Temp (℃) | -10~+60 | -10~+50 | -10~+50 |
| Storage Humidity (RH) | 10%-90% | ||
| LEDÂ life span | 100,000Â hrs | ||
| IP Degree | Indoor | ||
| Installation way | Stand / hanging | ||
| Service type | Front / Rear | ||
| Arc degree range | Inner arc 6˚~Outer arc 6˚ | ||
| Best Viewing distance (m) | 2.45~6.5 | 2.9~7.7 | 3.25~8.67 |
| Surface Treatment | Macromolecule PC+composite material | ||
| Bearing capacity (kg/m²) | 1,800 | ||
