Product Specification

Process lubrication cooling station:: pure oil rolling
Reducer lubrication method:Thin oil circulation
Unit mechanical equipment electrical installation capacity::AC
General hydraulic drive:10Mpa
Depressurize system pressure:25 Mpa
Roller changer device:hydraulic car change roll box

Product Description

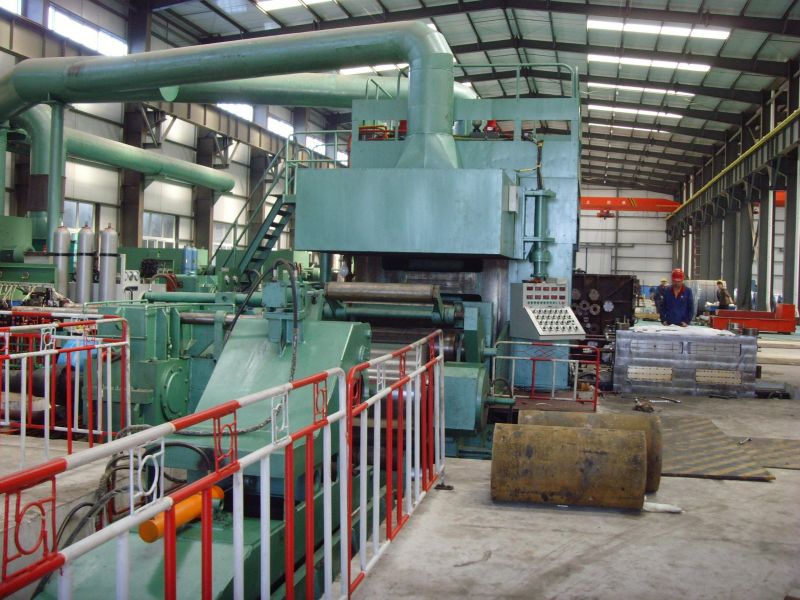

1450 2-Stand 20hi AC Reversible cold rolling mill

Brief Introduction
The unit provided by Party B to Party A is based on Party A's requirements, and concentrates on the successful experience of experts in recent years. It adopts the latest 20Hi roller box system and directly presses the structure type to design, which can ensure high-precision rolling. And the production of contracted units with high quality products that are competitive in the market. The equipment and services provided are carried out by means of engineering general contracting. The main components of the unit are: double-stand main rolling mill train, unwinding machine train, straightening machine, front and rear coiler train, machine front machine (with plate type instrument), unloading equipment, roll changing system, hydraulic system , equipment lubrication system, process lubrication system and electrical automation instrumentation system.

Technical data of the Mill

Work roll: 63.5mm. Material: Cr12Mo1V1; First intermediate roll: 102 mm, material: Cr12Mo1V1; Second intermediate roll: 173 mm, material: 9Cr2Mo or 9Cr2MoV; Drive roll: 173 mm, material: 9Cr2Mo or 9Cr2MoV; Backing bearing: 300 mm; Drive form: medium roll drive Rolling mill maximum opening: 25 mm Maximum rolling pressure of rolling mill: 9000 KN; Maximum rolling torque: 6.6 tons (medium roll drive) Rolling speed: low speed: 400 m/min; high speed: 800 m/min Threading speed: 0.2-0.5 m/s; Thickness reduction accuracy: 0.005 mm; Annual capacity: 160000~180,000 tons/year; Roller box balance: hydraulic 4-cylinder Unwinding speed: 300 m/min

Equipment Level

1) Full hydraulic pressure, hydraulic AGC automatic control. It has constant roll gap position control, constant pressure control, roll deviation adjustment, thickness pre control, monitoring function etc.
2) The whole control system adopts the upper computer control management technology, the full digital DC speed control device, the decentralized PLC unit process control and the remote communication networking technology. Through the two stage network, the rolling mill power supply, the AC and DC main motor control, the PLC system, the remote I/0 system, the AGC PLC system, the human-machine interface (HMI) are integrated into one. Unified design of the interface relationship of each system, thus forming the modern automatic control system of the rolling mill.
3) The main operation console is equipped with man-machine interface, which completes the rolling mill status screen display (winding tension value, current value, speed value and other main process parameters) and manual adjustment, rolling process parameter setting, fault alarm and printing report.
4) The main components and hydraulic pumps of the low-pressure hydraulic system adopt domestic high-quality products; the high-pressure AGC hydraulic system and key seals adopt imported products.

Sales Performance Table of Moran's 20 Hi Cold Rolling Mill

No	Year	Clients	Production Line Specification
1	2008	Guangdong LS steel Co.,Ltd.	1450mm 20 Hi reversible cold rolling mill machine
2	2006	Bd Iron and Steel Products Co., Ltd.	1450mm 20 Hi reversible cold rolling mill machine
3	2006	Fujian YD Group Co., Ltd.	850mm 20 Hi reversible stainless steel cold rolling mill machine
4	2006	Taiyuan LX stainless steel Co.,Ltd.	830mm 20 Hi reversible stainless steel cold rolling mill machine
