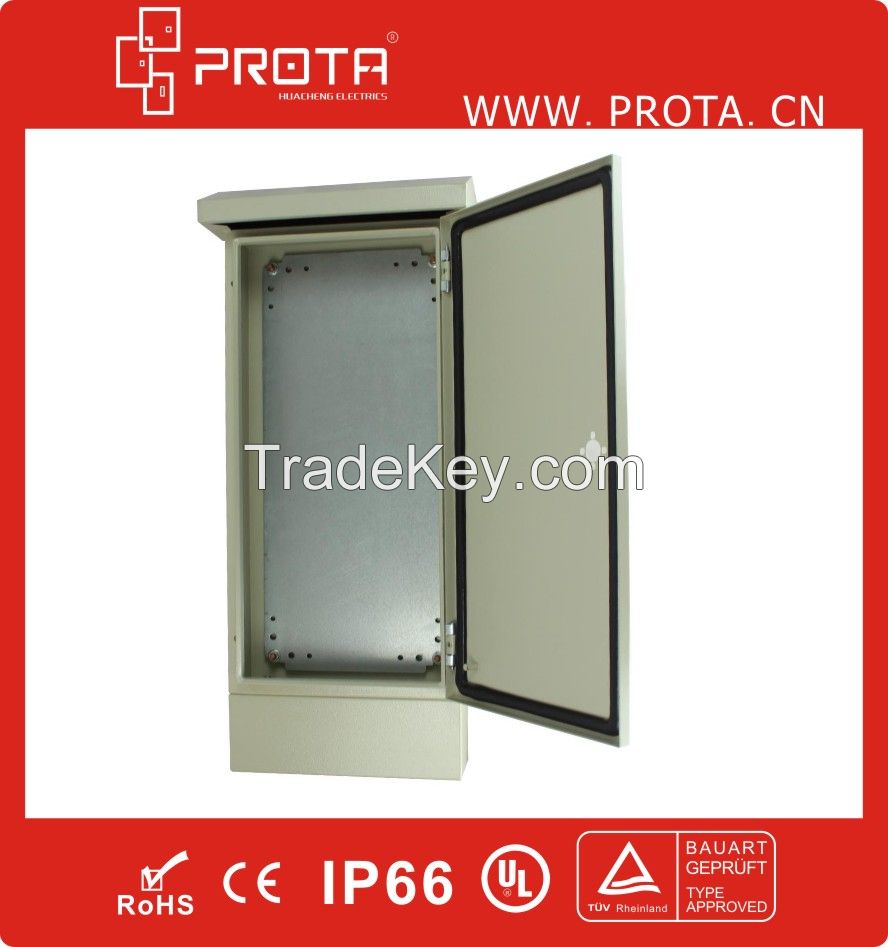

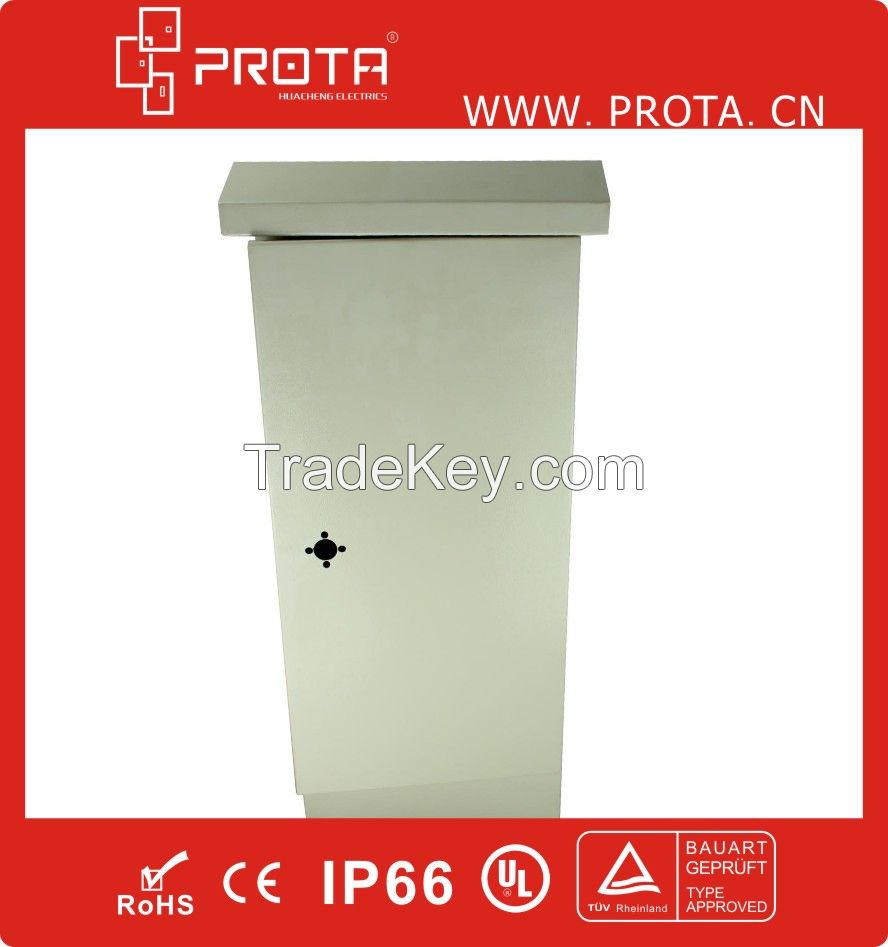

Outdoor Electric Metal Enclosure with Canopy

Product Description

Standard Configuration
1,Standard configuration: galvanized mounting plate, locking system, gland plate, foam sealing gasket ,canopy and fixing accessories.

2,Material and thickness: cold-rolled sheet steel

Door: 1.2mm or 1.5mm

Body: 1.5mm or 2.0mm

Mounting plate: 1.5mm or 2.0mm

When the enclosure is less than **0mm high, body and door is 1.2mm THK, mounting plate is 1.5mm THK; if over **0mm high, body and door is 1.5mm THK, mounting plate is 2.0mm THK.

3,Surface: epoxy thermosetting powder coating, textured finish

4,Color: RAL ***2, RAL ***5

5,protection degree: IP *6

Craftsmanship Feature

1,There are strengthening strips with pilot holes is welded to both  sides of the door by using the self-tapping M4 screws for the convenient installation (If the enclosure higher than **0mm)

2,The foam PU sealing gasket inside the door.

3,The slots design of the enclosure prevents dust and water entering into the enclosures plus the good coordination with foam sealing gasket, which supply a good protection of the enclosure.

4,There are 4 hanging holes in the back of the enclosure, which is very convenient for installation by the wall mounting brackets.

5,The door can be switched by both left and right side.
7,The specifical design which added a outdoor using canopy can prevent water pushing ,
