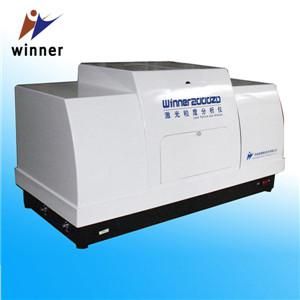

Winner 2000ZDE Intelligent Laser Particle Size Analyzer

FOB Price

Get Latest Price

30000 ~ 50000 USD / Set

1 Set Minimum Order

Country:

China

Model No:

winner2000ZDE

FOB Price:

30000 ~ 50000 USD / Set (Negotiable) Get Latest Price

Place of Origin:

China(mainland)

Price for Minimum Order:

30000 per Set

Minimum Order Quantity:

1 Set

Packaging Detail:

plywood box with foam inside

Delivery Time:

normally 2-10 days, according to your quantity

Supplying Ability:

10 Set per Month

Payment Type:

T/T

Product Group :

Intelligent Laser Particle Size Ana

Contact Now

Jinan Winner Particle Instrument Co. Ltd.

China

Free Member

Contact Person Mr. jason

Jinan, Shandong

Contact Now

Product Specification

Principle MIE scattering principle:MIE scattering principle
Measuring Range:0.1-300Î¼m
Light source:High performance He-Ne Laser (Î»= 632.8nm, P>
test speed:<2mins for each time

Product Description

Winner ***0ZDE Intelligent Laser Particle Size Analyzer

1. Overview:

Winner***0ZDE intelligent laser particle size analyzer, perform auto test, auto alignment, auto water supply, auto drainage, auto bubble removing, auto ultrasonic dispersion, auto cleaning etc., really realize one-key operation. It adopt full built-in sampling system, effectively prevents large particles sedimentation problems in the circulation pipeline, ensure good accuracy. It adopts comprehensive Laser diffraction particle size measurement principle with highly sensitive ring photoelectric detector improving the test accuracy greatly, Original designed unconstrained free fitting software technology, a true reflection of the particle size distribution, to ensure truth and accuracy of the test results. Therefore especially suits the laboratories of enterprises, colleges and universities and research institutes to use.
1. Main Specifications:

Model Name		Winner***0ZDE
Standard		ISO****1:9, GB/T*7.*8, Q/JWN*****9
Principle		MIE scattering principle
Measuring Range		0.****0μm
Channels Number		*9 PCS
Accuracy error		<1% ( CRM D*0 )
Repeatability error		<1% ( CRM D*0 )
Light source		High performance He-Ne Laser (λ= 2.8nm, P>2MW) Lifetime>**0hour
Dispersion Method	Ultrasonic	Frequency:0KHz Power:0W, Time: ≥1S
	Stir	Revolutions Speed: ****00RPM (Adjustable)
	Circulate	Rated Flow:8L/min Rated Power:*0W
	Sample Pool	Volume:**0mL
	Micro- Sample Pool	Volume: *0mL ( Available)
Operation Mode		Full automatic and manual control, freely choose
Output parameter		D0,D0,D0,D*0,S/V referent parameters
Optical Calibration System		Full automatic
Test Speed		<2mins for each time
Volume		L8cm×W9cm×H*6cm
Net Weight		*1Kg

2. Main Features:

1,Advanced design of light path:
A patented technique of Fourier transform of converging light released the scattered light at large-scattering-angles from the restriction of the aperture of the Fourier lens. The focal length is reduced to enhance the resolution of the instrument, and ring shaped of multi-element silicon photo-diode ensure gathering all the light signals of particles, highly improve the resolution.

2,Built-in dispersion units:
We carefully aligned the stirring set-up, the ultrasonic dispersing unit and the sample circulation pipes, and fixed them inside the instrument. Such a built-in design effectively prevents the inhomogeneous dispersion and sedimentation of big particles, which can be observed in the designs that these dispersing units are separated from the instruments, where the sample circulation pipes are therefore too long, The sample will be sufficiently dispersed.

3,Unconstrained fitting techniques:
The particle analysis software uses a unique unconstrained data fitting technique that we developed to obtain data of real particle size distribution, this is particularly important for researchers.

4,Micro sample chamber (optional):
The capacity of the sample chamber is as small as only *0ml. This helps with measuring expensive/precious samples, or samples difficult to be dispersed within medium.

5,Modern measurement control:(Intelligent SOP Operation)
Users can perform all measurement procedures by simply operating on the PC and have ideal results in a very short time.

6,User-friendly Operation:
manual mode and the automatic mode, freely choose, to measure according to the sample features. In some conditions (e.g. the sample have unknown features or there are special requirements for the measurements), users can make a test measurement in the manual mode first, and after having an idea of the sample features and the measurement conditions, measure the samples in the automatic mode.

7,Fully automatic light path alignment:
A precise four phase hybrid stepping motor automatically aligns the optical path and can adjust it at any moment, precision is up to 0.1um, This releases users from manual adjusting the optical path and improved accuracy and stability of the measurement results.

8,Quick measurements:
set automatic mode, all operation procedures are performed automatically,automatic water supply, automatic ultrasonic sample, stirring, circulation,background testing, sample testing,analysis , draining and cleaning, which significantly reduces the time for measurements, the full process only take 2 minutes.

9,Data analysis:
Errors in the data are rejected and the measurement results are automatically processed. Manual data processing is not necessary and the output is more standard.

3. Software Function

1, Analysis Mode
Free Distribution, R-R Distribution, Logarithm Normal Distribution, Mesh number classification etc. meet different demands of particle size statistic in different industries.

2,Statistic Method
Volume Distribution, Quantity Distribution

3,Statistic Comparison
Statistic Several Testing Results to compare and analyze
Get difference by compare test result of different batches of samples, samples before and after processing, and different time.
Have great practical significance to industrial raw materials quality control

4,User-defined Analysis
Figure out percentage according to the particle size
Figure out particle size according to the percentage
Figure out percentage according to the particle size range
Meet demands of representation of particle test in different industries.

5,Test Report
Word, Excel,Photo( Bmp), Text etc.

6,Multiple language Support
Chinese&English (Others are available)

7,Intelligent Operation Mode
Automatically control water inflow, dispersion,test and analysis.
Better Repeatability after remove human-factor

. Laser Particle Size Analyzer Application Field:

1.Non-metallic powders such as calcium carbonate, talcum powder, kaolin, zirconium silicate, wollastonite, graphite, silica powder, tourmaline, mica, barite, plaster, bentonite, diamond, quartz, diatomite, feldspar, calamite,clay, garnet, vermiculite, Titanium white power, etc.

2. Metallic powder such as aluminum powder, iron powder, magnesium powder, molybdenum powder, copper powder, zinc powder, other rare metal power and varied alloy powder, etc.

3. Pharmaceutical, agricultural pesticide, grinding particle, foodstuff, scientific research, teaching, cement, ceramic, glass, chemical industry, military industry, soil, toner,pigment, oil exploration, geological analysis, river silt and electronic particle, etc.

5. Winner***0ZDE Laser Particle Size Analyzer Patents Technology:

l Optical bench design is protected by patent No.- ZL ***4 2 ******0.8,
l Three dimensional-optical bench alignment system is protected by patent No.- ZL ***3 2 ******2.4.
l MIE scattering principle application patent is protected by patent No.- ZL ***3 2 ******1.4.
l Wet circulation installation is protected by patent No.-ZL***0 2 ******6.2.
