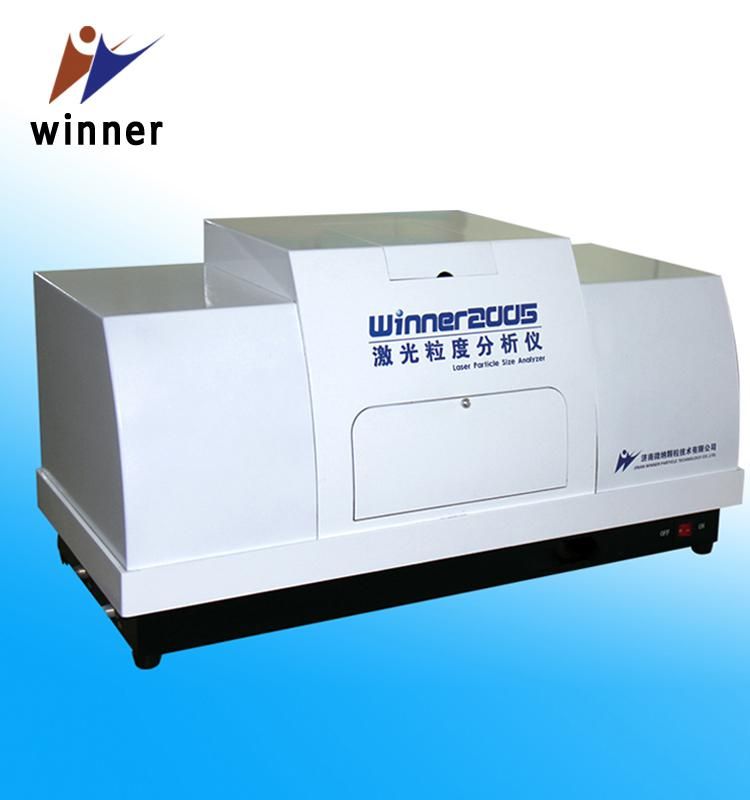

Winner-2008 Intelligent Laser Particle Size Analyzer

FOB Price

Get Latest Price

20000 ~ 30000 USD / Set ( Negotiable )

1 Set Minimum Order

Country:

China

Model No:

winner2008A

FOB Price:

20000 ~ 30000 USD / Set ( Negotiable )(Negotiable) Get Latest Price

Place of Origin:

China(mainland)

Price for Minimum Order:

20000 per Set

Minimum Order Quantity:

1 Set

Packaging Detail:

plywood box with foam inside

Delivery Time:

2-10 days, according to the stock and your quantity

Supplying Ability:

10 Set per Month

Payment Type:

T/T

Product Group :

Intelligent Laser Particle Size Ana

Contact Now

Jinan Winner Particle Instrument Co. Ltd.

China

Free Member

Contact Person Mr. jason

Jinan, Shandong

Contact Now

Product Specification

Model Name:Winner2008A
Principle:Principle
Measuring Range:0.01-2000Î¼m
Channels Number:127
Operation Mode:Full automatic/ manual control, freely choose
Sample Pool:Volume:350mL

Product Description

Winner-**08 Intelligent Laser Particle Size Analyzer
Brief introduction:
Winner***8A Intelligent liquid dispersion laser particle size analyzer adopt MIE scattering principle, measure size is from 0.*1 to ***0 micron, Which offer reliable and repeatable particle size analysis for a diverse range of applications.It use dual-beam& multiple spectral detection systems and side light scatter test technology to significantly improve precision and performance of test, on behalf of the domestic advanced level in the field.

Main Specifications:

Model Name			Winner8A*	Winner8D*
Standard			ISO****1:9, GB/T*7.*8, Q/JWN*****9
Principle			MIE scattering theory
Measuring Range			0.******0μm	0.******0μm
Channels Number			**7	**7
Accuracy error			<1% (Deviation of D*0 on national standard sample)
Repeatability error			<1% (Deviation of D*0 on national standard sample )
Light source			High performance He-Ne Laser (λ= 2.8nm, P>2MW) Lifetime>**0hours
Dispersion Method		Ultrasonic	Frequency:0KHz Power:5W, Time: ≥1S
		Stir	Revolutions Speed: ****0RPM (Adjustable)
		Circulate	Rated Flow:8L/min Rated Power:*0W
		Sample Pool	Volume:**0mL
		Micro- Sample Pool	Volume: *0mL ( Available)
Operation Mode			Full automatic/ manual control, freely choose
Optical bench alignment system			Full automatic,precision is up to 0.1um
Software function	Analysis mode		Free Distribution, R-R Distribution, Logarithm Normal Distribution, Mesh number classification etc.
	Statistic Method		Volume Distribution, Quantity Distribution
	Statistic Comparison		Several Testing Results of samples Different batches of samples testing result, Samples before and after processing, Test result of samples in different time.
	User-defined Analysis		Figure out percentage according to the particle size Figure out particle size according to the percentage Figure out percentage according to the particle size range Meet demands of representation of particle test in different industries
	Test Report		Word, Excel,Photo( Bmp), Text etc
	Multiple-language Support		Multiple language Support
	Intelligent operation		Automatically control water inflow, dispersion,test and analysis.Better Repeatability after remove human-factor
Testing speed			<2min/time
Outer dimension			L6cmW2cmH*0cm
Net weight			*5Kg

Main Features:

1)Winner Patent -Optical path design
Converging light Fourier transform light patented technology, make scattering light not be restricted to lens aperture. Double spectrum design make its precision achieves from 0.*1um to ***0μm,and Dual-laser orthogonal light make use of the semiconductor auxiliary laser extend the test angle from *5 degree to **5 degree, ensure receive all the angles of signals.

2) Expand Size Range
Winner***8A measurement range significantly expanded to 0.*1um, particularly suitable for small samples of the user, the sub micron particle test results reached the international level

3)Full built-in dispersion system
The ultrasonic dispersion, mechanical stirring and circulation channel reasonable integrated in the interior of the instruments, ensure the uniform dispersion and distribution of particles in the testing process, effectively avoid uneven distribution, large particle deposition phenomenon caused by long pipe line of outside dispersion system , to ensure the accuracy of the test results.

4)Intelligent Operation mode
With intelligent automatic mode of operation, to achieve a key test, as long as according to the prompt addition of sample, click the "test", all processes including water-supply, dispersion, circulation, testing, cleaning, data record, data analysis, save and print are automatically completed, not only reduce the testing workload, but also eliminate the interference of human factors, to further improve the accuracy and authenticity of testing results.

5)Automatic Optical path alignment system

The precision of four hybrid stepping motor in the automatic system of optical components, micro precision of 0.1um, the instrument of light path is always at its best to eliminate manually on the light path and the troubles and difficulties but also enhance the accuracy and stability of test results.

6)Authoritative calibration method
In the entire test range using the national standard materials for calibration, only a year calibration once the instrument can. Calibration method is simple and quick.

7) Unconstrained free fitting technique

Winner original unconstrained free fitting technology, particle size analysis is not affected by any functional constraints, can be a true reflection of the distribution of particles.

Country:	China
Model No:	winner2008A
FOB Price:	20000 ~ 30000 / Set ( Negotiable ) (Negotiable) Get Latest Price
Place of Origin:	China(mainland)
Price for Minimum Order:	20000 per Set
Minimum Order Quantity:	1 Set
Packaging Detail:	plywood box with foam inside
Delivery Time:	2-10 days, according to the stock and your quantity
Supplying Ability:	10 Set per Month
Payment Type:	T/T
Product Group :	Intelligent Laser Particle Size Ana
