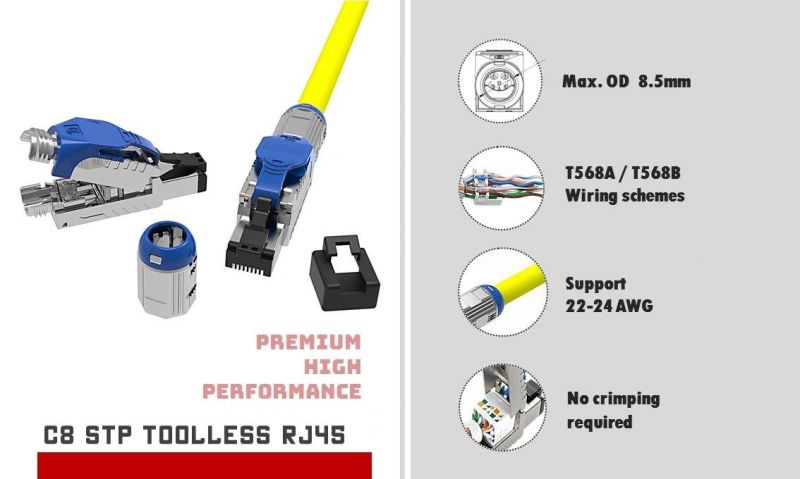

Cat.8 STP Field Termination Tool Free Plug

Product Description

CRXCONEC new cat 8 RJ45 toolless plug solution bring you a new prospect of high transmission speed of 40G. Cat.8 is characterized to 2 GHz and specified for 30 meters, 2-connector channels which is intended as a data center application. CRXCONEC cat. 8 solution is tested based on ANSI/TIA-568.2-D, approved in June 2018 for Category 8 Channels and also are independently certified by reputed laboratories GHMT in Germany. Our cat.8 field termination plug with optional design, one is straight one and the other one is short body with 5 angled direction which can help the deployment of IoT and sensor technology, such as IP cameras, automatic building control system, and Wi-Fi access points.


Features

• This toolfree plug provides outstanding network cabling performance and also meet PoE plus (IEEE802.3at) requirement.
• Fast and dependable installation.
• Long latch design is very easy to plug in and out for high density application.
• The screw-fit boot can be fitted with cable outer diameter from 6.0 to 8.5mm which can apply for 22AWG to 26AWG cable.
• A dust cover will be included as a part of this plug, it provides the protection under IP20 level.
•
•
•
• Structured Cabling Category 8 solution combines with Cat.8 ethernet keystone jack. Cat.8 Field termination plug and Cat.8 ethernet patch cord cable.
•
• Applications

  Crxconec CAT.8 Shielded tool free RJ45 connector could apply with different outlet such as keystone Jack and patch panel, faceplate and surface mount box, support 2000MHZ(2GHZ )frequency. Mainly used in the Data center or indoor working area, also suitable for HDbaseT application to carry the power & video and support long distance!



  OEM Availability

• CRXCONEC can provide OEM option to build your own toolles plug, the OEM options included to make your own latch design, and also you can put your logo on it.



  Material

• 1. Extractor: PC, UL 94V-2, options color.
  2. Housing: Zinc die-Casting with nickel plated.
  3. RJ45 plug:
  3-1 Housing: PC, UL 94V-2, black color.
  3-2 Contact Material: Phosphor bronze with 100 micro-inch nickel plated.
  3-3 Contact Finish: Min. 50 micro-inch gold plated on surface contact area.
  4. Cover: Zinc die-casting with nickel plated.
  5. Wire Management Bar: PC+glass fiber, white color, UL94-V2.
  6. IDC:
  6-1 Housing: PC, white color, UL94-V2
  6-2 Terminal: Titanium copper with tin plated.
  7. Grounding Contact: Zinc die-casting with nickel plated.
  8. Boot:
  8-1 Housing: Zinc die-casting with nickel plated.
  8-2 SR: PC, UL 94V-2, Black color.
  8-3 CAP: PC, UL 94V-2, Black color.
  9. PCB, UL 94-V0.
  10. Copper foil tape.

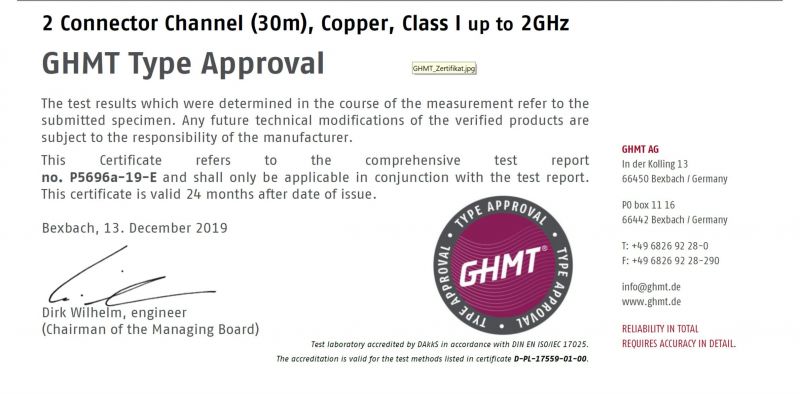

  GHMT Verified Cat.8 Copper System Certification

  CRXCONEC Cat.8 channel link are independently certified by reputed laboratories GHMT in Germany, based on 2 Connector channel under 30M and follow the standard of Class I ISO/IEC TR 11801-9901 Ed.1.0 (2014-08).


  Purchase Information

  Price Term: FOB Taiwan or FOB Ningbo
  Payment Term: T/T, credit card, or pay pal
  Lead Time: 4 weeks after order confirmation

•
